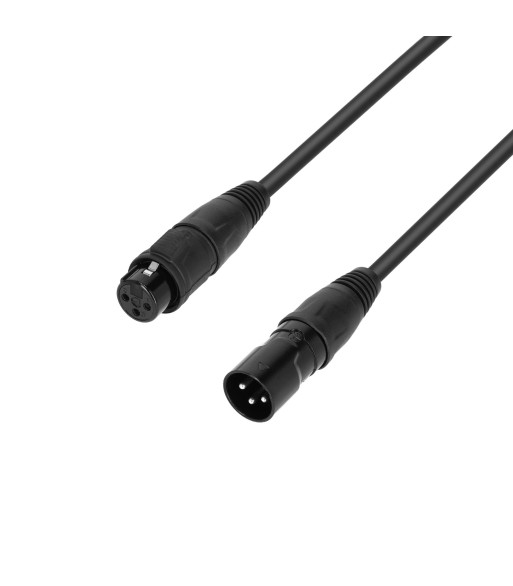

. DMX Cable - Rean® XLR 3-pole IP65 - 5 m .
DMX Cable | Rean® XLR 3-pole IP65 | 5 m
search
  • DMX Cable | Rean® XLR 3-pole IP65 | 5 m
  • DMX Cable | Rean® XLR 3-pole IP65 | 5 m

DMX Cable - Rean® XLR 3-pole IP65 - 5 m

149,00 kr.
Inkl. moms
4 STAR DMF 0500 IP65
  • High Flexible AES/EBU and DMX-conformant oxygen free cable with professional Heavy-duty 3-Pin connector suitable for outdoor use
  • Dust- and waterproof grade IP65
Antal
På fjernlager

Ref: K4DMF0500IP65

  • Professional DMX, AES/EBU cable from our 4 STAR SERIES
  • With high-quality XLR connectors from Rean® (A brand of the Neutrik® group)
  • Optimum quality thanks to the use of silver-plated contacts
  • The cable is very flexible yet robust thanks to its soft PVC jacket and narrow diameter
  • For professional use in the studio or on stage

Product typePlugs and Connectors
Product typePlugs and Connectors
Product typeBulk Cable
TypeDMX & AES/EBU Cable
TypeXLR Connectors
TypeXLR Connectors
ColorBlack
Overall diameter6.5 (+/- 0.2 ) mm
Poles3
Poles3
Gendermale
Genderfemale
Center conductor cross section0.34 mm²
Center conductor materialCopper, OFC
Cable diameter3.5 - 8 mm
Cable diameter3.5 - 8 mm
Center conductor construction7 x 0.25 mm
Number of internal conductors2
Contactsgold plated
Contactsgold plated
Connection typesolder contacts
Connection typesolder contacts
Shield materialcopper
ShieldBraided shielding
Colorsilver, black + orange
Colorsilver, black + orange
Housingdie-cast zinc
Housingdie-cast zinc
Line resistance53 Ohm(s)
Length70.8 mm
Capacitance65 pF/m
Length73.6 mm
Diameter16,8 mm
Jacket materialPVC
Diameter18.9 mm
Weight0,05 kg
Weight0,02 kg
Weight0,02 kg

General

Cable length5 m
Cable jacketPVC (Polyvinyl chloride)
Cable diameter6.5 mm
Cable colourBlack

Plugs

Connector type plug 1XLR 3-pole female
Model name plug 1Adam Hall K4CXF3IP65
Connector type plug 2XLR 3-pole male
Model name plug 2Adam Hall K4CXM3IP65

Line

Conductor materialOxygen-free copper (OFC)
Conductor diameter2 x 0,34 mm²
AWG22
Capacity/m65 pF
Conductor impedance/km53 Ohm

Environmental

Protection classIP65
Temperature range-20 - 70 °C

Dimensions & weight

Weight230 g
Adam Hall Cables
K4DMF0500IP65

Specifikke referencer
