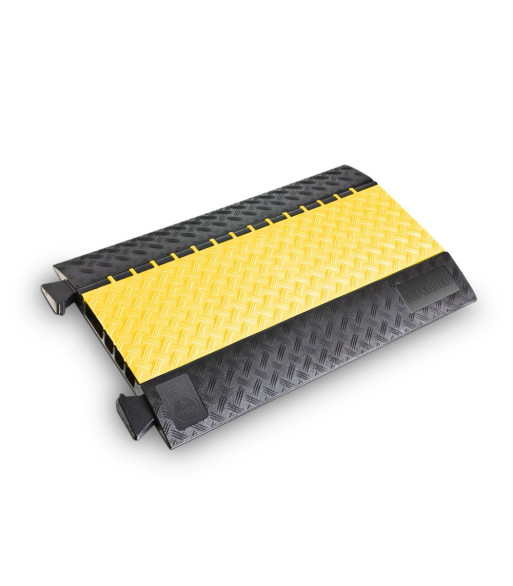

Defender Cable Protector 4-channel LUX

2.189,00 kr.
Inkl. moms
MIDi 4C LUX

The ultimate solution for protecting your cables and for preventing people from tripping. The innovative cable crossovers in the DEFENDER® LUX Series have highly transparent, yellow-tinted lids in which LED light tubes can be inserted parallel to cables and other pipes. Based on state-of-the-art technology, DEFENDER® LUX cable protectors have been developed in collaboration with event organisers and operators of large halls and festival venues and ensure the highest possible level of safety and visibility in the dark, both indoors and outdoors. For more information, please refer to our price list for DEFENDER® LUX cable protectors, or contact your Defender representative directly.

3 medium-sized cable channels _ 1 large channel for fire hoses

The DEFENDER® MIDI 4C cable protectors has three cable channels measuring 34 x 36 mm plus a wide hose channel (80 x 36 mm), making it the ideal solution if a pressure hose has to run parallel to individual sound, light and/or network cables. With its integrated connectors, flat profile and a capacity of 5 tonnes on an area of 25 x 30 cm (like the DEFENDER® MIDI system), MIDI 4C cable protectors are perfect for heavy traffic, construction sites, warehouses, shopping centres, trade shows and exhibitions, as well as carnival and music events.

DEFENDER® LUX cable protectors can be used with commercially available light tubes. Light tubes with a so-called neon effect are particularly recommended since the individual LEDs are less visible and this provides particularly homogeneous lighting. For outdoor use, please take care to ensure the appropriate IP classification of the light tube. The use of LED strips and other unidirectional light-emitting products or fairy lights is not recommended.

Label your cable protectors! All DEFENDER® cable protectors can be customised with your company logo from a minimum order of just 30 units per model. The format requirements are available in the download area. Don_t hesitate to contact us.

Antal
På fjernlager

Ref: 85301LUX

  • The standard for event technology, industry, and all public applications
  • Highly transparent yellow-tinted lid for use in the dark with light tubes
  • Heavy-duty,non-slip all-round cable protector made of black, recyclable polyurethane with built-in carrying handles
  • Yellow polyurethane lid with high warning effect and secure closure
  • Patented, self-cleaning lid hinge
  • 4 channels: 1 channel 80 x 36 mm (suitable for C pressurised hoses) and 3 channels 34 x 36 mm
  • Load bearing capacity approx. 5 t / 25 x 30 cm
  • Fire resistance class B2 (DIN 4102)
  • Resistant to oil, acids, solvents, and petrol
  • Dimensions 87 x 53.8 x 5.5 cm; Weight 13.5 kg
  • Reliable protection for cables, hoses, and personnel for indoor and outdoor use
  • End ramps for secure cable inlet and exit as accessories

Product typeCable Protectors
Type4 Channels
Length870 mm
Width538 mm
Height55 mm
Channels4
Width channel 134 mm
Height channel 136 mm
Width channel 234 mm
Height channel 236 mm
Width channel 334 mm
Height channel 336 mm
Width channel 480 mm
Height channel 436 mm
MaterialPolyurethane
Max loadApprox. 5 t on a surface area of 25 x 30 cm
Chemical resistanceOil-resistant
Chemical resistancePetrol-resistant
Hardness range88 Shore ± 4 A Shore
Fire protection classB2
Temperature range-30°C to 60°C °C
Weight13,4 kg
Defender
85301LUX
