. Defender Cable Protector 2 + 4 channels .
Defender Cable Protector 2 + 4 channels
search
  • Defender Cable Protector 2 + 4 channels
  • Defender Cable Protector 2 + 4 channels
  • Defender Cable Protector 2 + 4 channels
  • Defender Cable Protector 2 + 4 channels

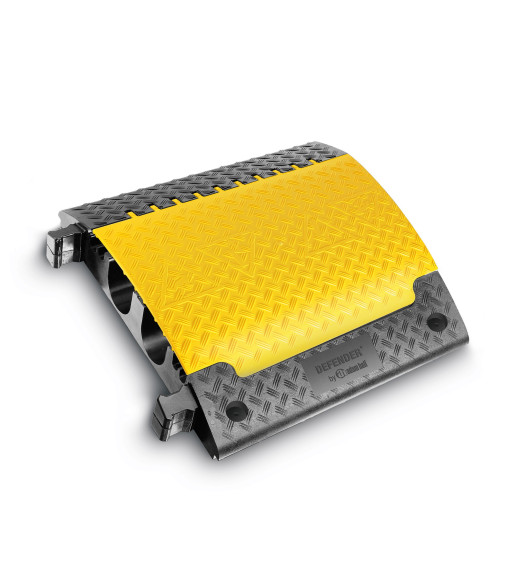

Defender Cable Protector 2 + 4 channels

3.539,00 kr.
Inkl. moms
ULTRA L 22 extra-large cable crossovers _ the heavy-duty giant

Defender® Ultra L 2 heavy-duty cable crossovers are designed for the most demanding applications and feature two extra-large cable channels of 108 x 110 mm plus four channels with a diameter of 25 mm, as well as integrated connector plugs for easy coupling of several elements. The load bearing capacity is approx. 5 tons on a 25 x 30 cm surface area. This makes Ultra L 2 cable crossovers the ideal solution for heavy traffic, construction sites, warehouses, trade shows, carnivals and music events, as well as other applications involving particularly heavy use. They are equipped with all essential fixation holes for street installation.

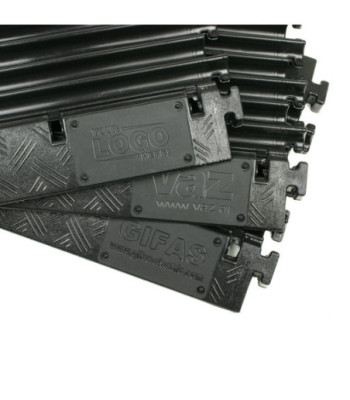

Label your cable crossovers! All Defender cable crossovers can be customised with your company logo from a minimum order of just 30 units per model. The format requirements are available in the download area. Don_t hesitate to contact us.

Antal
På fjernlager

Ref: 85601

  • Heavy duty cable protector made of black, recyclable polyurethane for demanding applications

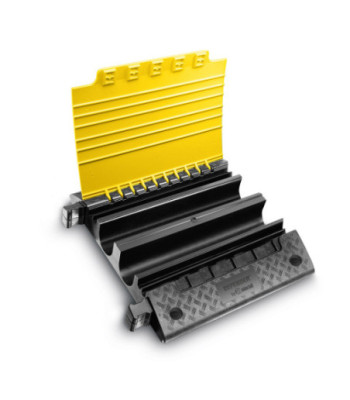

  • Non-slip, yellow polyurethane lid with high warning effect and secure closure
  • Patented, self-cleaning lidmaker hinge
  • 6 channels: 2 channels 108 x 110 mm, 4 channels 25 mm in diameter
  • Two channels suitable for A-suction hoses and multipin connectors
  • Load bearing capacity approx. 5 t / 25 x 30 cm
  • Fire resistance class B2 (DIN 4102)
  • Resistant to oil, acids, solvents, and petrol
  • Dimensions 70 x 76.6 x 12 cm
  • Weight 28.295 kg
  • Reliable protection for cables, hoses, and personnel for indoor and outdoor use
  • 4 fixation holes for street mounting with 10 mm Ø
  • TÜV SÜD certified

Product typeCable Protectors
Type6 Channels
Length705 mm
Width765 mm
Height120 mm
Channels6
Width channel 125 mm
Height channel 125 mm
Width channel 225 mm
Height channel 225 mm
Width channel 3108 mm
Height channel 3110 mm
Width channel 4108 mm
Height channel 4110 mm
Width channel 525 mm
Height channel 525 mm
Width channel 625 mm
Height channel 625 mm
MaterialPolyurethane
Max loadApprox. 5 t on a surface area of 25 x 30 cm
Chemical resistanceOil-resistant
Chemical resistancePetrol-resistant
Hardness range88 ± 4 Shore
Fire protection classB2
Temperature range-30 - 60 °C
Weight27,4 kg
Special feature4 fixation holes for street mounting with 10mm Ø
Defender
85601
