. Defender Cable Protector 3-Channel .

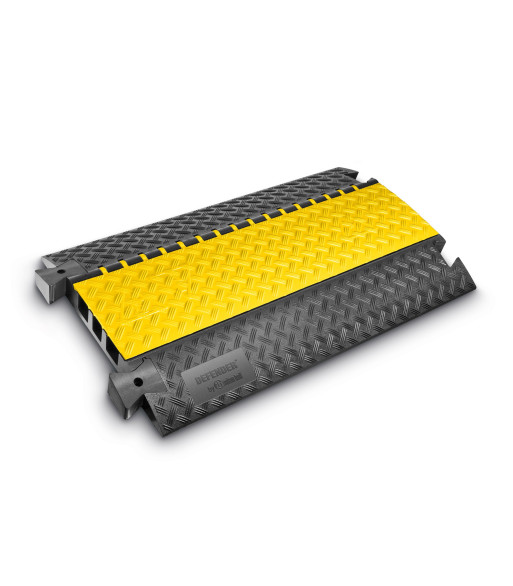

Defender Cable Protector 3-Channel
search
  • Defender Cable Protector 3-Channel
  • Defender Cable Protector 3-Channel
  • Defender Cable Protector 3-Channel
  • Defender Cable Protector 3-Channel

Defender Cable Protector 3-Channel

2.939,00 kr.
Inkl. moms
33 Big Channels - Most Popular

Featuring a 73 mm profile, 45° curve and end ramps with detachable dovetail connectors the Defender® 3 cable protection system provides versatile cable routing and safe crossing for vehicles and pedestrians. With 3 medium large channels, built-in handles for easy portability and a 5 t per 25 x 30 cm load capacity the 73 mm profile Defender® 3 cable protectors are the perfect all-round choice for a wide variety of applications including heavy wheeled traffic, construction sites, warehouses, carnivals, fairs, trade shows, exhibitions, shopping malls and music events.

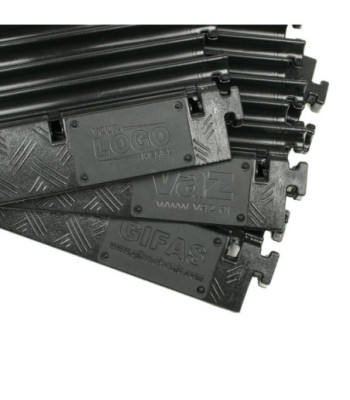

Label your cable protector! Customise the Defender cable protector with your company logo for orders ex 30 pieces for each product. You will find the format requirements in the download pool above the text. Feel free to contact us for more information.

Antal
På fjernlager

Ref: 85002

  • Heavy-duty,non-slip all-round cable protector made of black, recyclable polyurethane with built-in carrying handles

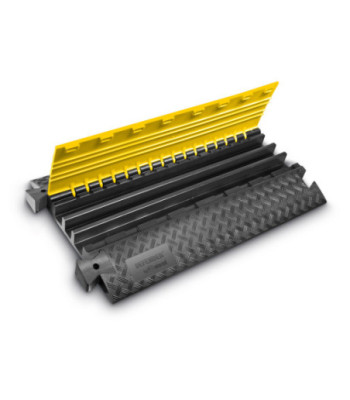

  • Yellow polyurethane lid with high warning effect and secure closure
  • Patented, self-cleaning lid hinge
  • 3 channels: 1 channel 45 x 50 mm, 2 channels 52 x 49 mm
  • Load capacity approx. 5 t / 25 x 30 cm
  • Fire protection class E according to DIN EN 13501-1 (B-s1 pending)
  • Resistant to oil, petrol and short-term contact with solvents
  • Dimensions 105 x 60.5 x 7.3 cm; Weight 23.7 kg
  • Reliable protection for cables and personnel for indoor and outdoor use
  • Curves, end ramps, and connector plugs are available as accessories
  • TÜV SÜD certified

Product typeCable Protectors
Type3 Channels
Width605 mm
Height75 mm
Length1005 mm
Channels3
Width channel 152 mm
Height channel 149 mm
Width channel 245 mm
Height channel 250 mm
Width channel 352 mm
Height channel 349 mm
MaterialPolyurethane
Max loadApprox. 5 t on a surface area of 25 x 30 cm
Chemical resistanceOil-resistant
Chemical resistancePetrol-resistant
Chemical resistanceShort-term contact with solvents
Hardness range88 Shore ± 4 Shore
Fire protection classB2
Temperature range-40 to +70 °C
Weight23,01 kg
Special featureAvailable also in B1
Special featureInclusive 2 connector plugs
Defender
85002

Specifikke referencer
