Defender Cable Protector 2 + 4 channels LUX

3.919,00 kr.
Inkl. moms
ULTRA L 2 LUX

The ultimate solution for protecting your cables and for preventing people from tripping. The innovative cable crossovers in the Defender LUX Series have highly transparent, yellow-tinted lids in which LED light tubes can be inserted parallel to cables and other pipes. Based on state-of-the-art technology, Defender LUX cable crossovers have been developed in collaboration with event organisers and operators of large halls and festival venues and ensure the highest possible level of safety and visibility in the dark, both indoors and outdoors.. For more information, please refer to our price list for Defender LUX cable crossovers, or contact your Defender representative directly.

Cable protector, 4-channel

Defender® Ultra L heavy-duty cable crossovers are designed for the most demanding applications and feature two extra-large cable channels (two channels of 120 x 113 mm plus two channels of 33 x 50 mm) as well as integrated connector plugs for easy coupling of several elements. Defender® Ultra L heavy-duty cable crossovers are designed for the most demanding applications and feature two extra-large cable channels (two channels of 120 x 113 mm plus two channels of 33 x 50 mm) as well as integrated connector plugs for easy coupling of several elements. The load-bearing capacity is approx. 5 tons on a 25 x 30 cm surface area. This makes Ultra L cable crossovers the ideal solution for heavy traffic, construction sites, warehouses, trade shows, carnival and music events, as well as other applications involving particularly heavy use.

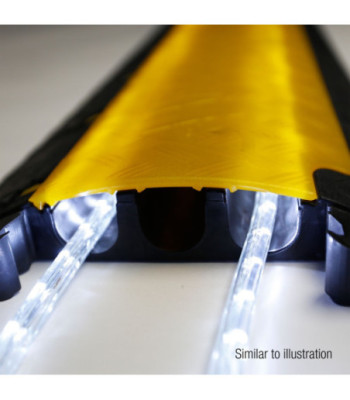

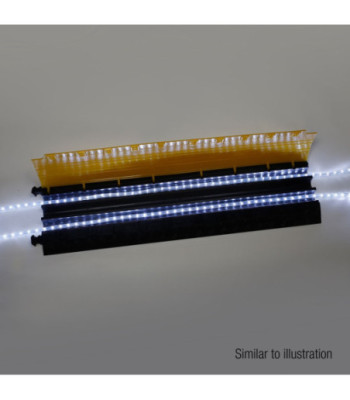

Defender LUX cable crossovers can be used with commercially available light tubes. Light tubes with a so-called neon effect are particularly recommended since the individual LEDs are less visible and this provides particularly homogeneous lighting. For outdoor use, please take care to ensure the appropriate IP classification of the light tube. The use of LED strips and other unidirectional light-emitting products or fairy lights is not recommended.

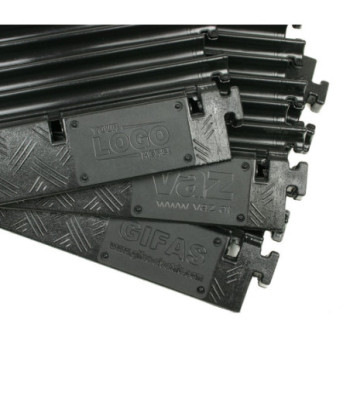

Label your cable crossovers! All Defender cable crossovers can be customised with your company logo from a minimum order of just 30 units per model. The format requirements are available in the download area. Don_t hesitate to contact us.

Antal
På fjernlager

Ref: 85601LUX

  • Heavy-duty cable crossover made of black, recyclable polyurethane for demanding applications

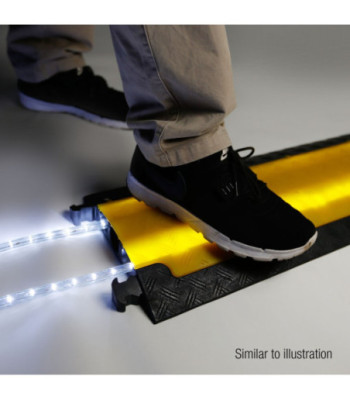

  • Highly transparent yellow-tinted lid for use in the dark with light tubes
  • Non-slip, yellow polyurethane lid with high warning effect and secure closure
  • Patented, self-cleaning lid hinge
  • 6 channels: 2 channels 108 x 110 mm, 4 channels 25 mm in diameter
  • Two channels suitable for A-suction hoses and multipin connectors
  • Load bearing capacity approx. 5 t / 25 x 30 cm
  • Fire resistance class B2 (DIN 4102)
  • Resistant to oil, acid, petrol and short-term contact with solvents
  • Dimensions 70 x 76.6 x 12 cm
  • Weight 28.295 kg
  • Reliable protection for cables, hoses, and personnel for indoor and outdoor use
  • 4 fixation holes for street mounting with 10 mm Ø.
  • TÜV SÜD certified

Product typeCable Protectors
Type6 Channels
Length705 mm
Width765 mm
Height120 mm
Channels6
Width channel 125 mm
Height channel 125 mm
Width channel 225 mm
Height channel 225 mm
Width channel 3108 mm
Height channel 3110 mm
Width channel 4108 mm
Height channel 4110 mm
Width channel 525 mm
Height channel 525 mm
Width channel 625 mm
Height channel 625 mm
MaterialPolyurethane
Max loadApprox. 5 t on a surface area of 25 x 30 cm
Chemical resistanceOil-resistant
Chemical resistancePetrol-resistant
Chemical resistanceShort-term contact with solvents
Hardness range88 Shore
Fire protection classB2
Temperature range-30°C to 60°C °C
Weight27,4 kg
Special feature4 fixation holes for street mounting with 10mm Ø
Defender
85601LUX
