. Defender Cable Protector 4-Channel .
Defender Cable Protector 4-Channel
search
  • Defender Cable Protector 4-Channel
  • Defender Cable Protector 4-Channel
  • Defender Cable Protector 4-Channel
  • Defender Cable Protector 4-Channel

Defender Cable Protector 4-Channel

1.989,00 kr.
Inkl. moms
MIDI 4C3 medium-sized cable channels _ 1 large channel for fire hoses

The DEFENDER® MIDI 4C cable protector has three cable channels measuring 34 x 36 mm plus a wide hose channel (80 x 36 mm), making it the ideal solution if a pressure hose has to run parallel to individual sound, light and/or network cables. With its integrated connectors, flat profile and a capacity of 5 tonnes on an area of 25 x 30 cm (like the DEFENDER® MIDI system), MIDI 4C cable protectors are perfect for heavy traffic, construction sites, warehouses, shopping centres, trade shows and exhibitions, as well as carnival and music events.

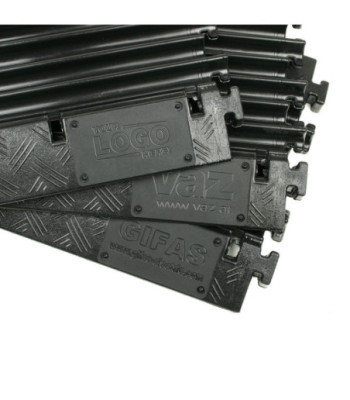

Label your cable crossovers! All DEFENDER® cable protectors can be customised with your company logo from a minimum order of just 30 units per model. The format requirements are available in the download area. Don_t hesitate to contact us.

Antal
På fjernlager

Ref: 85301

  • The standard for event technology, industry and all public applications
  • Heavy duty non-slip all-round cable protectors made out of black, recyclable polyurethane with integrated carrying handles
  • Yellow polyurethane cover with high warning effect and secure locking
  • Self-cleaning hinged cover
  • 4 channels: 1 channel 80 x 36 mm (for C-pressure hoses) and 3 channels 34 x 36 mm
  • Load capacity approximately 5 t/ 25 x 30 cm
  • Fire protection class B2 (DIN 4102)
  • Resistant to oil, acid, petrol and short-term contact with solvents
  • Dimensions 87 x 53.8 x 5.5 cm; weight 13.5 kg
  • Reliable cable, hose and personal protection for indoor and outdoor use
  • End caps for safe cable entry and exit available as accessories
  • TÜV SÜD certified

Product typeCable Protectors
Type4 Channels
Length870 mm
Width538 mm
Height55 mm
Channels4
Width channel 134 mm
Height channel 136 mm
Width channel 234 mm
Height channel 236 mm
Width channel 334 mm
Height channel 336 mm
Width channel 480 mm
Height channel 436 mm
MaterialPolyurethane
Max loadApprox. 5 t on a surface area of 25 x 30 cm
Chemical resistanceOil-resistant
Chemical resistancePetrol-resistant
Chemical resistanceShort-term contact with solvents
Hardness range88 Shore ± 4 A Shore
Fire protection classB2
Temperature range-30°C to 60 °C
Weight13,4 kg
Defender
85301

Specifikke referencer
