NEUTRIK PowerCon t/230V - NAC-3MPA1

49,95 kr.
Inkl. moms
NEUTRIK POWERCON panel jack
  • For mains connection up to ∿ 250 V/20 A
  • Version for mains input
  • Connections for ground, phase and neutral conductor
  • Self-extinguishing according to UL 94V-0

Antal
Sidste elementer på lager

Ref: NAC-3MPA1

Descriptionpanel jack
TypeNEUTRIK POWERCON
Quantity1
Featureslatching device Quick Lock
Colour/colour codingblue/black
Power rating∿ 250 V/20 A
Insulating resistance> 100 M_
Dielectric strengthDC 4 kV
CertificationUL, cUL, VDE, Electroswiss
Pole number2+PE
Cable inlet-
Suitable cable cross section-
Connectionblade terminals, 4-8 mm
Strain relief-
Cable bending protection-
Stereo-
Mono-
Switches-
Materialsilver-plated bronze contacts, plastic
Central fixing-
Contact type-
No. of contacts-
Contact width-
Contact distance-
Admiss. ambient temp.-30-+80 °C

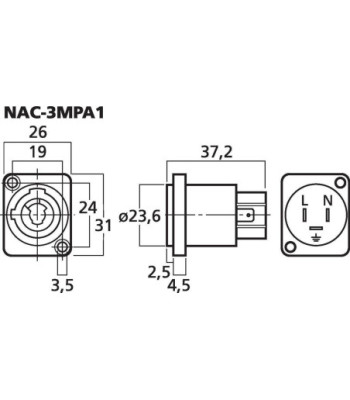

Dimensions26 x 31 x 37.2 mm
Diameter-
Length37.2 mm
Weight12 g
Other features-
NEUTRIK
NAC-3MPA1
1 Enhed
