19" Power Strip 1U 6-way...
- Mountable Power Strip from our 19" PDU range
- With 3 separate power circuits
- 3 x 2 Schuko sockets rotated 45°
- With 2-way adjustable mounting brackets
- 2 m PVC cable with CEE 16A plug / 400 V per phase
På fjernlager
.

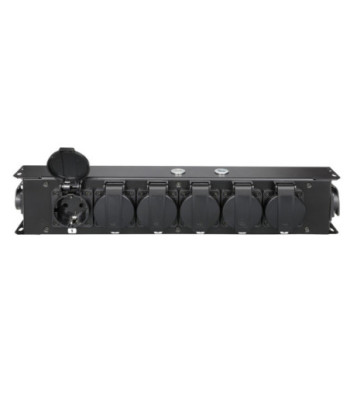

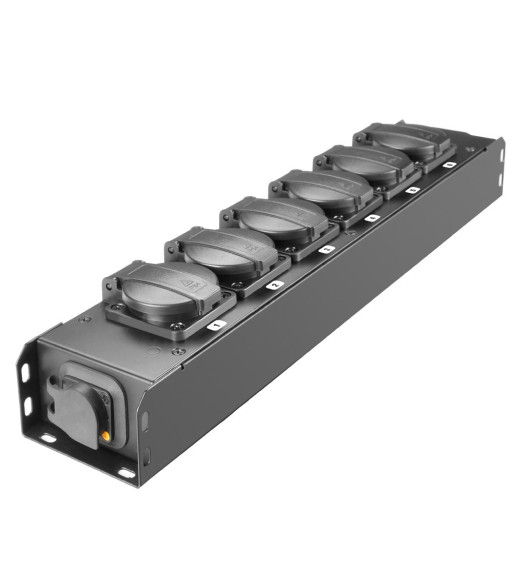

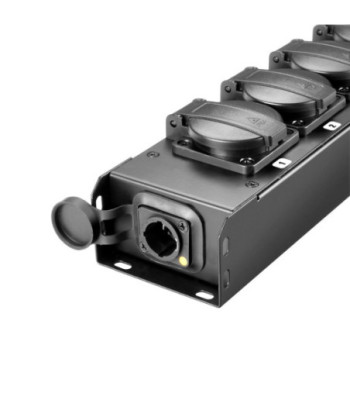

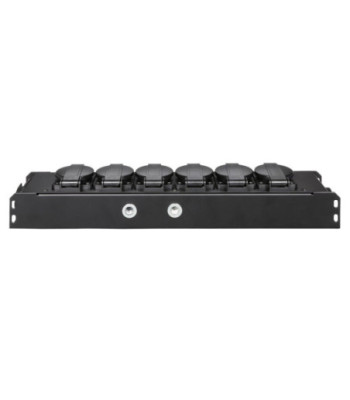

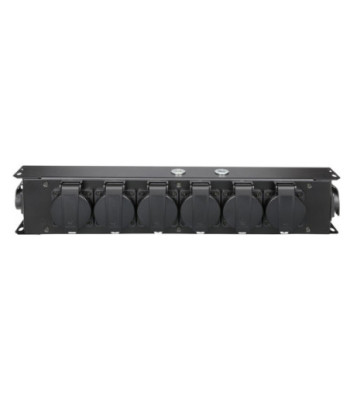

The PROPORT 6T is the ideal power strip for tidy and specific power distribution on stage, on trusses and in equipment rigs. Its robust metal housing features 6 protective contact socket outlets with hinged lids, a black/yellow power I/O for power supply and transmission, and two M10 threaded inserts for mounting and fixed installation.
Ref: AHPROPORT6T
Product type | Power strips |
Type | not 19 inch |
Number of outlets | 6 x Schuko folding cover + Power Twist TR1 I/O |
Number of outlets (Earthing contact / IEC 7/4) | 6 x Schuko folding cover + black and yellow power I / O |
Power input | Power Twist TR1 I/O |
Output parallel to input | Black/yellow power out |
Operating voltage | 230 V |
Max. current | 16 A |
Cabinet material | Steel |
Color | Black |
Protection class | IP20 |
Width | 399 mm |
Height | 65 mm |
Depth | 78 mm |
Other features | Power distribution on stages and in gear rigs |
Other features | 2 M10 inserts |
Other features | gum-rubber cap |
Weight | 1,35 kg |
På fjernlager
På fjernlager
In addition to providing a central power supply to racks and installations, the 19" AH Power Conditioner with only 1 ns response time offers effective protection against power surges and spikes. High frequency filters ensure a high interference immunity and prevent interference with connected devices. The 8 female power sockets on the back panel are activated with a large rocker switch with integrated status LED; on the front panel, the AH Power Conditioner also has an unswitched power socket and an easily resettable 10 A automatic circuit breaker. The sturdy construction and the rugged 1U steel housing provide you with a reliable and long-lasting operation in mobile and stationary applications.
All AH power conditioners are supplied with four IEC connection cables.
På fjernlager
The IP44 rated 8747 IP 5 features five type F grounded outlets and 1.4 m power cord with standard earthing contact CEE 7/7 power plug for additional reach and flexibility. It is suitable for general outdoor use and protected against solid objects over 1mm in size and sprays of water.
På lager
The 8747X3 features three type F grounded outlets, with a 3 m power cord for additional reach and flexibility.
På fjernlager
The IP44 rated 8747 IP 3 features 3 type F grounded outlets and 1.4 m power cord with standard earthing contact CEE 7/7 power plug for additional reach and flexibility. It is suitable for general outdoor use and protected against solid objects over 1mm in size and sprays of water.
På fjernlager
In addition to providing a central power supply to racks and installations, the 19" AH Power Conditioner with only 1 ns response time offers effective protection against power surges and spikes. High frequency filters ensure a high interference immunity and prevent interference with connected devices. The 8 female power sockets on the back panel are activated with a large rocker switch with integrated status LED; on the front panel, the AH Power Conditioner also has an unswitched power socket and an easily resettable 10 A automatic circuit breaker. The sturdy construction and the rugged 1U steel housing provide you with a reliable and long-lasting operation in mobile and stationary applications.
The AH PCL 10 PRO has two rack lights, a gooseneck lamp as well as a voltmeter and ammeter with individual, easy-to-read display for monitoring the voltage values and power consumption.
All AH power conditioners are supplied with four IEC connection cables.
På fjernlager
The PRO PORT 2PP is ideal for tidy and targeted power distribution on stages, on trusses and in equipment rigs. The rugged metal housing features a Power Twist power input jack and 3 Power Twist output jacks, 2 of which are located on top of the distributor. Two M10 threaded inserts are used for suspension and fixed mounting.
På fjernlager
Power distribution unit with mountable rack ears
På fjernlager
Designed for easy power distribution on stages, trusses and in gear rigs, the PROPORT 2TT features a Power Twist TR1 input connector and 3 Power Twist TR1 output connectors. Two of those are located on top of the rugged metal enclosure which also provides two female thread M10 suspension points.
På fjernlager
This 1 U rackmount power strip provides ten IEC C13 grounded outlets on the rear of a 19" aluminum enclosure. The front panel features a C14 male inlet, an illuminated master on/off switch and a resettable circuit breaker for overload protection.
På fjernlager
På lager
The PROPORT 4TT is ideal for tidy and specific power distribution on stage, on trusses and in equipment rigs. The robust metal housing features a Power Twist TR1 power input socket and 5 Power Twist TR1 power outs (2 on top of the distributor). 2 x M10 threaded inserts for mounting and fixed installation
På fjernlager
In addition to providing a central power supply to racks and installations, the 19" AH Power Conditioner with only 1 ns response time offers effective protection against power surges and spikes. High frequency filters ensure a high interference immunity and prevent interference with connected devices. The 8 female power sockets on the back panel are activated with a large rocker switch with integrated status LED; on the front panel, the AH Power Conditioner also has an unswitched power socket and an easily resettable 10 A automatic circuit breaker. The sturdy construction and the rugged 1U steel housing provide you with a reliable and long-lasting operation in mobile and stationary applications.
The AH PCL 10 also has two pull-out rack lights with 5 LEDs, dimmer and automatic on and off switch, as well as a detachable LED gooseneck lamp with USB connection for the lighting of the rack.
All AH power conditioners are supplied with four IEC connection cables.
På fjernlager
The PROPORT 4 power strip is ideal for tidy and specific power distribution on stage, on trusses and in equipment rigs. Its robust metal housing features 4x IP54 protective contact socket outlets with hinged lids, each with a blue and white Power Twist I/O socket for power supply and transmission, as well as two M10 threaded inserts for mounting and fixed installation.
På fjernlager
The PROPORT 6T is the ideal power strip for tidy and specific power distribution on stage, on trusses and in equipment rigs. Its robust metal housing features 6 protective contact socket outlets with hinged lids, a black/yellow power I/O for power supply and transmission, and two M10 threaded inserts for mounting and fixed installation.
