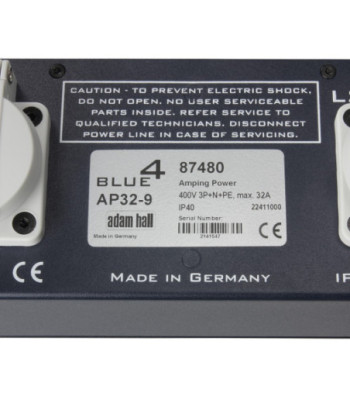

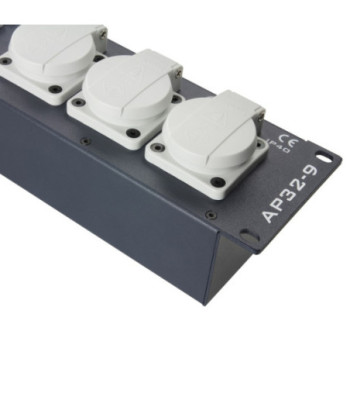

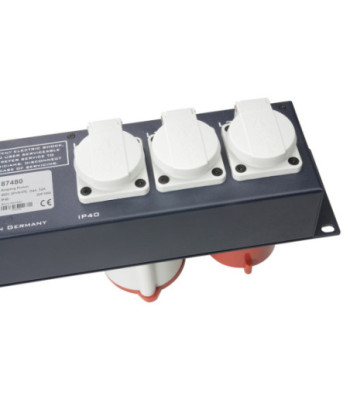

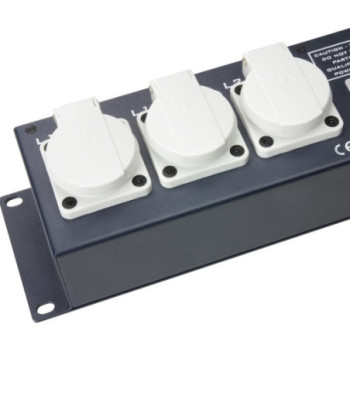

19" Power Strip 2U 3 phases § 32A CEE

5.529,00 kr.
Inkl. moms
87480

These power distributors are cost-optimised powerhouses. Designed for everyday stage use, they provide a basic supply of conventional electricity requirements. The components have been selected based upon their fulfilment of the relevant safety requirements and a favourable price/performance ratio.

  • 3 x indicator lamps for phase control L1, L2, L3

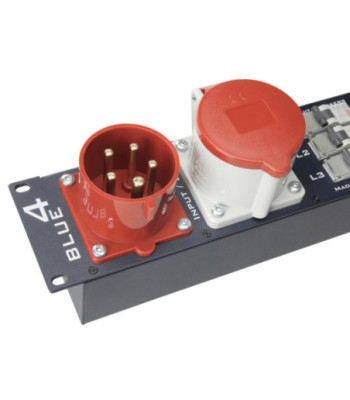

  • Input via 32 A CEE panel mounted receptacles 5-pin red
  • Output parallel to input 32 A CEE socket 5-pin red

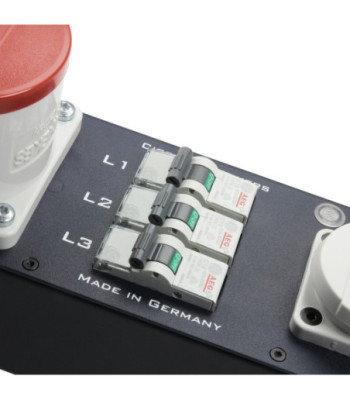

  • Protection via 3 x C16 circuit breakers

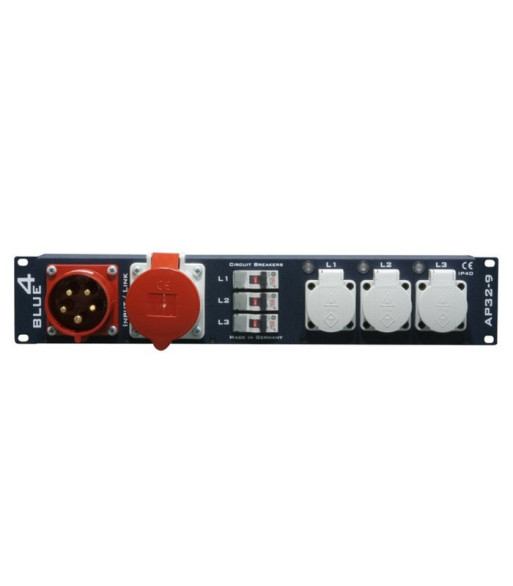

  • Front output via 3 x panel mounted receptacles with hinged lids grey

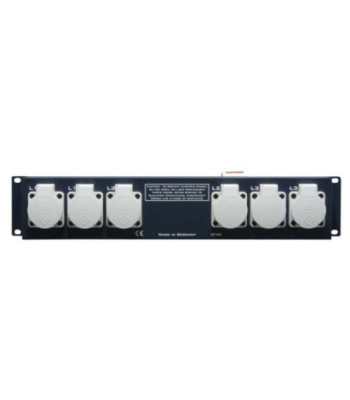

  • Rear output via 6 x panel mounted receptacles with hinged lids grey
  • Quality Made in Germany
Antal
På fjernlager

Ref: 87480


Product type19" rack mains socket strips
Type19" / 2 U
Number of outlets (Earthing contact / IEC 7/4)9 (3 x front, 3 x 2 rear)
Power input32 A CEE 5-pole panel socket, red
Output parallel to input32 A CEE 5-pole panel plug, red
Operating voltage400 V
Max. current3 x 16 A
Fuse3 x C16 circuit breaker (C tripping characteristic : for higher switch-on power)
Cabinet materialMetal
Colorblue
Width485 mm
Height88 mm
Depth70 mm
Other featuresindicator lamp pro phase
Weight3,06 kg
