Power Conditioner

1.479,00 kr.
Inkl. moms
PCS 10

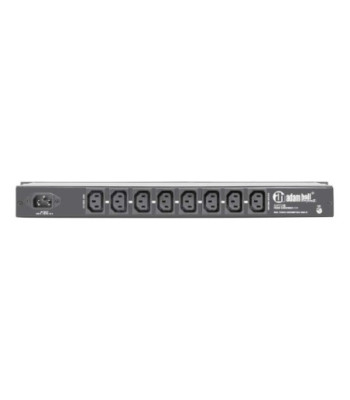

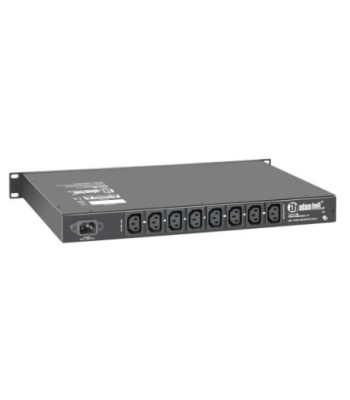

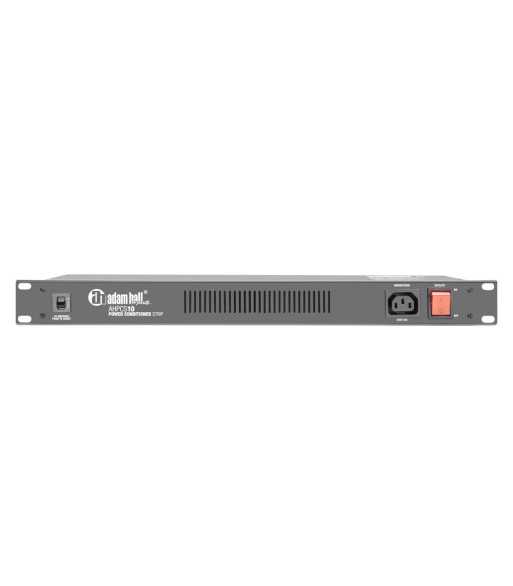

In addition to providing a central power supply to racks and installations, the 19" AH Power Conditioner with only 1 ns response time offers effective protection against power surges and spikes. High frequency filters ensure a high interference immunity and prevent interference with connected devices. The 8 female power sockets on the back panel are activated with a large rocker switch with integrated status LED; on the front panel, the AH Power Conditioner also has an unswitched power socket and an easily resettable 10 A automatic circuit breaker. The sturdy construction and the rugged 1U steel housing provide you with a reliable and long-lasting operation in mobile and stationary applications.

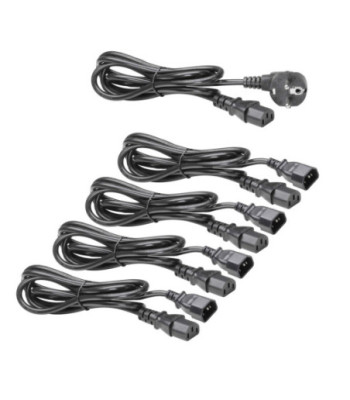

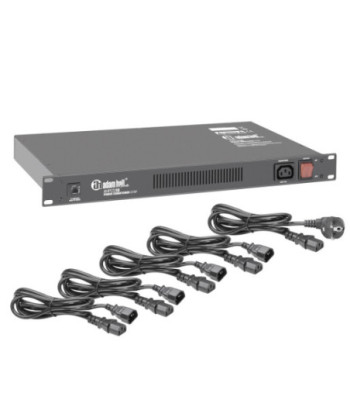

All AH power conditioners are supplied with four IEC connection cables.

Antal
På fjernlager

Ref: AHPCS10

  • Reliable protection against over-voltage and impulse voltage
  • Effective high frequency filter against interference

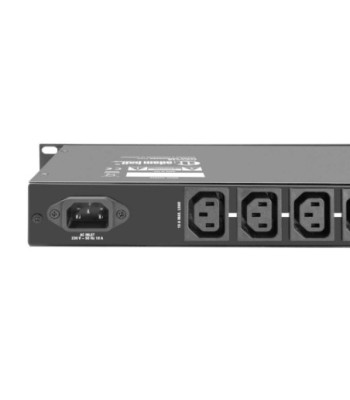

  • Central power supply with 8 switchable IEC sockets

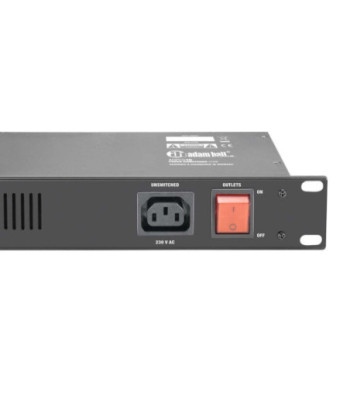

  • Unswitched convenience socket on the front

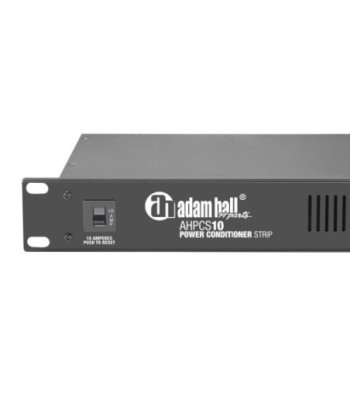

  • Resettable circuit breaker on the front panel

Product type19" rack mains socket strips
Type19" / 1 U
Number of outlets (IEC C14)9
Input voltage230 V
Nominal Impedancemax 10 A
Protection Against Impulse Voltageouter conductor to neutral
Response Time1 ns
Max. Surge Current6000A (8x20 µs pulse)
Max. Surge Energy70 joules per contact
Noise Cancelling<20 dB, 1.5 MHz-200 MHz
Mains connectorIEC mains cord
Fuse10 A
Width482 mm
Height44.5 mm
Depth190 mm
Weight2,27 kg
Featuresinkl. 4 Kaltgerätekabeln 1.8 m
Adam Hall 19" Parts
AHPCS10

Specifikke referencer
