MONACOR 8´´ 2-vejs koax-højttaler - SP-308CX

1.299,00 kr.
Inkl. moms

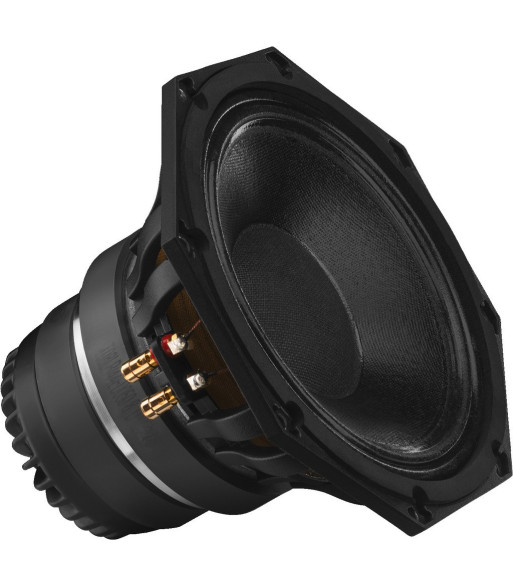

Professional 2-way coaxial PA speaker, with integrated horn tweeter.
  • 20 cm (8") PA bass speaker of high power capability and high efficiency
  • Coaxially arranged horn tweeter with 25 mm (1", voice coil = 44 mm) high-frequency driver
  • Excellent sound characteristics
  • Robust diecast basket with rear-ventilated centering spider
  • 50 mm (2") heat-resistant voice coil on a polyamide voice coil former (TIL)
  • Excellent and consistent radiation pattern
  • Ideally suited for stage monitors or very compact full range speaker systems
  • Operation only allowed with crossover network (recommended crossover frequency: >1,800 Hz)
Klang+Ton 08,09/2016
"Can hardly imagine a higher stability. Coaxial speaker ideally suited for hi-fi and monitoring which is available at a more than fair price."
Antal
På fjernlager

Ref: SP-308CX

Impedance (Z) 8 _ (bass), 8 _ (tweeter)
Line technique -

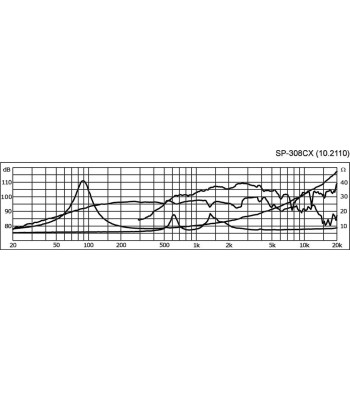

Frequency range f3-3,000 Hz (bass)
1,000-22,000 Hz (tweeter)
Resonant frequency (fs) 80 Hz (bass), 700 Hz (tweeter)
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating 150 W (bass) / 50 W (tweeter)
Peak music power output 300 W (bass) / 100 W (tweeter)
Sensitivity 95 dB (bass) / 105 dB (tweeter)
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal
Radiation angle, vertical
Suspension compl. (Cms) 0.22 mm/N
Moving mass (Mms) 17 g
Mech. Q factor (Qms) 2.21
Electr. Q factor (Qes) 0.43
Total Q factor (Qts) 0.36
Equivalent volume (Vas) 15.4 l
DC resistance (Re) 5.8 _
Force factor (BxL) 12.1 Tm
Voice coil induct. (Le) 0.58 mH
Voice coil diameter Ø 50 mm (bass) / Ø 44 mm (tweeter)
Voice coil former polyamide (TIL)
Linear excursion (XMAX) ±2.5 mm
Eff. cone area (Sd) 221 cm2
Magnet weight 1.4 kg
Magnet diameter Ø 126 mm/Ø 110 mm
Mounting cutout Ø 184 mm
Mounting depth 159 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions 208 x 208 x 169.3 mm
Outside diameter -
Width 208 mm
Height 208 mm
Depth 169.3 mm
Protective class
Admiss. ambient temp. 0-40 °C
Weight 4.8 kg
Sales unit 1
Type of speaker
SP-308CX
