. NEUTRIK UHD BNC-chassisstik - NBB-75DFIX .

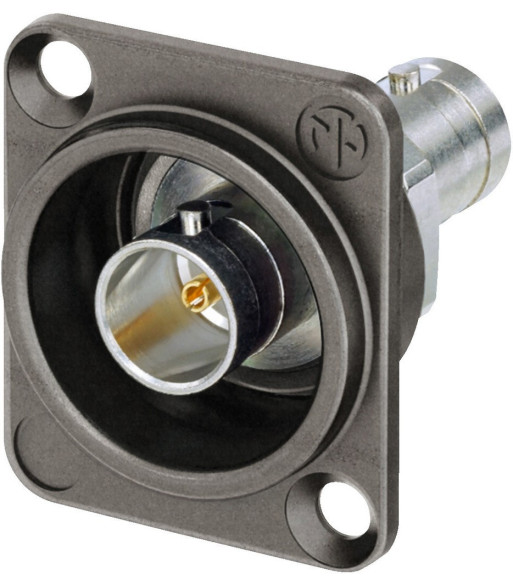

NEUTRIK UHD BNC-chassisstik - NBB-75DFIX
search
  • NEUTRIK UHD BNC-chassisstik - NBB-75DFIX

NEUTRIK UHD BNC-chassisstik - NBB-75DFIX

153,00 kr.
Inkl. moms

NEUTRIK UHD BNC panel jacks provide low return loss values at high frequencies, which typically occur in high-definition video signal transmissions. The machined brass body ensures a rugged and non-abrasive connection. Due to being recessed in the D series body (audio industry standard) they are additionally protected.
UHD BNC feed-through panel jack, 75 _, insulated

  • Gold-plated cage type contact, optimised for UHD signals like 4 K or 8 K
  • High-quality PTFE insulation
  • Body with antraloy coating
  • BNC insert insulated from the body due to plastic thread
  • Earthed panel mounting
  • D series
  • Colour coding possible
  • Compatible with customary BNC cable connectors

Antal
På fjernlager

Ref: NBB-75DFIX

Description panel jack
Type NEUTRIK BNC feed-through
Quantity 1
Features PTFE insulation, gold-plated contacts
Colour/colour coding black
Power rating -
Insulating resistance > 5 G_
Dielectric strength 1.5 kV
Certification -
Pole number -
Cable inlet -
Suitable cable cross section -
Connection 2 x BNC, 75 _
Strain relief -
Cable bending protection -
Stereo -
Mono -
Switches -
Material metal
Central fixing -
Contact type -
No. of contacts -
Contact width -
Contact distance -
Admiss. ambient temp. -30-+85 °C
Dimensions -
Diameter -
Length -
Weight 26 g
Other features D series
NEUTRIK
NBB-75DFIX
