. CC Pro Shop PA-højttaler aktiv 450W - PAK-415 IMG STAGELINE .
PA-højttaler aktiv 450W - PAK-415 IMG STAGELINE
search
  • PA-højttaler aktiv 450W - PAK-415 IMG STAGELINE
  • PA-højttaler aktiv 450W - PAK-415 IMG STAGELINE

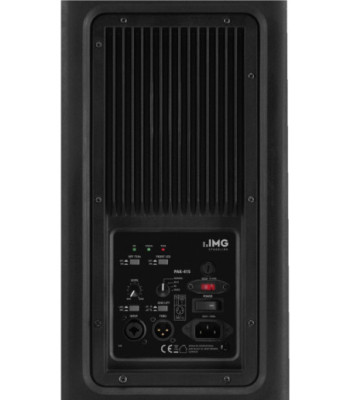

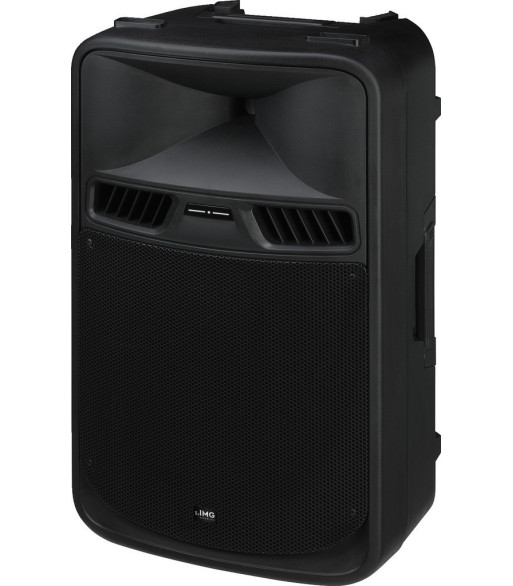

IMG STAGELINE PA-højttaler aktiv 450W - PAK-415

4.689,00 kr.
Inkl. moms

PAK-400 serien
PAK-400 serien er velegnet til mange formål, udnytter moderne teknologi og en individuel lydindstilling, som opfylder flere forskellige behov. Forstærkersystemet er en kombination af class D til bassen og class A/B til hornet. Ved brug af presets er det nemt at finde den perfekte lyd og med high-pass filtret, der aktiveres ved 75 Hz, kan højttalerne nemt matches med subwooferen PSUB-418AK.

Aktivt PA højttalersystem med 2-kanals forstærker, 450 W

  • Kompakt 2-vejs full range system med robust plastikkabinet
  • Moderne forstærkersystem (bas: class D, horn: class A/B)
  • Lydtryk ved nominel effekt: 124 dB
  • 4 presets: normal, Hi-Fi, DJ og voice, high-pass filter: 75 Hz
  • MIC/LINE indgang
  • LED indikator for power, signal og peak/clipping
  • M10 gevindindsats (2 i toppen, 2 i bunden, 1 på bagsiden)
  • Grundet kabinettets form også egnet som scenemonitor
  • Flange til placering på stativ og bærehåndtag

TenDance 06/2015
"The PAK-400 series from IMG Stage Line features individual adjustment facilities using modern technology which makes it suitable for most versatile applications; definitely a concept that works: this series provides a perfect system for everyone, including keyboard entertainers, combinations of entertaining music and DJs."



Antal
På fjernlager

Ref: PAK-415

Active/passive active
Line technique -
Impedance -
Frequency range 40-20,000 Hz
Amplifier power 450 (350+100) W
Max. power 700 W
THD -
S/N ratio -
Input signal 260 mV/10 k_ (line),

2 mV/10 k_ (mic)
System 15/2 full range
Bass speaker 38 cm (15") bass speaker
Midrange speaker -
Tweeter 33 mm (1.3") tweeter
Number of speakers 2
Speaker size 38 cm (15")
Power rating -
Peak music power output -
Sensitivity 98 dB
Max. rated SPL 124 dB
Radiation angle, horizontal -
Radiation angle, vertical -
Features
Material (housing/cabinet) plastic
Colour black
Mounting facility M10 threaded inserts, stand sleeve
Protected against ball rebound -
Protective class -
Admiss. ambient temp. 0-40 °C
Power supply _ 230 V/50 Hz/550 VA
Width 455 mm
Height 740 mm
Depth 390 mm
Weight 18.7 kg
Inputs 1 x comb. XLR/6.3 mm (line/mic)
Outputs 1 x XLR, par. out
Replacement voice coil
Other features 4 selectable presets
switchable high-pass filter: 75 Hz
IMG STAGELINE
PAK-415
