. CC Pro Shop 15´´ højttaler - SPH-390TC NUMBER ONE .
15´´ højttaler - SPH-390TC NUMBER ONE
search
  • 15´´ højttaler - SPH-390TC NUMBER ONE
  • 15´´ højttaler - SPH-390TC NUMBER ONE

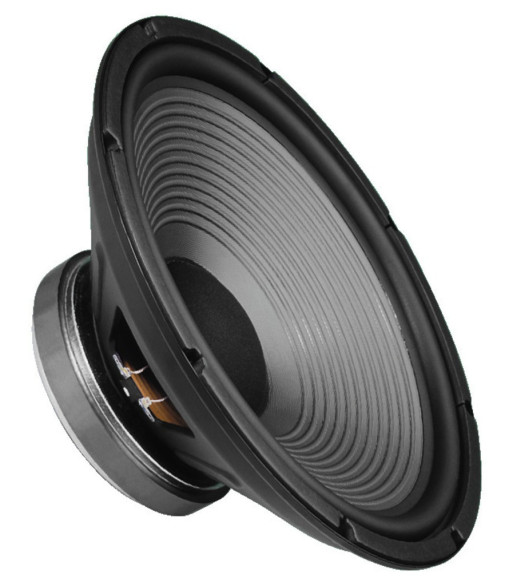

MONACOR 15´´ højttaler - SPH-390TC

1.579,00 kr.
Inkl. moms
Hi-fi subwoofer, 2 x 150 W, 2 x 8 _
  • High-performance speaker with dual voice coil
  • Robust sheet steel basket
  • Carbonised PP cone
  • Capable of a very great linear excursion
  • Parameters for extra powerful and deep bass reproductions in bass-reflex cabinets
Antal
På fjernlager

Ref: SPH-390TC

Impedance (Z) 2 x 8 _
Line technique -
Frequency range f3-1,500 Hz
Resonant frequency (fs) 23 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating 2 x 150 W
Peak music power output 2 x 300 W
Sensitivity 96 dB
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal -
Radiation angle, vertical -
Suspension compl. (Cms) 0.3 mm/N
Moving mass (Mms) 160 g
Mech. Q factor (Qms) 6.36
Electr. Q factor (Qes) 0.29
Total Q factor (Qts) 0.26
Equivalent volume (Vas) 284 l
DC resistance (Re) 2 x 6 _/3 _
Force factor (BxL) 16.72 Tm
Voice coil induct. (Le) 2 x 1.3 mH/1.3 mH
Voice coil diameter Ø 65,5 mm
Voice coil former Kapton
Linear excursion (XMAX) ± 7 mm
Eff. cone area (Sd) 850 cm2
Magnet weight 1.8 kg
Magnet diameter Ø 182 mm
Mounting cutout Ø 348 mm
Mounting depth 160 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions Ø 385 mm x 170 mm
Outside diameter Ø 385 mm
Width Ø 385 mm
Height -
Depth 170 mm
Protective class
Admiss. ambient temp. 0-40 °C
Weight 6.78 kg
Sales unit 1
Type of speaker
NUMBER ONE
SPH-390TC

Specifikke referencer
