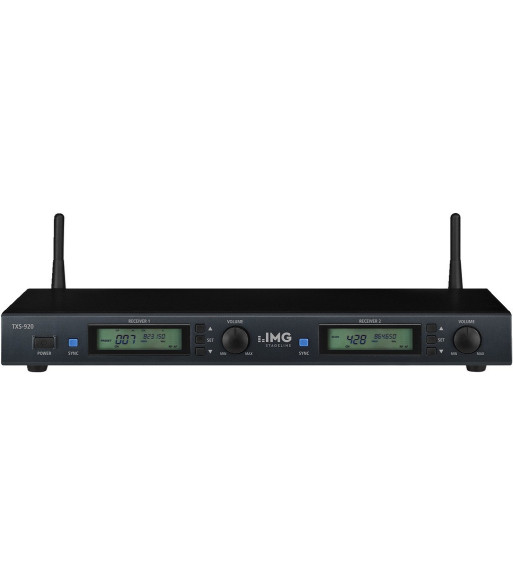

IMG STAGELINE Modtager - TXS-920

4.869,00 kr.
Inkl. moms
2-kanals trådløs modtager, med UHF PLL teknologi.
  • 2 licensfrie frekvensområder (E bånd: 823-832 MHz og 863-865 MHz)
  • 442 kanaler
  • Intermodulationsfrie presets, 4 grupper af hver 8 kanaler
  • Max. 12 intermodulationsfrie kanaler kan benyttes samtidig (autoscan)
  • SYNC funktion til transmission af den valgte frekvens til lommesender TXS-900HSE eller trådløs mikrofon TXS-900HT via infrarødt signal
  • Autoscan med intermodulationsgenkendelse
  • Ægte diversity system med aftagelige antenner (BNC tilslutning)
  • Pilottone squelch
  • Volumen- og squelchkontrol
  • LCD-indikator for gruppe/kanal, frekvens, RF signalstyrke, AF lydstyrke
  • XLR udgang (bal.) og 6,3 mm udgang (ubal.) pr. kanal, mic/line
  • 6,3 mm udgang for mixet signal (line)
  • Robust metalkabinet
  • Strømforsyning medfølger
  • 482 mm (19") rack installation ved brug af medfølgende monteringsbeslag
SOUNDCHECK 11/2014
"The transmission systems of the TXS series are perfectly equipped for the future and with the latest technology ensure an interference-free transmission on a big stage."
+ Easy configuration
+ Interference-free transmission
+ Impressive over greater distances



Antal
På fjernlager

Ref: TXS-920

Type receiver unit
Carrier frequency range 823-832 MHz + 863-865 MHz
Audio frequency range 80-18,000 Hz
Channels 2
THD < 1%
Dynamic range > 100 dB
RF S/N ratio > 100 dB
Operating time -
Admiss. ambient temp. 0-40 °C
Power supply -
Dimensions -
Total weight -
Connections -
Transmitting power -
Operating range -
Power supply transmitter -
Width transmitter -
Height transmitter -
Depth transmitter -
Weight transmitter -
Connections transmitter -
Audio signal receiver line: 75 mV, mic: 7 mV (jack, unbal.)
line: 150 mV, mic: 15 mV (XLR, bal.)
75 mV (mix)
Power supply receiver via encl.
plug-in power supply
Width receiver 420 mm
Height receiver 42 mm
Depth receiver 183 mm
Weight receiver 2.3 kg
Connections receiver 2 x XLR, bal.,
2 x 6.3 mm jack, unbal.
1 x 6.3 mm jack, unbal. (mix)
IMG STAGELINE
TXS-920
