Line-trafo - NTE-1 NEUTRIK
search
  • Line-trafo - NTE-1 NEUTRIK
  • Line-trafo - NTE-1 NEUTRIK

NEUTRIK Line-trafo - NTE-1

159,00 kr.
Inkl. moms

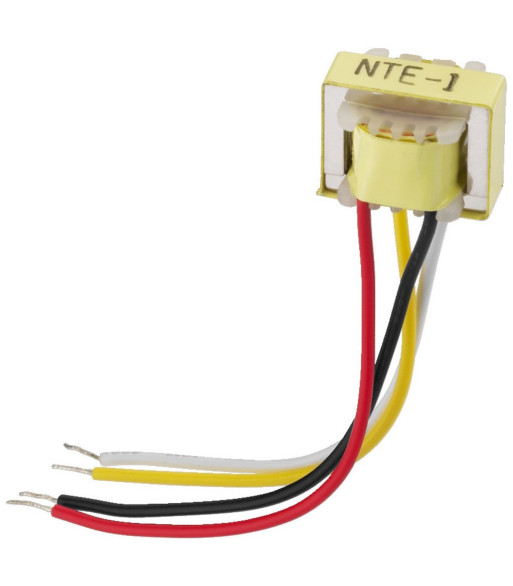

Audio transformer 1:1 for microphone signals, from NEUTRIK.
  • Very compact design, e.g. also suitable for installation into connector housings
  • Unshielded version with bare wire connections (70 mm)
  • Wideband version
  • Balance adjustment
  • Galvanic isolation to avoid/eliminate hum loops
  • Max. input voltage: 550 mV (1% THD/50 Hz)
When installing unshielded transformers into units with interference fields (e.g. power transformers), attention has to be paid to respective shielding measures.
Antal
På fjernlager

Ref: NTE-1

Type transformer
Frequency range 20-20,000 Hz
Control range -
Control frequencies -
Input signal 50 mV
Input sensitivity -
Input impedance 200 _
Output signal -
Output impedance 2 k_
Gain -
Phantom power
Compression -
Gate ratio -
Crossover frequency -
High-pass filter -
Low cut -
Transmission ratio 1:1
S/N ratio -
Channel separation -
THD -
Admiss. ambient temp. -
Power supply -
Dimensions 14 x 11 x 12 mm
(w/o cable)
Weight 4g
Inputs bare cable ends
Outputs bare cable ends
Other features -
NEUTRIK
NTE-1
