. CC Pro Shop 100V højttaler - ESP-22/WS MONACOR .
100V højttaler - ESP-22/WS MONACOR
search
  • 100V højttaler - ESP-22/WS MONACOR
  • 100V højttaler - ESP-22/WS MONACOR

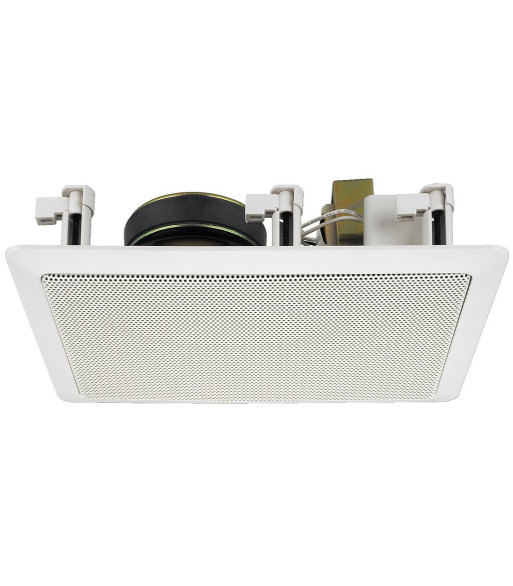

MONACOR 100V højttaler 20Wmax - ESP-22/WS

829,00 kr.
Inkl. moms
PA Hi-Fi væg- og loftshøjttalere
  • 100 V line-teknologi, 2-vejs version med dome tweeter (justerbar i ESP-17/WS, ESP-22/WS og ESP-32/WS)
  • Plastikkabinet med frontgitter i metal
  • Udført i ABS-plast, som er selvslukkende i overensstemmelse med UL 94V-0
  • Fremragende lydegenskaber
  • Til vægge og lofter med en tykkelse fra 8 til 35 mm



Antal
På fjernlager

Ref: ESP-22/WS

Impedance (Z) -
Line technique 100 V
Frequency range 50-20,000 Hz
Resonant frequency (fs) -
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating 20/15/10/5/2.5 W
Peak music power output -
Sensitivity -
Max. rated SPL -
Max. voltage -

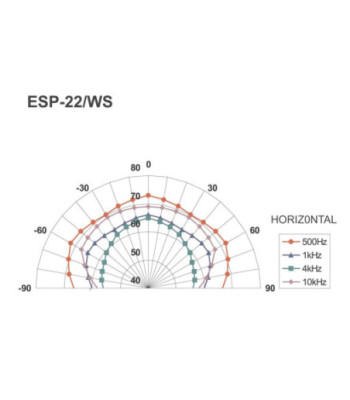

Radiation angle, horizontal -
Radiation angle, vertical -
Suspension compl. (Cms) -
Moving mass (Mms) -
Mech. Q factor (Qms) -
Electr. Q factor (Qes) -
Total Q factor (Qts) -
Equivalent volume (Vas) -
DC resistance (Re) -
Force factor (BxL) -
Voice coil induct. (Le) -
Voice coil diameter -
Voice coil former -
Linear excursion (XMAX) -
Eff. cone area (Sd) -
Magnet weight -
Magnet diameter -
Mounting cutout 275 x 190 mm
Mounting depth 90 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions 306 x 220 x 100 mm
Outside diameter -
Width 306 mm
Height 220 mm
Depth 100 mm
Protective class -
Admiss. ambient temp. 0-40 °C
Weight 2.6 kg
Sales unit 1
Type of speaker 165
ESP-22/WS
