8´´ højttaler - SPH-220HQ MONACOR
search
  • 8´´ højttaler - SPH-220HQ MONACOR
  • 8´´ højttaler - SPH-220HQ MONACOR

MONACOR 8´´ højttaler - SPH-220HQ

839,00 kr.
Inkl. moms

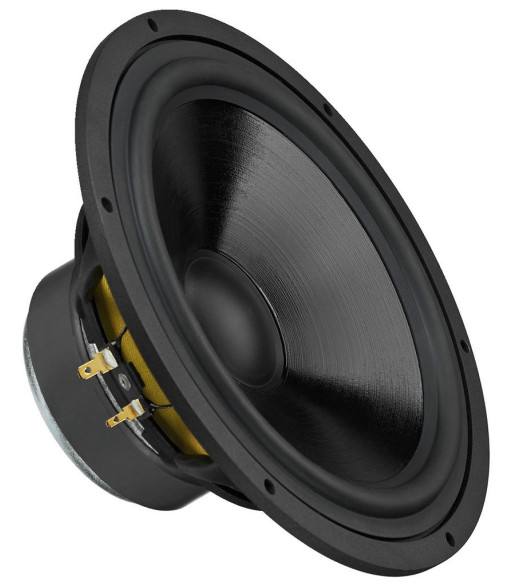

High-quality hi-fi bass speaker, 100 W, 8 _
  • 200 mm (8") bass speaker
  • Further development of the classic speaker SPH-212
  • Diecast basket
  • Rear-ventilated centering spider and drilled pole core for minimum mechanical loss
  • High-quality coated paper cone of low resonance
  • Low-loss rubber surround
  • Wide and linear radiation range
  • Ideally suited for 3-way systems and also suitable for traditional 2-way systems in an application range of up to 2,000 Hz and beyond
HOBBY HIFI 04/2013
"Excellent sound, powerful bass reproduction and good level stability. It features an outstanding frequency response with perfect linearity. The SPH-220HQ allows for an exceptionally efficient radiation and even the use of a first-order crossover network for an ideal sound."
Antal
På fjernlager

Ref: SPH-220HQ

Impedance (Z)8 _
Line technique-

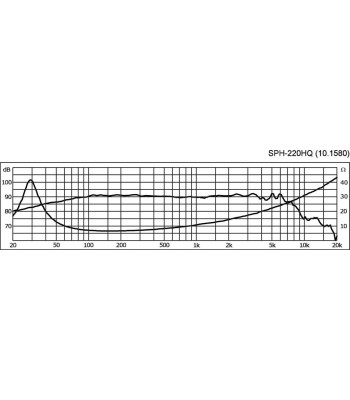

Frequency rangef3-4,000 Hz
Resonant frequency (fs)30 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)-
Power rating100 W
Peak music power output180 W
Sensitivity90 dB/W/m
Max. rated SPL-
Max. voltage-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)1.06 mm/N
Moving mass (Mms)24.7 g
Mech. Q factor (Qms)3.06
Electr. Q factor (Qes)0.46
Total Q factor (Qts)0.40
Equivalent volume (Vas)80 l
DC resistance (Re)6.1 _
Force factor (BxL)7.63 Tm
Voice coil induct. (Le)0.9 mH
Voice coil diameterØ 37 mm
Voice coil formeraluminium
Linear excursion (XMAX)± 5.5 mm
Eff. cone area (Sd)232 cm2
Magnet weight550 g
Magnet diameterØ 100 mm
Mounting cutoutØ 194 mm
Mounting depth88 mm
Mounting hole diameterØ 212 mm
Hole spacing X-axis-
Hole spacing Y-axis-
DimensionsØ 222 mm x 94 mm
Outside diameterØ 222 mm
WidthØ 222 mm
Height-
Depth94 mm
Protective class
Admiss. ambient temp.0-40 °C
Weight1.83 kg
Sales unit1
Type of speaker
SPH-220HQ
