. CC Pro Shop Digital 100V forstærker 250Wrms - PA-1250D MONACOR .

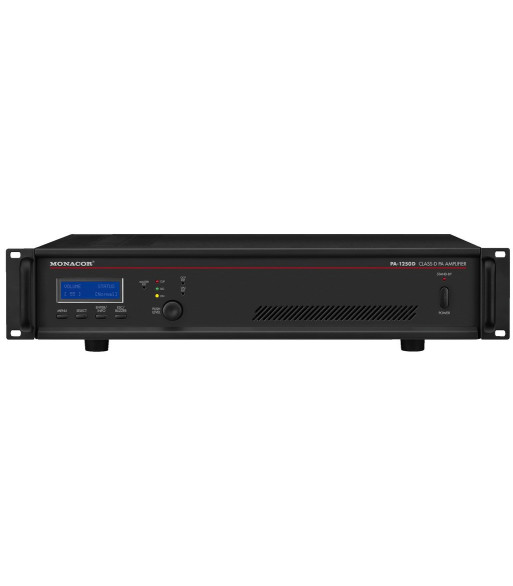

Digital 100V forstærker 250Wrms - PA-1250D MONACOR
search
  • Digital 100V forstærker 250Wrms - PA-1250D MONACOR
  • Digital 100V forstærker 250Wrms - PA-1250D MONACOR

MONACOR Digital 100V forstærker 250Wrms - PA-1250D

6.749,00 kr.
Inkl. moms
Powerful and Energy-saving
The mono class D PA power amplifier PA-1250D is part of a new generation of equipment which combines a high power capability with an efficient energy utilisation, thus making an important contribution to climate protection. Furthermore, the user also saves electricity costs. Among other things, this is due to the digital 100V power amplifier providing a considerably higher efficiency of more than 90% compared to analogue units (approx. 70%). Furthermore, the thermal loss is considerably lower. Thus, the cooling requirements will be minimised and the service life of the PA-1250D will be further increased.
Mono class D PA power amplifier, with an energy-saving effect.
  • 1 x 250 W
  • Class D concept with a high efficiency of more than 90% to reduce energy costs
  • Additional integrated energy-saving functions, e.g. device automatically goes to standby mode when no input signal is present (as soon as an input signal is detected, the amplifier is automatically switched on again)
  • Requires a significantly lower rechargeable battery capacity for emergency power operation than 100 V analogue amplifiers
  • Clearly reduced cooling requirements due to low heat dispersion
  • Silent operation due to fanless cooling concept, thus especially suitable for noise-sensitive areas, e.g. offices, conference rooms or churches
  • Special protective circuits prevent damage caused by short circuit or overheating
  • Extensive, menu-controlled settings
  • Switchable 200 Hz high-pass filter, 6 dB/oct.
  • Additional priority input
  • LCD for the operating parameters
  • Mains operation or 24 V emergency power operation
Antal
På fjernlager

Ref: PA-1250D

Channels 1
Zones -
Power rating 250 W
Power rating at 2 _ -
Power rating at 4 _ -
Power rating at 8 _ -
Power rating at 100 V 1 x 250 W
Power rating with 4 _ bridged operation -
Power rating with 8 _ bridged operation -
Peak music power output (PMAX) 350 W
Output impedance 100 V/40 _
Inputs 1.2 V, bal. (line)
Attenuation factor -
Frequency range 50-18,000 Hz, ±3 dB
Crossover network high-pass filter: 200 Hz, 6 dB/oct.
Crossover frequency -
Integrated limiter -
Equalizer bass -
Equalizer midrange -
Equalizer treble -
S/N ratio > 100 dB, A-weighted
Crosstalk attenuation -
THD < 0.5%
Power supply _ 230 V/50 Hz/350 VA,
8 W (standby mode),
DC current  24 V/20 A,
280 mA (standby mode)
Mains voltage _ 230 V
Mains frequency 50 Hz
Power consumption, operation 350 VA
Power consumption, standby -
Standby current -
Operating voltage (possible alternative) DC current  24 V
Power supply (possible alternative) DC current  20 A
Admiss. ambient temp. 0-40 °C
Dimensions 482 x 88 x 410 mm, 2 RS
Width 482 mm
Height 88 mm
Depth 410 mm
Rack spaces, RS 2
Weight 7.5 kg
Connections screw terminals (inputs)
screw terminals (speakers)
PA-1250D
