MONACOR Forstærker 2x15W DIN - EPS32
search
  • MONACOR Forstærker 2x15W DIN - EPS32
  • MONACOR Forstærker 2x15W DIN - EPS32

MONACOR Forstærker 2x15W DIN - EPS32

1.409,00 kr.
Inkl. moms

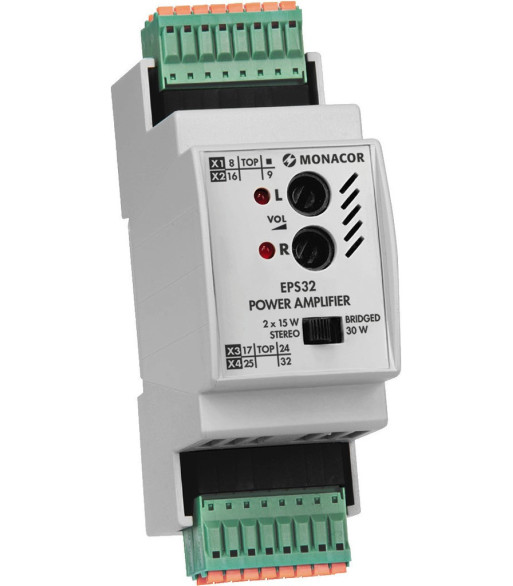

Amplifier, 2 x 15 W
  • For mounting onto DIN rails according to DIN EN 60529, 2 HP
  • 2-channel class D amplifier
  • Selectable mode stereo/bridged
  • Inputs to be switched externally
  • Input balanced and unbalanced
  • Summing amplifier input
  • Microphone input
  • Separate volume control for each channel
  • Hifh-efficiency green design

Antal
På fjernlager

Ref: EPS32

Peak output power30 W
Power rating-
Power rating at 2 _-
Power rating at 4 _2 x 12 W
Power rating at 8 _2 x 6 W
Power rating at 16 _-
Power rating at 100 V-
Power rating with 4 _ bridged operation1 x 24 W
Power rating with 8 _ bridged operation1 x 12 W
Output impedance4-8 _
Channels2
Zones-
Inputs1 V/47 k_ (bal.), 22 k_ (unbal.)
Attenuation factor-
Frequency range42-21,000 Hz
Crossover network-
Crossover frequency-
Integrated limiter-
Equalizer bass-
Equalizer midrange-
Equalizer treble-
S/N ratio92 dB
Crosstalk attenuation-
THD0.05%
Phantom power9-12 V
Mains voltage-
Mains frequency-
Power consumption, operation-
Power consumption, standby-
Standby current-
Operating voltage (possible alternative)12-26 V
Power supply (possible alternative)-
Admiss. ambient temp.-20 °C to +40 °C

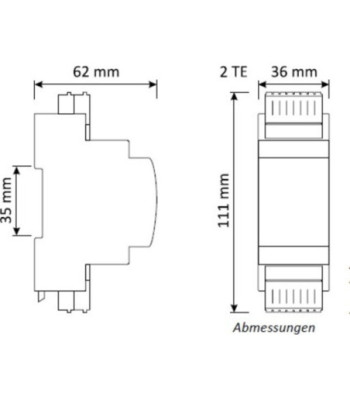

Width36 mm
Height101 mm
Depth62 mm
Rack units, RU-
Weight98 g
Connectionsspring-loaded terminals
Packing dimensions (W x H x L)0.037 x 0.095 x 0.075 m
Gross weight0.1297 kg
Net weight0.098 kg
EPS32
