. CC Pro Shop 5´´ højttaler - SPH-68X/AD MONACOR .
5´´ højttaler - SPH-68X/AD MONACOR
search
  • 5´´ højttaler - SPH-68X/AD MONACOR
  • 5´´ højttaler - SPH-68X/AD MONACOR

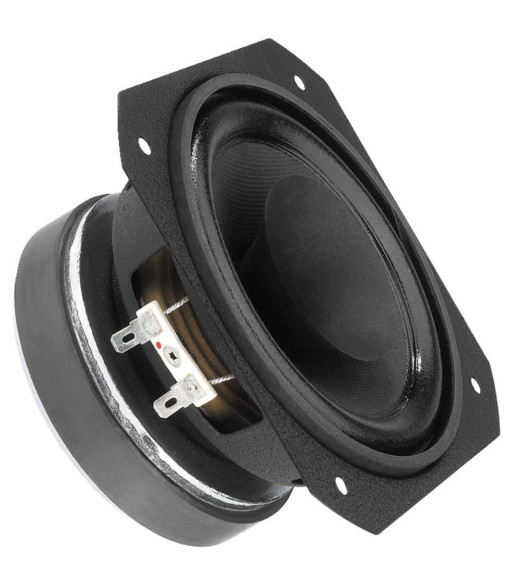

MONACOR 5´´ højttaler - SPH-68X/AD

389,00 kr.
Inkl. moms
Full range speaker, 30 W, 8 _
  • Drilled pole core
  • Flat wire voice coil
  • Very good frequency response linearity also in the high frequency range
  • For general applications
Antal
På fjernlager

Ref: SPH-68X/AD

Impedance (Z) 8 _
Line technique -
Frequency range f3- 20,000 Hz
Resonant frequency (fs) 60 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating 30 W
Peak music power output 60 W
Sensitivity 89 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal -
Radiation angle, vertical -
Suspension compl. (Cms) 1.1 mm/N
Moving mass (Mms) 6.5 g
Mech. Q factor (Qms) 3.19
Electr. Q factor (Qes) 0.49
Total Q factor (Qts) 0.43
Equivalent volume (Vas) 9.7 l
DC resistance (Re) 6.5 _
Force factor (BxL) 5.7 Tm
Voice coil induct. (Le) 0.5 mH
Voice coil diameter 25.5 mm
Voice coil former Kapton
Linear excursion (XMAX) ± 1 mm
Eff. cone area (Sd) 80 cm2
Magnet weight 370 g
Magnet diameter Ø 100 mm
Mounting cutout Ø 122 mm
Mounting depth 70 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions 130 x 130 x 71 mm
Outside diameter -
Width 130 mm
Height 130 mm
Depth 71 mm
Protective class -
Admiss. ambient temp. 0-40 °C
Weight 1.1 kg
Sales unit 1
Type of speaker 5"
SPH-68X/AD
