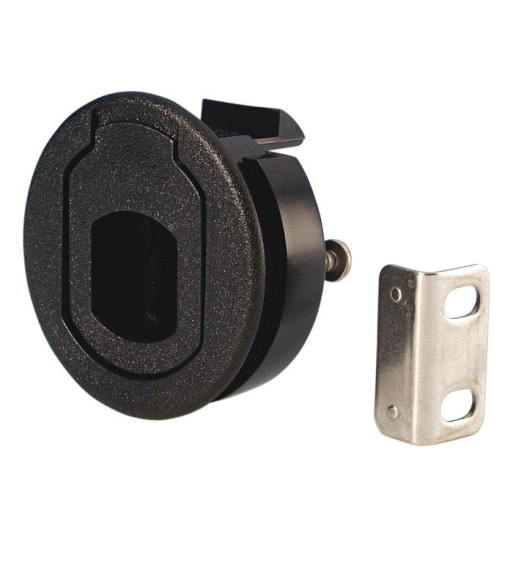

Compression Latch with Hex...
1671
Features
- 4.5mm compression.
- The closing process is always clockwise.
- By turning the insert 90° the cam is first put into closed position.
- By turning an additional 90°, the cam will be pulled towards the frame.
- The H-dimension can be easily adjusted by the adjusting screw.
- Vibration-proof according to DIN EN 61373.
- IP65 according to DIN EN 60529.
- RH / LH application.
- A pre-assembled quarter-turn can be fitted through the cutout.
Materials
- Housing, insert shaft and cam: zinc die, black
- T-handle: PA, black
- Adjusting screw and nut: steel, zinc plated
Pris
199,00 kr.
På fjernlager
