. Compression Latch with Wing Knob .

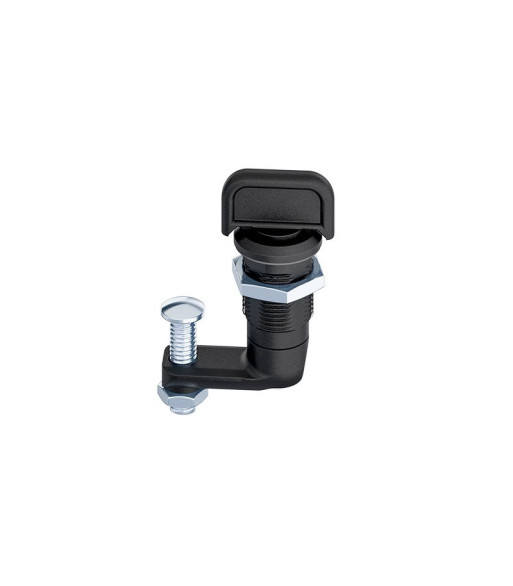

Compression Latch with Wing Knob
search
  • Compression Latch with Wing Knob
  • Compression Latch with Wing Knob

Compression Latch with Wing Knob

199,00 kr.
Inkl. moms
1670

Features

  • 4.5mm compression.
  • The closing process is always clockwise.
  • By turning the insert 90° the cam is first put into closed position.
  • By turning an additional 90°, the cam will be pulled towards the frame.

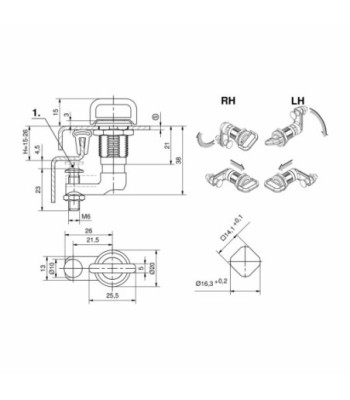

  • The H-dimension can be easily adjusted by the adjusting screw.
  • Vibration-proof according to DIN EN 61373.
  • IP65 according to DIN EN 60529.
  • RH / LH application.
  • A pre-assembled quarter-turn can be fitted through the cutout.

Materials

  • Housing, insert shaft and cam: zinc die, black
  • T-handle: PA, black
  • Adjusting screw and nut: steel, zinc plated
Antal
På fjernlager

Ref: 1670

Product typeCatches
TypeCompression Latch
MaterialZinc die-cast
SurfacePowder coated
ColorBlack
Mounting hole diameter16.3 mm
LockableNo
Weight0,047 kg
Other featuresCatches
Other featuresOperated by wing knob
Adam Hall Hardware
1670

Specifikke referencer
