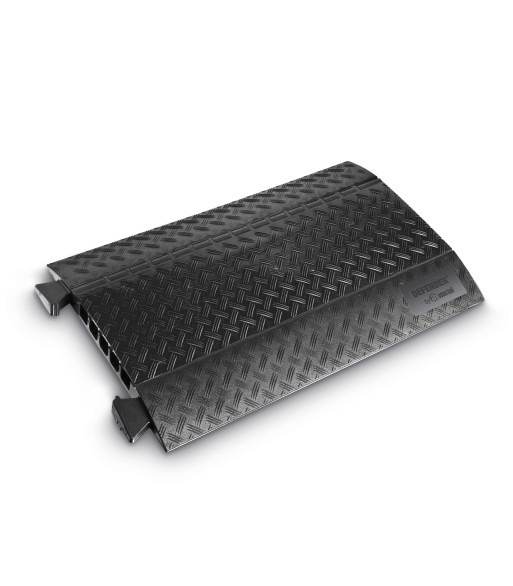

Defender Cable Bridge 5 Channels, Black

2.169,00 kr.
Inkl. moms
MIDI 5 BLK5 Medium Channels - The Solution for Nearly Anything

The DEFENDER® MIDI cable protection system has been designed for maximum routing versatility and secure crossing. Featuring a low profile, 5 t per 25 x 30 cm load capacity, integrated connectors and handles the straight ramp, 45° curve and end ramps are easily linked to form a continuous cable guard while five 34 x 36 mm channels allow for individual sound, lighting and power line arrangement. DEFENDER® MIDI cable protectors are ideal for a multitude of usages such as heavy wheeled traffic, construction sites, warehouses, carnivals, fairs, trade shows, exhibitions, shopping malls, broadcasting and music events.

Label your cable protectors! Customise the DEFENDER® cable protectors with your company logo for orders ex 30 pieces for each product. You will find the format requirements in the download pool above the text. Feel free to contact us for more information.

Antal
På fjernlager

Ref: 85300BLK

  • Heavy-duty,non-slip all-round cable protector made of black, recyclable polyurethane with built-in carrying handles

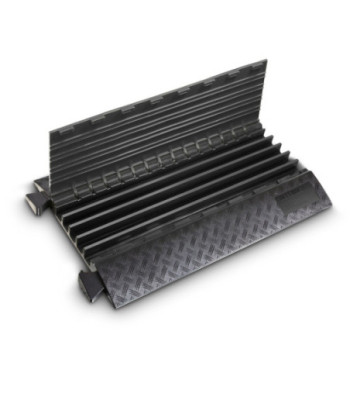

  • Black polyurethane lid with secure closure
  • Self-cleaning lid hinge
  • 5 channels 34 x 36 mm
  • Load bearing capacity approx. 5 t / 25 x 30 cm
  • Fire resistance class B2 (DIN 4102)
  • Resistant to oil, acids, solvents, and petrol
  • Dimensions 87 x 53.8 x 5.5 cm; Weight 13.5 kg
  • Reliable protection for cables and personnel for indoor and outdoor use
  • Also available with pre-drilled mounting holes with a blue or yellow lid (Item No. 85300BLUE, 85300)
  • Curves and end ramps for flexible cable protection are available as accessories
  • TÜV SÜD certified

Product typeCable Protectors
Type5 Channels
Length870 mm
Height55 mm
Width538 mm
Channels5
Width channel 134 mm
Height channel 136 mm
Width channel 234 mm
Height channel 236 mm
Width channel 334 mm
Height channel 336 mm
Width channel 434 mm
Height channel 436 mm
Width channel 534 mm
Height channel 536 mm
MaterialPolyurethane
Max loadApprox. 5 t on a surface area of 25 x 30 cm
Chemical resistanceOil-resistant
Chemical resistancePetrol-resistant
Hardness range88 Shore ± 4 A Shore
Fire protection classB2
Temperature range-30°C to 60°C °C
Weight13,4 kg
Defender
85300BLK
