Defender Cable Protector 7-Channel

679,00 kr.
Inkl. moms

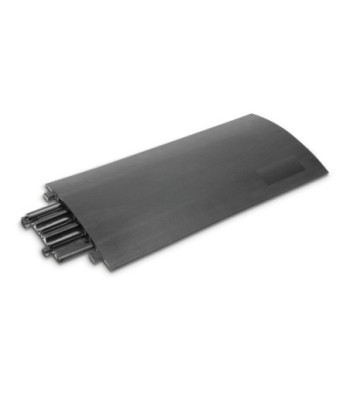

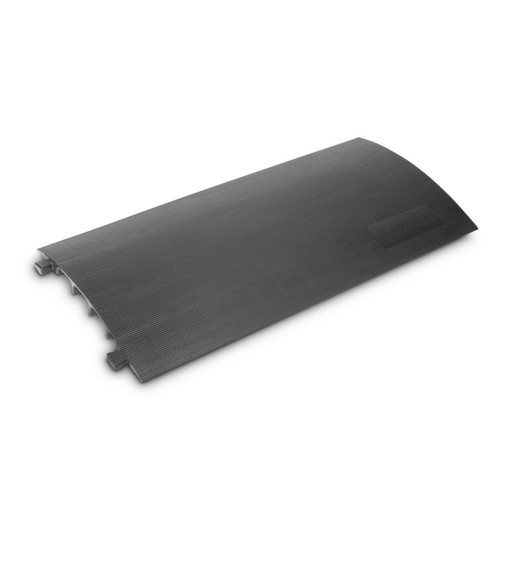

COMPACT7 Small Channels - The Drop Over Solution

The Defender® COMPACT drop-over cable protector is a durable light-duty solution to guard cable lines and prevent tripping hazards. Featuring a ribbed surface for excellent traction and integrated dovetail connectors Defender® COMPACT drop-over cable ramps are suitable for pedestrian traffic in offices, shopping malls, conference facilities, trade shows and markets as well as stage and studio applications.

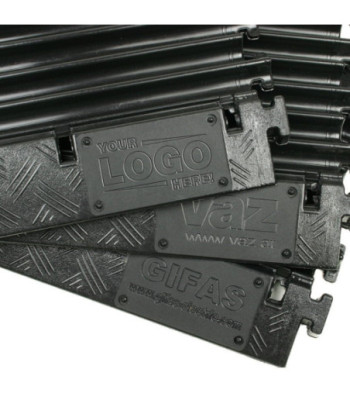

Label your cable crossovers! Customise the Defender cable crossovers with your company logo for orders ex 30 pieces for each product. You will find the format requirements in the download pool above the text. Feel free to contact us for more information.

Antal
På fjernlager

Ref: 85100

  • Non-slip, overlaid cable protector made of black, recyclable polyurethane
  • 7 channels: 1 channel 28 x 30 mm, 2 channels each 28 x 23 mm, 28 x 27 mm und 28 x 29 mm
  • Fire resistance class B2 (DIN 4102)
  • Resistant to oil, acids, solvents, and petrol
  • Dimensions 81 x 42,5 x 3.7 cm; Weight 3.6 kg
  • Reliable protection for cables and personnel for indoor and outdoor use

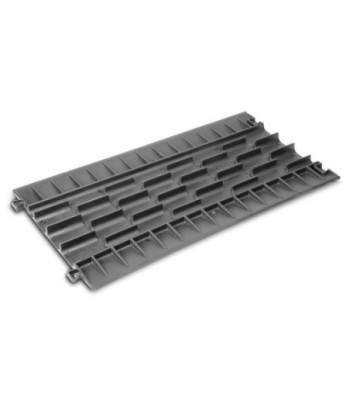

  • Expandable with Base Item No. 85103 for higher loads such as forklifts and lifting trucks
  • Channels with base: 5 channels 22 x 21 cm
  • Weight with base: 7 kg
  • Not suitable for vehicular traffic
  • TÜV SÜD certified

Product typeCable Protectors
Type7 Channels
Length810 mm
Width425 mm
Height37 mm
Channels7
Width channel 128 mm
Height channel 123 mm
Width channel 228 mm
Height channel 227 mm
Width channel 328 mm
Height channel 329 mm
Width channel 428 mm
Height channel 430 mm
Width channel 528 mm
Height channel 529 mm
Width channel 628 mm
Height channel 627 mm
Width channel 728 mm
Height channel 723 mm
MaterialPolyurethane
Max loadPedestrians, bicycle
Chemical resistanceOil-resistant
Chemical resistancePetrol-resistant
Hardness range88 ± 4 Shore
Fire protection classB2
Temperature range-30°C to 60 °C
Weight3,5 kg
Defender
85100
