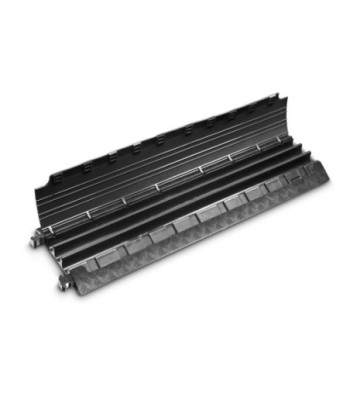

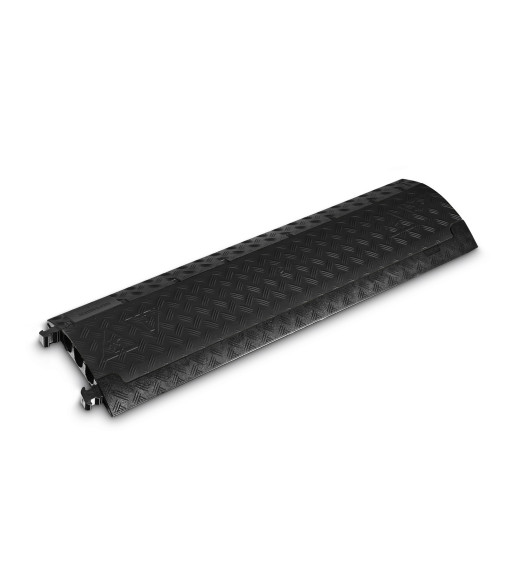

Defender Cable Protector 3-channel with Black Cap

1.439,00 kr.
Inkl. moms
MINI BLK

Small but sturdy. Light, professional and universally useable. The new DEFENDER Mini meets all expectations when it comes to professional cable protection, expanding the DEFENDER series to include a compact, very light (only 5 kg!) cable crossover capable of supporting vehicle traffic.

Sporting three cable channels with a channel cross-section of 35 mm and an installation height of 48 mm, this crossover is mainly used indoors, but with a capacity of more than 2 tonnes it can easily withstand road traffic, too. The base of the DEFENDER Mini has a non-slip surface so as to guarantee optimum support on as many different floor types as possible. Like all of the DEFENDER cable crossovers, the DEFENDER Mini is resistant to oil, acids & petrol and has a patented self-cleaning hinged closure.

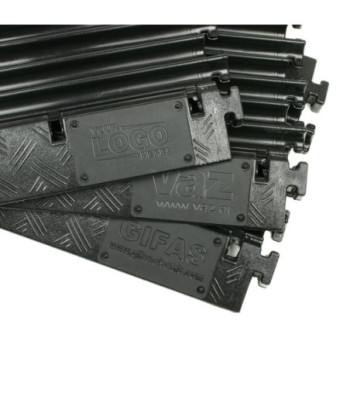

Label your cable crossovers! We are now able to customise all Defender cable crossovers with your company logo from a minimum order of just 30 units per model. The format requirements are available in the download area.

Antal
På fjernlager

Ref: 85200BLK

  • compact, non-slip cable protector made of black, recyclable polyurethane
  • black polyethylene lid with secure closure
  • patented, self-cleaning lid hinge
  • 3 channels: 1 channel 35 x 35 mm, 2 channels 35 x 30 mm
  • Load bearing capacity approx. 2t / 20 x 20 cm
  • Fire resistance class B2 (DIN 4102)
  • Resistant to oil, acid, petrol and short-term contact with solvents
  • Dimensions 105 x 29 x 5 cm; Weight 6 kg
  • reliable protection for cables and personnel for indoor and outdoor use
  • not suitable for vehicular traffic
  • End ramps for secure cable inlet and exit as accessories
  • TÜV SÜD certified

Product typeCable Protectors
Type3 Channels
Width290 mm
Height50 mm
Length1005 mm
Channels3
Width channel 135 mm
Height channel 130 mm
Width channel 235 mm
Height channel 235 mm
Width channel 335 mm
Height channel 330 mm
MaterialPolyurethane
Max loadapprox. 2 t on a surface area of 20 x 20 cm
Chemical resistanceOil-resistant
Chemical resistancePetrol-resistant
Chemical resistanceShort-term contact with solvents
Hardness range88 Shore ± 4 Shore
Fire protection classB2
Temperature range-30 to +60 °C
Weight5,9 kg
Defender
85200BLK

Specifikke referencer
