LD Systems Receiver

1.299,00 kr.
Inkl. moms
U306 R

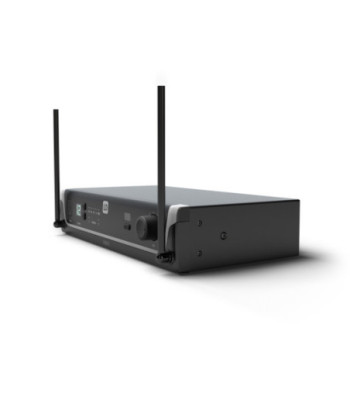

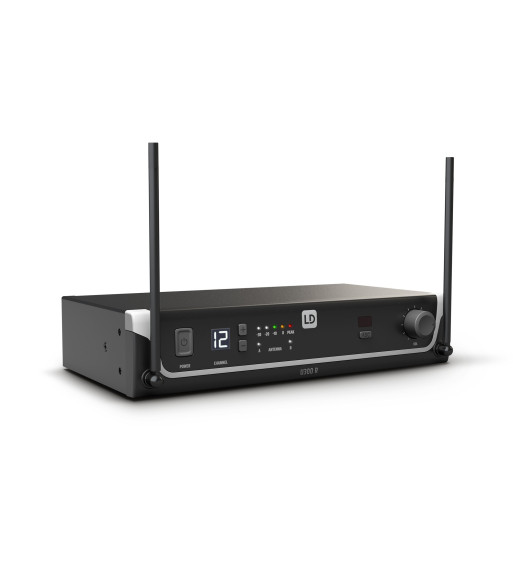

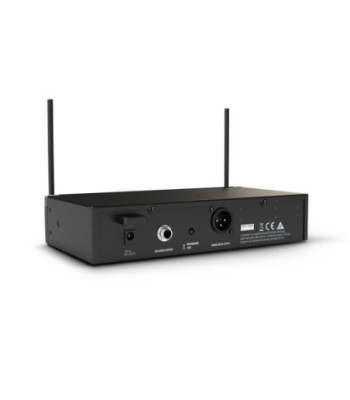

The U300 series 12-channel UHF receiver operates with FM technology in the frequency band 655_679 MHz and features a 25 Hz to 16 kHz frequency response. Convenient one-touch synchronisation via infrared ensures fast, problem-free wireless connection with the handheld transmitter microphone or bodypack from the same series. A squelch with pilot tone ensures disruption-free operation. The U306 receiver features elegant metal housing with a bright LCD channel display, channel selection keys and LEDs that display audio signal strength and active antenna. The rear side features both a balanced XLR and unbalanced 6.35 mm audio output that is switchable to instrument level for directly connecting to guitar and bass guitar amps. Includes a power adapter and balanced XLR cable.

Antal
På fjernlager

Ref: LDU306R

Product typeWireless Microphone System Accessories
TypeReceivers
Modulation TypeFM
Transmission frequency range655 - 679 MHz
Channels12
Groups1
Antenna inputs2 x fixed
Frequency response25 - 16,000
Noise reductionSquelch
Transmission optimizationPilot tone
Total Harmonic Distortion (THD)< 0.3 %
Signal-to-noise ratio104 dB
Audio output, balancedXLR
Audio output, unbalanced6.3 mm jack, switchable unbalanced output level
Max. output level+10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu
ControlsASC Sync
ControlsChannel down
ControlsChannel up
ControlsLine/Instrument Level
ControlsPower
Controlsvolume
Indicators5 LED VU meters
IndicatorsAntenna A/B
IndicatorsLC display
Power supply12 V DC - 18 V DC (500 mA), external power supply
Width211 mm
Height43 mm
Depth120 mm
Weight0,7 kg
Accessories (included)2 x AA battery
Accessories (included)Audio cable
Accessories (included)Power supply
Other featuresIR frequency synchronisation
LD Systems
LDU306R

Specifikke referencer

16 andre varer i den samme kategori:

LD Systems Dynamic handheld microphone
search

LD Systems Dynamic handheld...

U505 MD
  • UHF wireless microphone
  • Shock-mounted dynamic and condenser microphone capsules
  • Automatic channel scan
  • Easy one-touch infrared frequency syncing
  • Pilot tone squelch circuit prevents noise
  • Switchable RF transmitter output (2, 10 or 30 mW)
  • Rugged enclosure
  • High-contrast OLED display
Pris 1.859,00 kr.

På fjernlager

LD Systems Dynamic handheld microphone
search

LD Systems Dynamic handheld...

U508 MD
  • UHF wireless microphone
  • Shock-mounted dynamic and condenser microphone capsules
  • Automatic channel scan
  • Easy one-touch infrared frequency syncing
  • Pilot tone squelch circuit prevents noise
  • Switchable RF transmitter output (2, 10 or 30 mW)
  • Rugged enclosure
  • High-contrast OLED display
Pris 1.859,00 kr.

På fjernlager

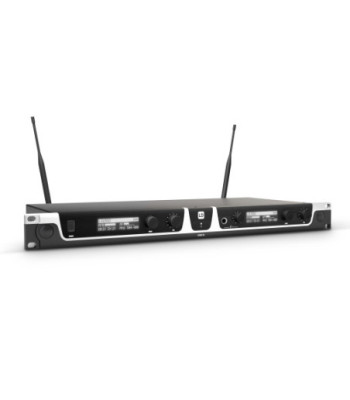

LD Systems Dual receiver
search

LD Systems Dual receiver

U518 R2

We have developed the U500® Series and incorporated some of your suggestions to provide sophisticated and affordable wireless systems that are tailored to suit the needs of professional users. Whether for voice, instruments or as a wireless conference system, sets from the U500® Series will meet your expectations of quality sound, reliability and ease of operation.

With automatic channel scanning, convenient infrared synchronisation, intuitive menu navigation and an easily-readable OLED display featuring battery status indicator and user name assignment, the U500® Series True Diversity UHF radio systems are ready to use in an instant. The selectable transmit power of up to 30 mW and squelch control with pilot tone ensure optimum audio and transmission quality without artefacts and a free-field range of over 100 m.

Interchangeable microphone capsules enable the hand-held transmitter to be tailored to suit different speaking or singing voices. For direct connection to guitar and bass amps, the outputs of the single and double receiver are switchable to instrument level. The wide frequency range of 30 - 16,000 Hz also handles the lowest bass notes.

U500® vocal and instrument sets are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time.

The U500® conference system can be extended to a maximum of 20 terminals and provides effective communication with excellent speech intelligibility.

Pris 3.349,00 kr.

På fjernlager

LD Systems Dynamic handheld microphone
search

LD Systems Dynamic handheld...

Sweet SixTeen MD B5
  • Handheld with dynamic capsule
  • Switchable Gain level (20 dB)
  • Easy handling and setting of the 16 channels
  • Low-battery indicator
  • Up to 10 hours of operation with 2 AA batteries (depending on the type)
  • Soft-touch surface
Pris 1.029,00 kr.

På fjernlager

LD Systems Bodypack transmitter
search

LD Systems Bodypack...

Sweet SixTeen BP B5
  • Belt Pack for Guitar, Lavalier Microphone and Headset with 3-pin Mini XLR connector
  • Easy handling and setting of the 16 channels
  • Separately adjustable high-impedance Guitar level and two Microphone levels for optimal adaptation
  • Low-battery indicator
  • Approx. 12 hours of operating time with 2 AA Mignon batteries
  • Metal clip for professional fastening to belt, pocket, etc.
Pris 969,00 kr.

På fjernlager

LD Systems Dynamic handheld microphone
search

LD Systems Dynamic handheld...

U308 MD

The U300®-series handheld transmitter microphone operates in the frequency bands 823_832 MHz + 863_865 MHz and features a dynamic capsule with cardioid characteristic, 10 mW output and a 55 Hz to 16 KHz frequency response. It runs on two AA batteries with an operating time of over 10 hours. It is conveniently synchronised via infrared with the U308 receiver, and a pilot tone ensures disruption-free operation. The U308 handheld transmitter is easily adjustable for singing and spoken word thanks to the changeable U500®-series-compatible microphone capsule.

Pris 1.149,00 kr.

På fjernlager

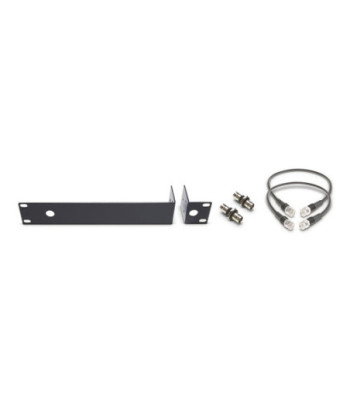

LD Systems Rackmount Kit for U500 Receiver
search

LD Systems Rackmount Kit...

U500 RK

This kit allows mounting a half-rack U500 Receiver into a standard 19_ rack. It comes with two BNC cables and two BNC adapters to front-mount the antennas for improved reception.

Pris 469,00 kr.

På fjernlager

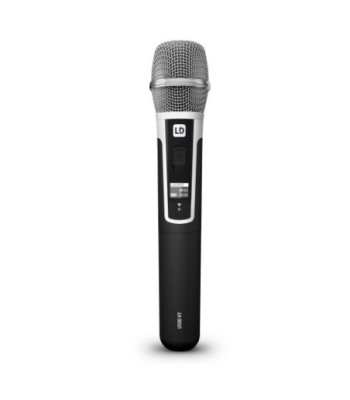

LD Systems Condenser handheld microphone
