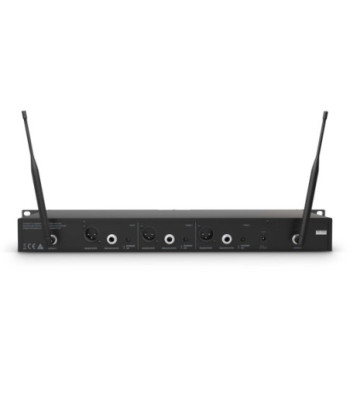

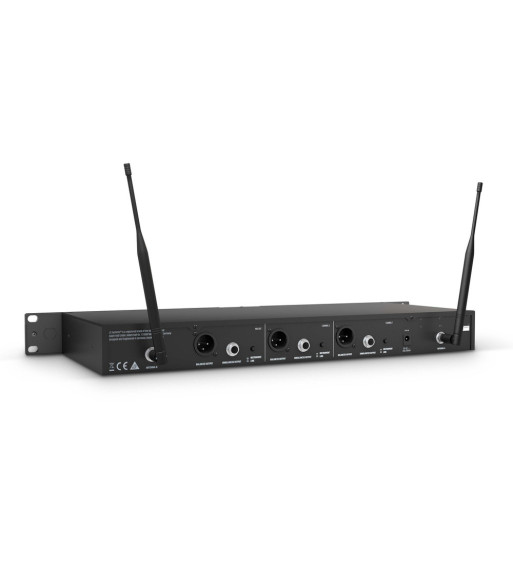

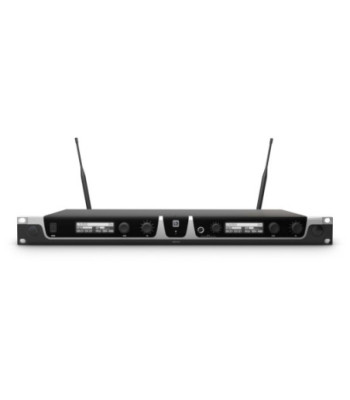

LD Systems Dual receiver

3.349,00 kr.
Inkl. moms
U505 R2

We have developed the U500® Series and incorporated some of your suggestions to provide sophisticated and affordable wireless systems that are tailored to suit the needs of professional users. Whether for voice, instruments or as a wireless conference system, sets from the U500® Series will meet your expectations of quality sound, reliability and ease of operation.

With automatic channel scanning, convenient infrared synchronisation, intuitive menu navigation and an easily-readable OLED display featuring battery status indicator and user name assignment, the U500® Series True Diversity UHF radio systems are ready to use in an instant. The selectable transmit power of up to 30 mW and squelch control with pilot tone ensure optimum audio and transmission quality without artefacts and a free-field range of over 100 m.

Interchangeable microphone capsules enable the hand-held transmitter to be tailored to suit different speaking or singing voices. For direct connection to guitar and bass amps, the outputs of the single and double receiver are switchable to instrument level. The wide frequency range of 30 - 16,000 Hz also handles the lowest bass notes.

U500® vocal and instrument sets are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time.

The U500® conference system can be extended to a maximum of 20 terminals and provides effective communication with excellent speech intelligibility.

Antal
På fjernlager

Ref: LDU505R2

Product typeWireless Microphone System Accessories
TypeReceivers
Typetrue diversity
Modulation TypeFM
Transmission frequency range584 - 608 MHz
Channels2 x 96 (8 groups of 12 channels)
Groups8
Antenna inputs2
Antenna connectorBNC
Frequency response30 - 16000
Noise reductionSquelch
Total Harmonic Distortion (THD)< 0.1 %
Signal-to-noise ratio> 100 dB
Audio output, balanced2 x XLR
Audio output, unbalanced2 x 6.3 mm TS
Audio mix output, balancedXLR
Audio mix output, unbalanced6.3 mm jack
Max. output level+10 dBu
Headphones ouput1
Headphones outputs6.3 mm TRS
Controls2 x volume
ControlsDown
ControlsPower On/Off
ControlsUp
Controlsvolume
Indicators2 x OLED Display
Operating voltage12 V DC, 1000 mA
Width484 mm
Height44 mm
Depth200 mm
Weight2,05 kg
Accessories (included)2 x antenna
Accessories (included)Audio cable
Accessories (included)power adapter
Other featureschannel search function
Other featuresIR frequency synchronisation
Other featuresPilot tone
