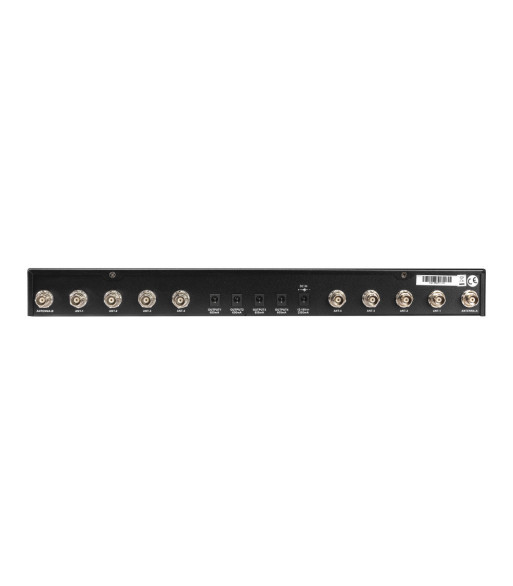

LD Systems 4-way Antenna Split Box

3.579,00 kr.
Inkl. moms
WIN 42 AD

Antenna Split Box 4-way for all types of wireless microphone systems working in a range between 500 and 900 MHz.

Antal
Sidste elementer på lager

Ref: LDWIN42AD

Product typeWireless Microphone System Accessories
TypeAntenna Splitter
Frequency band500 - 900 MHz
Frequency bandwidth400 MHz
Signal gain3 dB
Antenna inputs2
Antenna input connectionBNC
Input impedance50 Ohm(s)
Power supply for antenna booster9 V
Antenna outputs4 x 2
Antenna output connectionBNC
Output impedance50 Ohm(s)
Power supply for radio receiver4 x 12 - 18 V DC V
Power supply12 - 18 V DC, 3A
Operating voltage12 V DC - 18 V DC (100 mA)
Width482 mm
Height44.4 mm
Depth160 mm
Weight4,672 kg
Accessories (included)10 x BNC Kabel, 0.5m
Accessories (included)2 x BNC adapter
Accessories (included)4 x DC cable, 0.5m
Accessories (included)4 x Output 600 mA

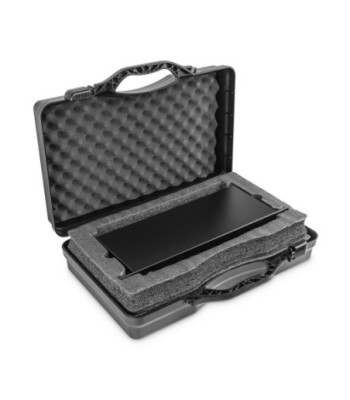

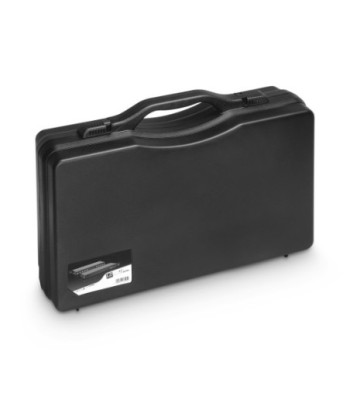

Accessories (included)Plastic case
Accessories (included)Power supply
