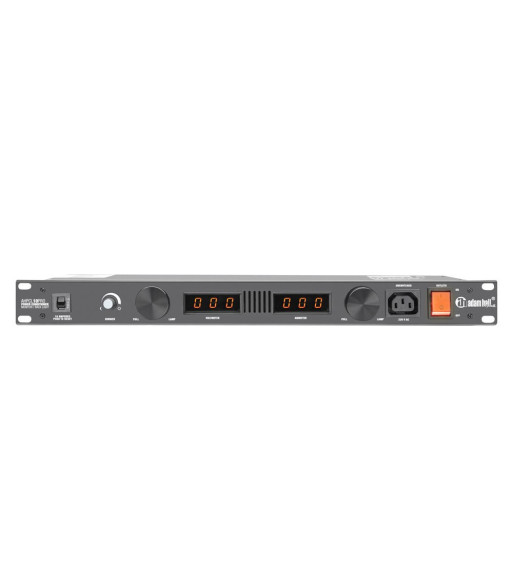

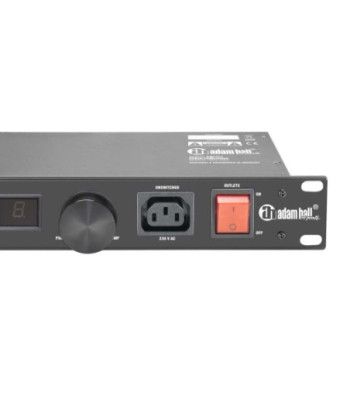

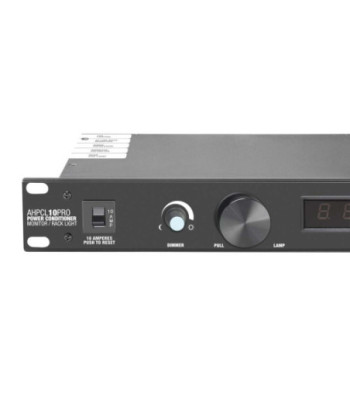

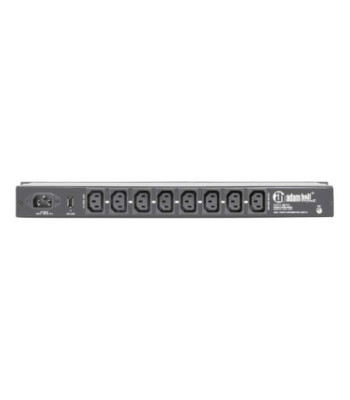

Power Conditioner with voltmeter and ammeter and rack lighting

2.689,00 kr.
Inkl. moms
PCL 10 PRO

In addition to providing a central power supply to racks and installations, the 19" AH Power Conditioner with only 1 ns response time offers effective protection against power surges and spikes. High frequency filters ensure a high interference immunity and prevent interference with connected devices. The 8 female power sockets on the back panel are activated with a large rocker switch with integrated status LED; on the front panel, the AH Power Conditioner also has an unswitched power socket and an easily resettable 10 A automatic circuit breaker. The sturdy construction and the rugged 1U steel housing provide you with a reliable and long-lasting operation in mobile and stationary applications.

The AH PCL 10 PRO has two rack lights, a gooseneck lamp as well as a voltmeter and ammeter with individual, easy-to-read display for monitoring the voltage values and power consumption.

All AH power conditioners are supplied with four IEC connection cables.

Antal
På fjernlager

Ref: AHPCL10PRO

  • Reliable protection against over-voltage and impulse voltage
  • Effective high frequency filter against interference
  • Central power supply with 8 switchable IEC sockets
  • Unswitched convenience socket on the front
  • Resettable circuit breaker on the front panel
  • 2 pull-out LED rack lights with dimmer
  • LED gooseneck lamp with USB connection for the lighting of the rack
  • Volt and ammeter with easy-to-read display

Product type19" rack mains socket strips
Type19" / 1 U
Number of outlets (IEC C14)9
Input voltage230 V
Nominal Impedancemax 10 A
Protection Against Impulse Voltageneutral conductor to earth
Protection Against Impulse Voltageouter conductor to neutral
Protection Against Impulse Voltageouter conductors to protection light
Response Time1 ns
Max. Surge Current6000A (8x20 µs pulse)
Max. Surge Energy70 joules per contact
Noise Cancelling<20 dB, 1.5 MHz-200 MHz
Mains connectorIEC mains cord
Fuse10 A
Width482 mm
Height44.5 mm
Depth190 mm
Weight3,18 kg
Featuresincl. telescopic rack lights and multimeter
Featuresincluding 4 power cords
