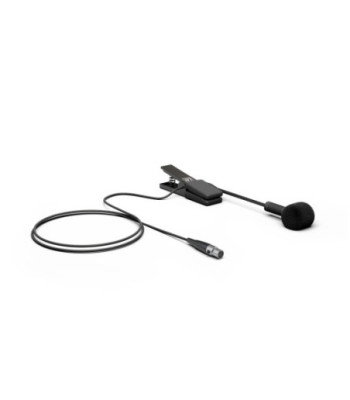

LD Systems Wireless Microphone System with Bodypack and Brass Instrument Microphone - 655 _ 679 MHz.

3.909,00 kr.

Inkl. moms

U506 BPW

Whether you play guitar, bass or a wind instrument, the U500® wireless systems were developed in Germany to bring you affordable professional technology and sound quality. The instrument sets deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience. Selectable transmit power up to 30 mW provides the U500® instrument sets with a free-field range of over 100 metres. They are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time. The Bodypack_s gain control allows attenuation of up to 27 dB to suit both active and passive guitars and basses or high sound pressure wind instruments, thus ensuring a distortion-free audio signal. Even the lowest bass notes are cleanly transmitted, thanks to the frequency response which extends down to 30 Hz. In addition, output impedance and level are switchable on the receiver to facilitate direct connection to guitar and bass amplifiers.

The U500® True Diversity UHF wireless systems feature an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronisation of transmitter and receiver to facilitate easy set-up. High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the Bodypack_s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®_s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.

The U500® Series instrument sets are available in two versions: for wind instruments with a clip-on microphone or for guitars and basses with a double-shielded, low-capacitance cable to protect against interference.

Overview of frequency ranges of instrument sets:

U505 // 584 - 608 MHz // 12 systems can be used simultaneously
U506 // 655 - 679 MHz // 12 systems can be used simultaneously
U508 // 823 - 832 MHz + 863 - 865 MHz // six systems can be used simultaneously
U506 UK (Channel 38) // 606 _ 614 MHz // six systems can be used simultaneously
U518 // 1785 _ 1800 MHz // four systems can be used simultaneously

Antal

På fjernlager

Ref: LDU506BPW

Beskrivelse
Produktoplysninger

True diversity UHF wireless system
Shock-mounted dynamic and condenser microphone capsules
Automatic channel scan
Easy one-touch infrared frequency syncing
Pilot tone squelch circuit prevents noise
Switchable RF transmitter output (2, 10 or 30 mW)
Rugged enclosures
High-contrast OLED display

Product type	Wireless Microphone System Accessories
Product type	Wireless Microphone System Accessories
Product type	Wireless Microphone System Accessories
Product type	Wireless Microphone Systems
Type	Microphones
Type	Bodypack
Transmission frequency range	655 - 679 MHz
Type	true diversity
Type	Wind Instruments
Modulation Type	FM
Transmission frequency range	655 - 679 MHz
Channels	96 (8 groups of 12 channels)
Frequency response	50 - 18.000
Transmission frequency range	655 - 679 MHz
Weight	2,46 kg
Directivity	Cardioid
Groups	8
Channels	96 (8 groups of 12 channels)
Groups	8
Inputs	Mini-XLR (3-pin)
Sensitivity (quiescent voltage @ 1kHz)	- 45 dB +/- 3 dB
Antenna inputs	2
Antenna connector	BNC
Frequency response	30 - 16000
Nominal impedance	250 Ohm(s)
Max. SPL (1% THD @ 1kHz)	133 dB
Signal-to-noise ratio	>90 dB
Frequency response	30 - 16000
Noise reduction	Squelch
Rated HF output power	Variable (2mW, 10mW, 30mW)
Total Harmonic Distortion (THD)	< 0.3 %
Signal-to-noise ratio	> 100 dB
Controls	menu
Controls	Power On/Off
Controls	Set
Indicators	OLED Display
Audio output, balanced	balanced XLR - 12 dBV / 6.3 mm TRS - 18 dBV
Phantom power requierements	5 V
Microphone input	Mini-XLR (3-pin, female)
Audio output, unbalanced	6.3 mm jack
Power supply	2 x AA battery
Cable length	1.5 m
Operating time	>10 h (with alkaline batteries)
Width	65 mm
Accessories (included)	Foam windscreen
Accessories (included)	Phantom power adapter LDPHA
Height	86 mm
Depth	23 mm
Max. output level	+10 dBu
Weight	0,05 kg
Features	70 mm gooseneck
Weight	0,09 kg
Other features	detachable antenna
Other features	Pilot tone squelch, switchable gain
Other features	switchable gain
Other features	switchable RF power
Controls	digital encoder
Controls	Power On/Off
Controls	volume
Indicators	OLED Display
Power supply	12 - 18 V DC
Operating voltage	12 V DC, 500 mA
Width	212 mm
Height	44 mm
Depth	159 mm
Weight	0,85 kg
Accessories (included)	2 x antenna
Accessories (included)	Audio cable
Accessories (included)	power adapter
Other features	channel search function
Other features	IR frequency synchronisation
Other features	Pilot tone

Mærker LD Systems

Reference LDU506BPW

Specifikke referencer
