LD Systems Wireless Microphone System with Bodypack and Brass Instrument Microphone - 863 - 865 MHz+ 823 - 832 MHz

2.149,00 kr.

Inkl. moms

U308 BPW

Developed in Germany, the UHF diversity wireless systems from the U300® series deliver excellent audio performance. They achieve a range of 100 metres in ideal conditions and are available in five frequency bands: 584_608 MHz, 655_679 MHz, 823_832 MHz + 863_865 MHz, 470_490 MHz or 514_542 MHz. Up to six U300® systems can be used simultaneously in each frequency band. Convenient one-touch synchronisation via infrared ensures fast, problem-free wireless connection between the transmitter and receiver, while a squelch with pilot tone ensures disruption-free operation.

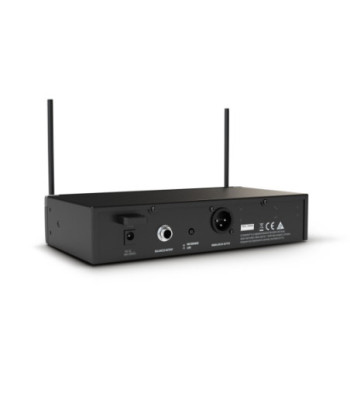

U300® transmitters have a 10 mW output and an operating time of 10 hours on two AA batteries. The handheld microphone_s frequency response ranges from 55 Hz to 16 KHz. With a lower cut-off frequency of 25 Hz, the bodypack is also suitable for transmitting 5-string bass guitars with a deep H string. The bodypack_s input level can be adjusted to both active and passive guitars and basses over three levels. The power switch features a handy standby mode for temporary muting. The U300® receiver is fitted with a bright LCD channel display, an LED chain for displaying audio signal strength and both a balanced XLR and an unbalanced 6.35 mm audio output. The audio output can also be switched to instrument level for directly connecting to guitar and bass amplifiers.

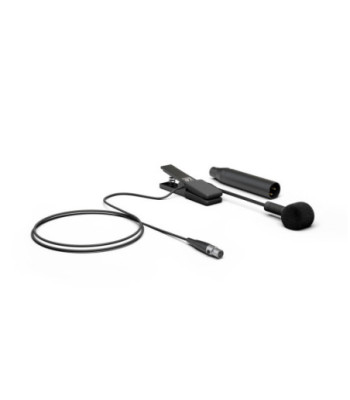

U300®-series wireless systems feature a fresh, modern design and are available as vocal sets with receiver and dynamic handheld microphone with cardioid characteristic, bodypack and headset or bodypack and lavalier microphone. The microphone characteristic can be changed using U500®-series replaceable heads. U300® instrument sets are available with bodypack and clip-on microphone for wind instruments or a double-shielded low-capacitance cable for guitars and basses.

Antal

På fjernlager

Ref: LDU308BPW

Beskrivelse
Produktoplysninger

Diversity UHF wireless system with FM technology
12 selectable channels
100 m transmission range in ideal conditions
Simultaneous operation of up to 6 systems
ASC infrared transmitter and receiver syncing
Pilot tone squelch
10 h transmitter operation on two AA batteries
Metal housing
Optional rackmount kit available as accessory

Product type	Wireless Microphone Systems
Product type	Wireless Microphone System Accessories
Product type	Wireless Microphone System Accessories
Product type	Wireless Microphone System Accessories
Type	Microphones
Type	Receivers

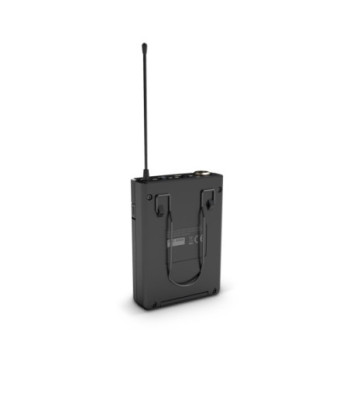

Type	Bodypack
Type	Set
Modulation Type	FM
Transmission frequency range	823 - 832 MHz
Transmission frequency range	863 - 865 MHz
Frequency response	50 - 18.000
Transmission frequency range	823 - 832 MHz
Transmission frequency range	863 - 865 MHz
Transmission frequency range	823 - 832 MHz
Transmission frequency range	863 - 865 MHz
Channels	12
Directivity	Cardioid
Channels	12
Groups	1
Sensitivity (quiescent voltage @ 1kHz)	- 45 dB +/- 3 dB
Groups	1
Antenna inputs	2 x fixed
Inputs	Mini-XLR (Phantom Powered Low-Z / High-Z Instrument)
Frequency response	25 - 16,000
Nominal impedance	250 Ohm(s)
Max. SPL (1% THD @ 1kHz)	133 dB
Signal-to-noise ratio	104 dB
Frequency response	25 - 16,000
Noise reduction	Squelch
Rated HF output power	10 mW
Transmission optimization	Pilot tone
Total Harmonic Distortion (THD)	< 0.3 %
Controls	Gain (3-way switch)
Controls	Power On/Off
Signal-to-noise ratio	104 dB
Audio output, balanced	XLR
Indicators	ASC IR Sync (Green/Amber Blinking LED)
Indicators	Battery (low battery: red)
Indicators	Power LED (Power ON: green)
Phantom power requierements	5 V
Microphone input	Mini-XLR (3-pin, female)
Power supply	2 x AA batteries
Audio output, unbalanced	6.3 mm jack, switchable unbalanced output level
Cable length	1.5 m
Operating time	>10 h
Width	65 mm
Accessories (included)	Foam windscreen
Accessories (included)	Phantom power adapter LDPHA
Weight	0,05 kg
Max. output level	+10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu
Height	91 mm
Features	70 mm gooseneck
Depth	25 mm
Weight	0,085 kg
Controls	5 LED VU meters
Controls	ASC Sync
Controls	Channel down
Controls	Channel up
Controls	Line/Instrument Level
Controls	Power
Controls	volume
Indicators	5 LED VU meters
Indicators	Antenna A/B
Indicators	LC display
Other features	Belt clip
Other features	IR frequency synchronisation
Other features	Pilot tone
Power supply	12 V DC - 18 V DC (500 mA), external power supply
Width	211 mm
Height	43 mm
Depth	120 mm
Weight	0,7 kg
Accessories (included)	2 x AA battery
Accessories (included)	Audio cable
Accessories (included)	Power supply
Other features	IR frequency synchronisation
Weight	0,84 kg

Mærker LD Systems

Reference LDU308BPW
