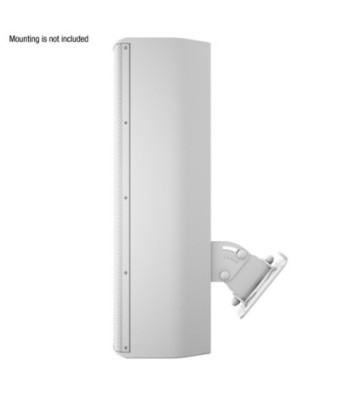

LD Systems 2 x 6.5" passive Installation Speaker white

2.799,00 kr.
Inkl. moms
SAT 262 G2 W

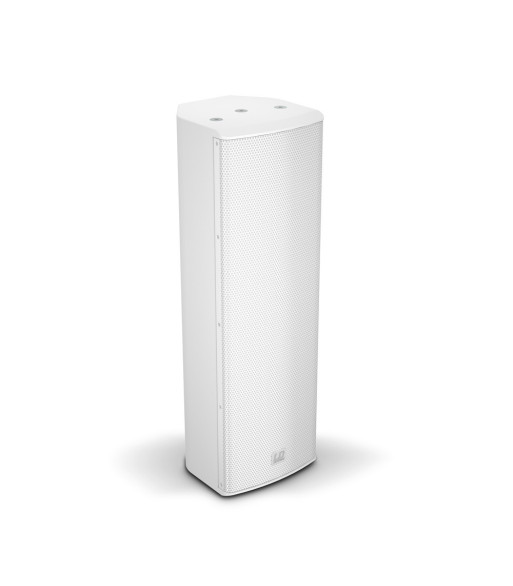

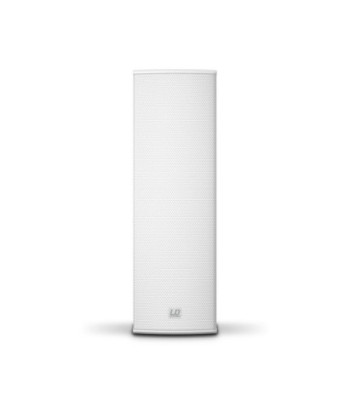

With its slim, streamlined design, the LD Systems SAT 262 G2 is excellently suited for permanent installation and discreet integration in virtually any setting. It features two 6.5" custom woofers and a 1_ Celestion compression driver connected to a rotating CD horn with 80° x 60° dispersion. This makes the passive 2-way speaker ideal for both vertical and horizontal use.

The SAT 262 G2 attains a maximum sound-level pressure of 116 dB over a frequency response curve of 65_19 kHz with a permanent load capacity of 180 watts. The reflex housing is made of 12 mm MDF and is equipped with four M8 mounting holes. A speakON-compatible socket and a terminal block provide input options, while an additional terminal block serves as an output for convenient parallel connection.

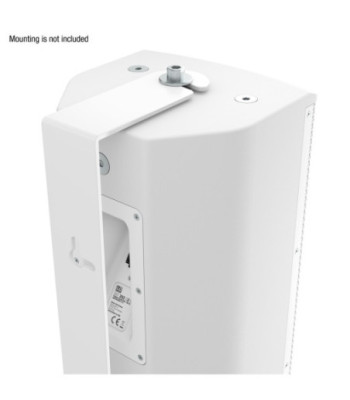

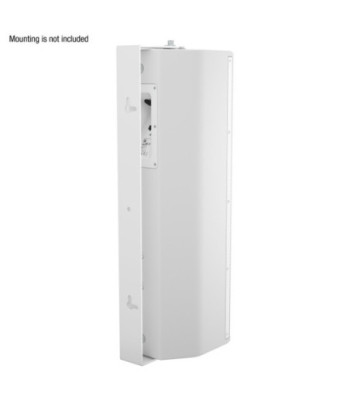

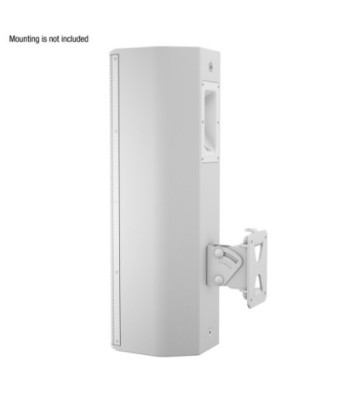

Special wall holders are available as an accessory to facilitate wall mounting. The SAT 262 G2 is available in black (Art. No. LDSAT262G2) or white textured finish (Art. No. LDSAT262G2W).

Antal
På fjernlager

Ref: LDSAT262G2W

  • Passive 2-way bass-reflex installation speaker
  • 180 W permanent load capacity
  • 116 dB maximum sound-level pressure
  • 2 x 6.5" custom woofer and a 1_ Celestion tweeter driver
  • Rotating CD horn with 80° x 60° dispersion
  • For vertical or horizontal use

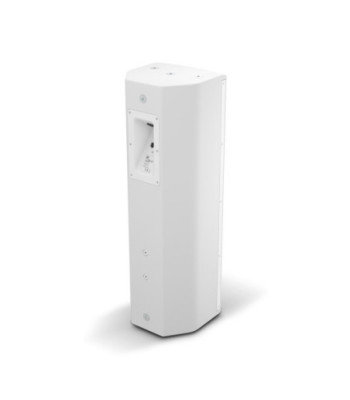

  • speakON-compatible and terminal block input
  • 4 x M8 mounting holes
  • Shock-resistant front grille for optimum speaker protection
  • Extensive range of smart accessories for installation
  • Available in black or white

Product typeInstallation Loudspeakers
TypeWall-mounted Loudspeaker
Low/mid Woofer dimensions2 x 6.5 "
Woofer dimensions (mm)2 x 165.1 mm
Woofer magnetFerrite
Woofer brandCustom-made
Woofer voice coil (mm)38.1 mm
HornCD Horn
HF driver dimensions1 "
HF driver dimention (mm)25.4 mm
HF driver magnetFerrite
HF driver brandCelestion
HF driver voice coil1 "
HF driver voice coil25.4 mm
Dispersion (H x V)80 x 60 °
Load rating (RMS)180 W
Peak power360 W
Frequency response65 - 19000
SPL (1W/1m)93 dB
Max. SPL116 dB
Impedance8 Ohm(s)
Protection circuitsHF Driver
Loudspeaker inputs2
Speaker input connectionsSpeakon compatible
Speaker input connectionsTerminal block
Loudspeaker outputs1
Speaker output connectionsTerminal block
Speakers per amplifier channel (DSP44/45K)4
Cabinet material12 mm MDF
Cabinet surfacetexture paint
Cabinet colourwhite
Cabinet constructionBass Reflex
Width200 mm
Height630 mm
Depth205 mm
Weight9,8 kg
LD Systems
LDSAT262G2W
