LD Systems 6.5" Installation Monitor passive white (pair)

2.289,00 kr.
Inkl. moms
SAT 62 G2 W

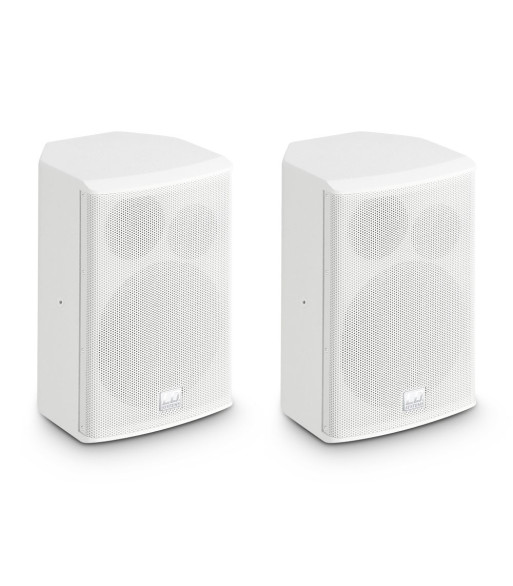

The LD Systems SAT62G2 is an extremely compact, dependable 2-way speaker for numerous installation applications. It blends unobtrusively into practically any surroundings, e.g., in bars and restaurants, retail shops or even at home.

The bass-reflex design with a 6.5" custom woofer and a 1_ silk dome tweeter with wave guide provides for powerful and sonorous reproduction throughout a frequency range of 55 Hz - 20 kHz with a sound-level pressure of up to 108 dB. Thus the SAT62G2 is suitable for full-range operation and as a satellite in conjunction with a subwoofer from the LD installation series. It has a RMS power rating of 80 W. The impedance of 16 ohms permits parallel operation of eight SAT62G2 speakers on 2 ohms.

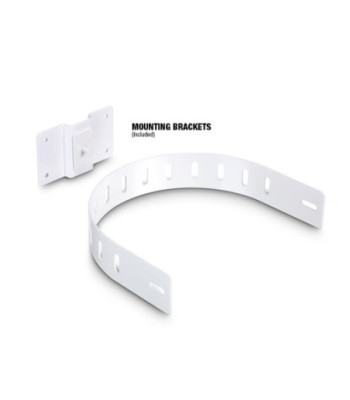

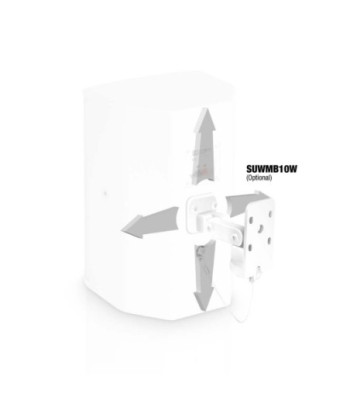

The 12 mm MDF cabinet with a rugged textured coating is available in black and white. The included mounting bracket and M6 rigging points offer extensive possibilities for mounting; a universal joint mount is available as an accessory. It is connected via spring terminals.

Antal
På fjernlager

Ref: LDSAT62G2W

Product typeInstallation Loudspeakers
TypeWall-mounted Loudspeaker
Low/mid Woofer dimensions6.5 "
Woofer dimensions (mm)165 mm
Woofer magnetFerrite
Woofer brandCustom-made
HF driver dimensions1 "
HF driver dimention (mm)25 mm
HF driver magnetFerrite
HF driver brandCustom-made
Dispersion (H x V)60 x 60 °
Load rating (RMS)80 W
Frequency response55 - 20000
SPL (1W/1m)89 dB
Max. SPL108 dB
Impedance16 Ohm(s)
Protection circuitsHF Driver
Loudspeaker inputs1

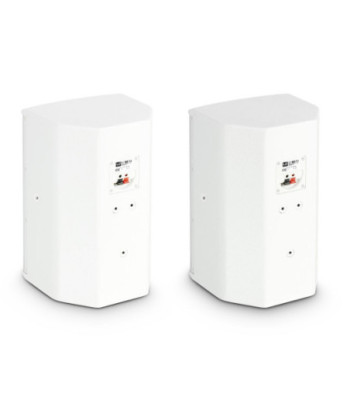

Speaker input connectionsClamp connector
Speakers per amplifier channel (DSP44/45K)8
Cabinet material12 mm MDF
Cabinet surfacetexture paint
Cabinet colourwhite
Cabinet constructionBass Reflex
Width200 mm
Height320 mm
Depth200 mm
Weight8,2 kg
LD Systems
LDSAT62G2W
