. TRS MIDI Cable - Adam Hall® Minijack x MIDI 5-pole - 1.5 m .

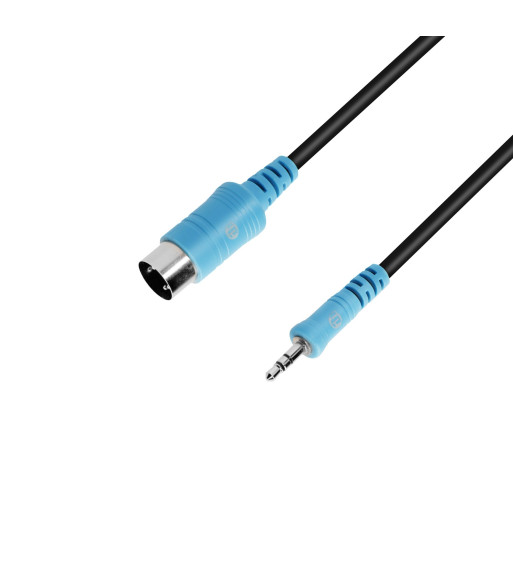

TRS MIDI Cable | Adam Hall® Minijack x MIDI 5-pole | 1.5 m
search
  • TRS MIDI Cable | Adam Hall® Minijack x MIDI 5-pole | 1.5 m

TRS MIDI Cable - Adam Hall® Minijack x MIDI 5-pole - 1.5 m

69,00 kr.
Inkl. moms
3 STAR BW MIDI 0150

With MIDI signal transmission, "only" three poles are used with classic 5-pin plugs. Therefore, the idea was born to equip these devices with the less sensitive TRS (balanced) jack plugs, since three poles can also be used here. In order to be able to connect the devices with the conventional MIDI 5-pin connector to the new devices with jack plugs, we now have adapter cables with both 6.3 mm and 3.5 mm jack plugs. The MIDI Association has defined the new TRS/MIDI Type A standard, which we of course comply with. The cables are available in different lengths.

Antal
På fjernlager

Ref: K3BWMIDI0150

  • Câble TRS/MIDI (type A) MIDI 2.0
  • jack 3,5 mm TRS (mini-jack) vers MIDI male
  • Pour connecter des appareils MIDI avec prise jack et des appareils traditionnels à 5 pôles.
  • TIP=5 | Ring=4 | Sleeve=2
  • Disponible en différentes longueurs 0,6m, 0,9m, 1,5m, 3m

General

Cable length1.5 m
Cable jacketPVC (Polyvinyl chloride)
Cable diameter5 mm
Cable colourBlack

Plugs

Connector type plug 1Midi plug male
Contact material plug 1Nickel plated
Connector type plug 23.5 mm Jack TRS
Contact material plug 2Nickel plated

Line

Conductor materialOxygen-free copper (OFC)
Conductor diameter2 x 0,14 mm²
AWG26

Environmental

Temperature range-20 - 70 °C

Dimensions & weight

Weight73 g
Adam Hall Cables
K3BWMIDI0150
