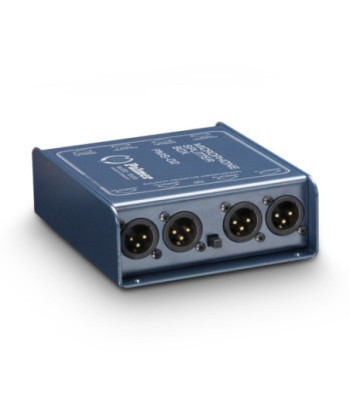

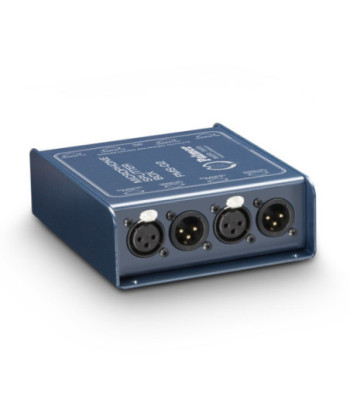

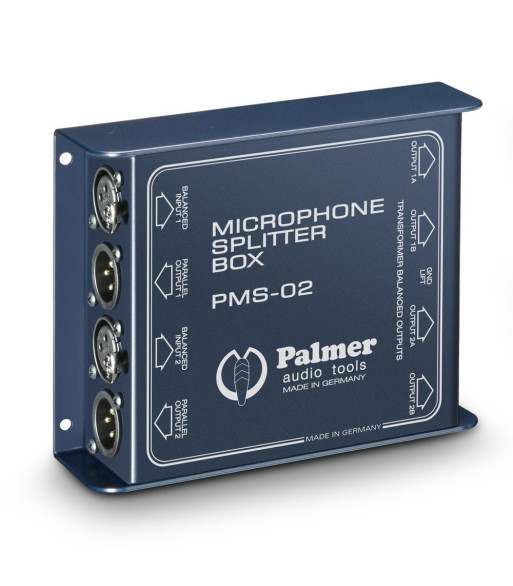

Palmer Dual Channel Microphone Splitter

2.109,00 kr.
Inkl. moms
MS 02

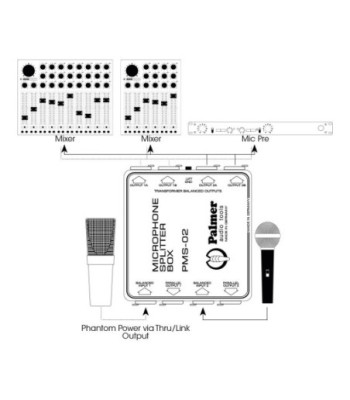

Palmer microphone splitters are used when a signal source has to be sent to multiple inputs. Palmer microphone splitters are used when a signal source has to be sent to multiple inputs. For example, if the microphone signal is to be sent simultaneously to the mixing desk in the hall, the in-house sound system, the monitor mixing desk on stage, and _ if the event is broadcast live _ to the outside broadcast van. This requires a "1 in 3" microphone splitter. Thanks to the use of generously dimensioned audio frequency transformers, the sound is not influenced, but ground loop hum is prevented. The PMS02 can also be used to convert unbalanced signals into balanced signals and vice versa.

Antal
På fjernlager

Ref: PMS02

Product typeSplitters
Typemic split
Split type1 in 2 +1
Channels2
Number of inputs2
Input connectorsXLR
Max. input level+ 20 dB
Number of split-outputs per canal2
THRU outputs/channel1
Max. output level+ 20 dB
Output connectorsXLR
Transformer isolated outputsYes
Controlsground lift
Cabinet materialDie-cast aluminium
Cabinet surfacePowder coated
Width115 mm
Depth140 mm
Height46 mm
Weight0,8 kg
Palmer
PMS02
