. Palmer 8-Channel Microphone Splitter .
Palmer 8-Channel Microphone Splitter
search
  • Palmer 8-Channel Microphone Splitter
  • Palmer 8-Channel Microphone Splitter
  • Palmer 8-Channel Microphone Splitter
  • Palmer 8-Channel Microphone Splitter

Palmer 8-Channel Microphone Splitter

3.669,00 kr.
Inkl. moms
RMMS 8

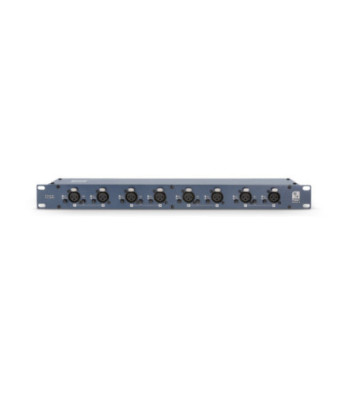

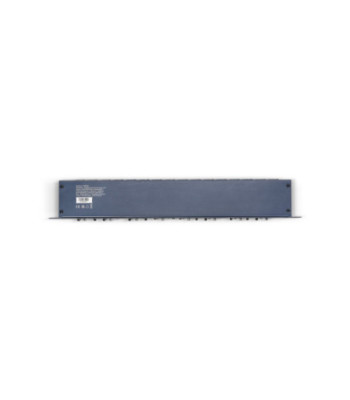

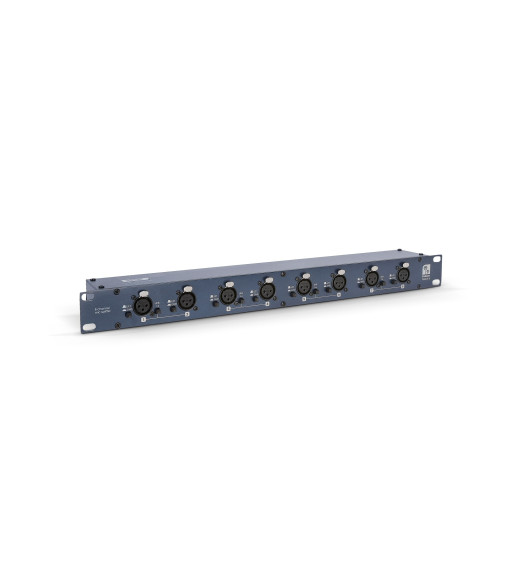

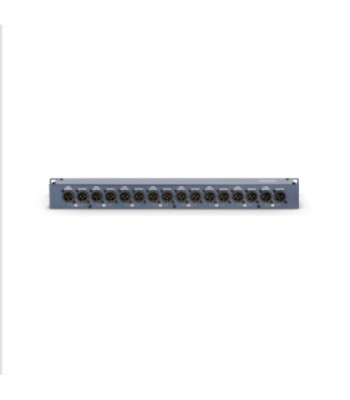

The PRMMS8 is an ultra low noise 8-channel microphone splitter providing a direct output and a transformer isolated output for each balanced XLR input. For extra flexibility, four front panel switches enable channel linking which permits routing a single input signal to multiple outputs feeding FOH, monitor, recording and broadcast mixing consoles, or merging two input signals into a single output. For use with condenser microphones, the direct outputs serve as a path for phantom power. Each channel includes a ground lift switch to eliminate hum and interference caused by ground loops between electronic equipment connected to the PRMMS8.

Antal
På fjernlager

Ref: PRMMS8

  • Single space 8-channel rackmount microphone splitter
  • Transformer isolated and direct outputs
  • Channel pair link switches for doubling outputs or merging inputs
  • Individual ground lift on each channel
  • Suitable for phantom powered condenser microphones and DI boxes

Product typeSplitters
Typemic split
Split type1 in 1 +1
Channels8
Number of inputs1
Input connectorsXLR
Max. input level+5 dBu
Number of split-outputs per canal1
THRU outputs/channel1
Max Output Level+5 dBu
Output connectorsXLR
Transformer isolated outputsYes
Cabinet materialsheet steel
Cabinet surfacePowder coated
Width483 mm
Width19 "
Depth73 mm
Height44.5 mm
Height1 U
Weight1,3 kg
Palmer
PRMMS8

Specifikke referencer

9 andre varer i den samme kategori:

Palmer Press Patch Box 20-Channel
search

Palmer Press Patch Box...

PB 20

A press patch box is a special audio signal splitter, which is developed for the specific requirements of a press conference. Via separate inputs, you can connect either a microphone or a line signal (mixer output).

Also available as a stereo version (PPB20S)

A high-quality input amplifier with balanced earth-free input allows for a level adjustment over a wide range. 20 transformer-balanced XLR/m jacks with individual driver circuits in pairs are available as outputs for video cameras or other sound recording devices.

The nominal output level is +4 dBu at 600 ohms. In addition, channels 19 and 20 are equipped with TRS phone jacks for balanced or unbalanced signals and with RCA sockets (-10 dBu nominal level).

If more than 20 outputs are required, further PPB20 units can be cascaded via a BUS IN/OUT socket on the rear panel. A 10-fold LED chain and an adjustable headphone amplifier are used for signal monitoring (display range -40 to +10 dB, 0 dB display corresponds to +4 dBu output).

The PPB20 has a built-in shielded power pack. An additional DC input allows for battery operation or using an emergency power supply. PW4 is a suitable emergency power supply for two PPB20.

Pris 21.859,00 kr.

På fjernlager

Palmer Passive 2-Channel Line Splitter
search

Palmer Passive 2-Channel...

RIVER peene

Do you want to send a line signal - stereo or dual mono - to multiple devices, without interference such as hum? Then the Palmer peene line splitter box is the right tool for you. It works on a purely passive basis with large isolation transformers, which can even handle high-level signals without distortion. So, for instance, you can send the stereo output signal from the mixer to several power amps, without any ground loops. The Palmer peene also includes a ground-lift switch. In addition to the two transformer-isolated outputs, the peene also directs the input signal on directly via a link out.

The Palmer peene is everything you need to distribute line signals to several devices and is a reliable audio tool with ultra-simple handling and professional sound characteristics.

Pris 2.239,00 kr.

På fjernlager

Palmer Line Splitbox 4 Channel
search

Palmer Line Splitbox 4 Channel

PRMLS

Designed to split line level signals, features similar to PRM-MS with the exception of decoupling resistors to obtain the lowest possible source impedance.

Pris 3.789,00 kr.

På fjernlager

Palmer Press Patch Box 10-Channel
search

Palmer Press Patch Box...

PB 10

The PPB10 is a compact version of the well known and established PPB20 from Palmer. The PPB10 is a 10 channel audio splitter for press conferences and other applications. On a transformer split basis, one line input is split out to ten outputs.

Pris 12.419,00 kr.

På fjernlager

Palmer Dynamic Mic Switcher
search

Palmer Dynamic Mic Switcher

DMS

The Palmer DMS (Dynamic Mic Switcher) routes a microphone signal to two footswitch-selectable outputs.

The Palmer DMS is a passive unit for dynamic microphones only. The switch is instantaneous and is operated via a footswitch.

The DMS provides a wide range of applications :

  • Switch your vocal mic between the FOH and monitor mixing desks to communicate with the monitor mixer or the band on stage.
  • Two different sound configurations: to switch between different effects or sounds on your microphone, e.g. a "telephone effect" or more levels of reverb. Run the outputs of the DMS into two channels of the mixing desk, that you can configure
differently. Now you can freely toggle between them on-stage at any time.
  • You can also use the DMS to route the signal to two rooms or zones and select either one.
Pris 589,00 kr.

På fjernlager

Palmer Press Patch Box 10-Channel Stereo / 20-Channel Mono
search

Palmer Press Patch Box...

PB 20 S

A stereo version of the PPB20 is available in addition to the standard mono version. Instead of a microphone and line input, the stereo version is fitted with two line inputs.

The first line input is distributed to the upper row of outputs (meaning the uneven channels), while the second line input is distributed to the even channels (meaning the lower row of outputs).

Pris 21.859,00 kr.

På fjernlager

Palmer 24-Channel Loudspeaker Switching System
search

Palmer 24-Channel...

Grand Audition MKIIWhen tasting wine, it is important that a comparison is as neutral as possible. The same applies to selecting loudspeakers.To accurately judge sound characteristics, it is essential to listen to different loudspeakers under the same conditions.

Comfortable loudspeaker routing with variable level control for an uncompromising comparison on the sales floor, along with multi-monitor and multi-room applications, are just some of the ways the GrandAudition MK2 can be effectively put to use.

GrandAudition MKII lets you connect 16 individual loudspeakers or eight loudspeaker pairs and up to eight subwoofers - all with balanced line-level XLR connectors and housed in two 19" rack units. Depending on how you want to use GrandAudition MK2, the outputs can be selected either individually or as stereo pairs via an intuitive browser-based app or from the unit itself.

Thereby you can choose to just switch between loudspeakers or freely configure any output combination you want, making it not only the ideal solution for a loudspeaker presentation, but also an excellent choice as a central-control-unit for trade fairs, in laboratories and for multi-room sound distribution.

Source material is supplied from a mixer, CD player or digital audio workstation through two balanced XLR inputs - with volume control, of course. But that's not all. GrandAudition MKII is also equipped with a built-in USB media player on which reference titles can be accessed in WAV, AIF, FLAC, MP3 and OGG data formats.

Highlight of GrandAudition MKII

The browser-based remote can be controlled on a tablet or laptop, offering maximum operating convenience. Ethernet and WLAN-capable devices can be used for complete configuration and control of the unit, including channel naming, media player, and other practical functions.

The ability to individually adjust the level for each output and its quick and noiseless switching mechanism, makes it possible to accurately compare loudspeakers and help you reliably guide your customers to select the right loudspeaker. Routing applications that use different levels for each output can also be set up, and a fully analogue signal path with the highest quality is also of course guaranteed with Palmer.

If necessary, you can cascade units to triple the impressive number of 16 channels plus 8 outputs and thus manage even the largest routing scenarios for monitors, such as in presentation areas. You can also use the subwoofer outputs to connect additional loudspeakers without experiencing any technical drawbacks.

In addition to powered loudspeakers, passive loudspeakers can be incorporated with power amps. Signals can also be distributed over multiple line outputs for other applications, for example, by connecting as many as 24 headphone amplifiers to one source signal - an invaluable aid in conference technology and at trade fairs. And to top it all off, Grand Audition MKII performs remarkably well in measuring laboratories.

In short, GrandAudition MKII, with its clearly arranged features and ease of use, offers comfortable loudspeaker routing with professional sound neutrality.

Pris 9.909,00 kr.

På fjernlager

Palmer Dual Channel Microphone Splitter
search

Palmer Dual Channel...

MS 02

Palmer microphone splitters are used when a signal source has to be sent to multiple inputs. Palmer microphone splitters are used when a signal source has to be sent to multiple inputs. For example, if the microphone signal is to be sent simultaneously to the mixing desk in the hall, the in-house sound system, the monitor mixing desk on stage, and _ if the event is broadcast live _ to the outside broadcast van. This requires a "1 in 3" microphone splitter. Thanks to the use of generously dimensioned audio frequency transformers, the sound is not influenced, but ground loop hum is prevented. The PMS02 can also be used to convert unbalanced signals into balanced signals and vice versa.

Pris 2.109,00 kr.

På fjernlager

Palmer Microphone Splitbox 4 Channel
search

Palmer Microphone Splitbox...

PRMMS

Passive splitter box for microphone signals. One module has 4 channels. Each channel has an input, an output wired in parallel for passthrough of phantom power, and two splitter transformer-isolated outputs. All outputs are also decoupled via resistors.

Pris 3.789,00 kr.

På fjernlager
