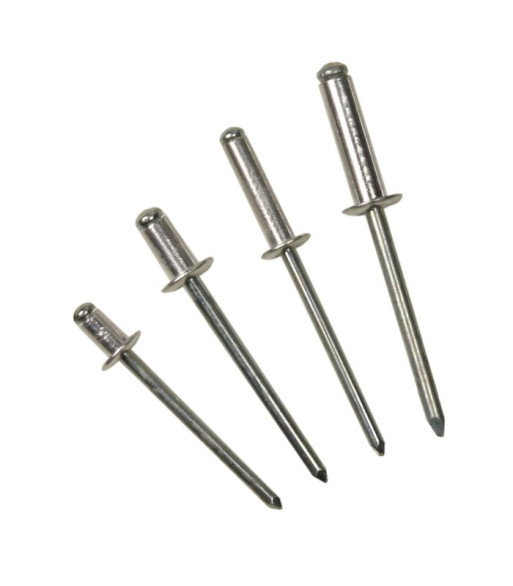

Bralo Pop-Rivet Truss-Head 4.8 x 16 mm
search
  • Bralo Pop-Rivet Truss-Head 4.8 x 16 mm
  • Bralo Pop-Rivet Truss-Head 4.8 x 16 mm

Bralo Pop-Rivet Truss-Head 4.8 x 16 mm

1.389,00 kr.
Inkl. moms
55944816

BLIND RIVETS FOR SOFT MATERIALS (ALUMINIUM)

This fixing ensures a secure and tight connection in soft materials. Therefore also particularly effective when used with materials such as plastic or wood.

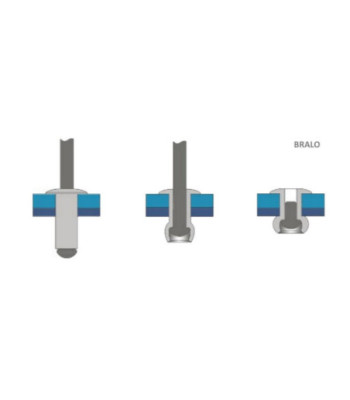

The Bralo for soft materials is a mandrel break blind rivet This rivet is particularly suitable for materials that are soft or brittle, because the mandrel break load is controlled. It provides exceptional clamping force. A 3.5% aluminium-magnesium alloy gives increased tensile and shear forces.

Other rivet versions for special applications and requirements available in the shop.

Antal
På fjernlager

Ref: 55944816

  • Single-sided application (blind rivet)
  • Blind rivets can be inserted from both sides
  • Can be used to connect soft and brittle materials, among other things (plastics, wood, glass fibre, metal to plastic )
  • No damage to the surface after riveting
  • Excellent resistance to temperature changes
  • No loosening by dynamic influences (vibration-resistant)
  • Available in aluminium with a magnesium content of 3.5%
  • High quality, simple and quick installation.
  • Ecological riveting process: no smoke, sparks or steam
  • Simple, lightweight and rapid use.

Product typeFittings
TypeRivets
Rivet diameter4.8 mm
Rivet length16 mm
Head diameter9.5 mm
Head height1.4 mm
Mandrel diameter2.73 mm
Clamping width10.0 - 12,0 mm
Load capacity (sheering strain)2000 N
Tensile load2700 N
Rivet materialAluminium
Rivet alloyAIMg 3.5
Mandrel materialSteel
Mandrel surfacenature
Weight0,003 kg
