. Bralo Pop-Rivet Large-Head 4.8 x 24 mm - 150 stk. .

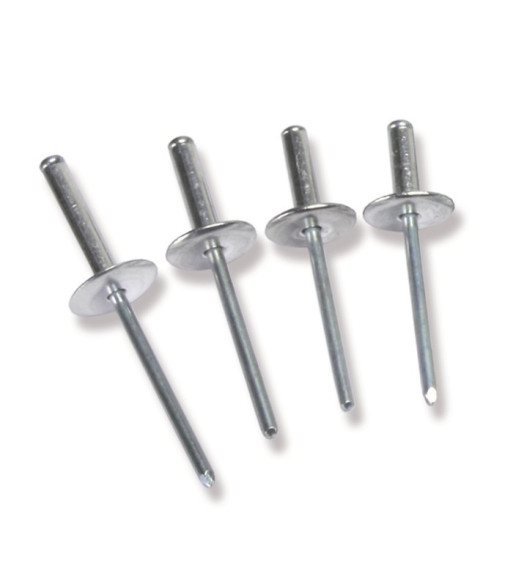

Bralo Pop-Rivet Large-Head 4.8 x 24 mm - 150 stk.
search
  • Bralo Pop-Rivet Large-Head 4.8 x 24 mm - 150 stk.
  • Bralo Pop-Rivet Large-Head 4.8 x 24 mm - 150 stk.

Bralo Pop-Rivet Large-Head 4.8 x 24 mm - 150 stk.

149,00 kr.
Inkl. moms
55934824

Fixing with a large head (setting head) rivet guarantees a secure and robust connection, even in soft materials. This also makes it particularly effective when used with materials such as plastic or wood. The optimised mandrel breakload also ensures a safe break. The generous shape of the large head rivet, compared with the standard flat head, the double bearing surface under the head means extreme durability.

A 3.5% aluminium-magnesium alloy provides increased tensile and shear forces. This connecting element ensures a secure and strong fixing, and is also extremely versatile.

Other versions of rivets for individual applications and requirements are available in the shop.

Antal
På fjernlager

Ref: 55934824

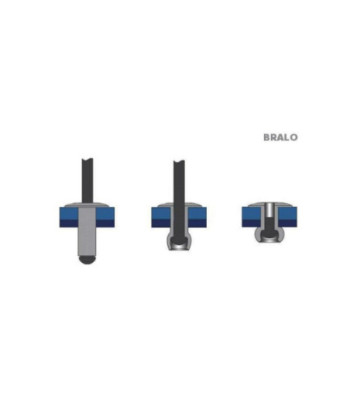

  • One-side installation ( Blind rivet)
  • Extra wide rivet head provides large surface area
  • Ideal deal for riveting soft or brittle materials
  • Covers a lange clamping area
  • It is posible to join different materials such as metal to metal, aluminium,steel,stainless steel,copper or plastik to metal
  • Blind rivets can be installed from both sides
  • No surface damage after riveting
  • Excellent resistence to temperature fluctuations
  • No loosening by dynamic influences ( vibration )
  • High quality rivet sleeve made of aluminium with a high magnesium content of 3.5% and 5.0% thTHIS MEANS HIGH TENSILE AND SHEAR FORCES, EXCELLENT TIGHTENING FORCE AND INCREASED CORROSION RESISTANCE.
  • This means high tensile and shear forces, excellent tightening force and increased corrosion resestence
  • High quality, fast and simple installation
  • Can be used with simple , ergonomic tools
  • Ecolocical riveting: no smoke , sparks or steam

Product typeFittings
TypeRivets
Rivet diameter4.8 mm
Rivet length24 mm
Head diameter16 mm
Head height1.8 mm
Mandrel diameter2.75 mm
Clamping width17.0 - 20,0 mm
Load capacity (sheering strain)2000 N
Tensile load2700 N
Rivet materialAluminium
Rivet alloyAIMg 3.5
Mandrel materialSteel
Mandrel surfacegalvanized
Weight0,003 kg
Bralo
55934824
