LD Systems Portable cardioid column PA system with digital mixer, white

13.509,00 kr.
Inkl. moms
MAUI® 11 G3 MIX W

Compact, powerful and easy to use _ a column PA remains the perfect companion for DJs and smaller bands. The LD Systems MAUI Series represents this all-in-one concept in every detail and offers an unrivalled PA package in terms of sound, design, technology and handling. Set it up, plug it in, and you_re all set!

This applies in particular to the MAUI G3 MIX versions, which feature integrated digital 6-channel mixers. All components are integrated and perfectly matched: mixer, effects, dynamics processing, DSP controller, power amplifiers, and speakers. Wireless remote control via a free MAUI app (available on iOS or Android smartphones and tablets) is also included.

The MAUI 11 G3 MIX delivers a huge, powerful, and precise sound with 730 W RMS power (1,460 Wpeak). It is suitable for various applications, for example as a main PA for singer-songwriters and small bands, a sound system for mobile DJs and formations, or a public address system at weddings, corporate events, and more.

The built-in 6-channel mixer adjusts to the user's preferences through the Easy and Expert Modes. Users can choose between intuitive 3-band EQs or more advanced 5-way full parametric control. A comprehensive effects section provides the full range of reverb, delay and dynamics processing options. Users can wirelessly control all mixer and effects settings through the app.

For stereo applications, two MAUI 11 G3 MIX units can be linked via SysLink®. In this setting, twice the number of mixer channels are available, and with the REMOTE button, all channels can even be controlled from one system.

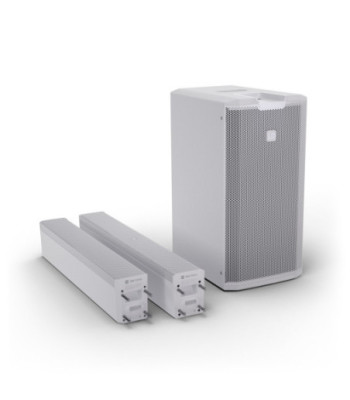

With its sleek and elegant design, the MAUI 11 G3 MIX looks extremely appealing. The two aluminium column elements sit at the front edge of the subwoofer, further enhancing the seamless visual impression. The columns are equipped with 6 x 3.5'' midrange drivers and 2 x 1'' tweeters, providing an even sound distribution with constant horizontal dispersion in combination with the innovative phase plug design. In addition, the curved waveguide _ in front of the tweeters _ carries the high frequencies right to the back of the audience areas.

The LD Systems engineers also took great care with the crossover filter between midrange and tweeter speakers. The aim was to reduce harmonic distortion and interference to make the sound even more transparent, vibrant and powerful. The result speaks for itself: a highly precise reproduction of vocals and instruments across the entire 120° x 30° dispersion field.

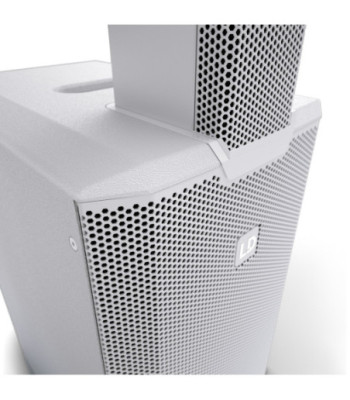

The MAUI 11 G3 MIX columns are designed as cardioid units. This allows for controlled low mids at the front and up to 18 dB of attenuation at the rear, resulting in a clean stage sound. Equipped with two 8'' woofers and four bass reflex ports, the MAUI 11 G3 MIX subwoofer delivers a clear, tight and punchy low end down to 39 Hz. By using a second subwoofer, the bass response can also be increased by up to 6 dB, and it can also be driven in cardioid configuration at the push of a button (Cardioid preset). In addition, the subwoofer_s ultra-durable polyurea coating easily withstands even the toughest demands of life on the road.

The MAUI 11 G3 MIX is a real sound machine, yet will impress solo entertainers, singer/songwriters or small bands daily with its smart features. Transport is as easy as usual, while the hidden multi-pin connections between the elements provide increased stability during assembly. There_s nothing that can knock the MAUI off its feet so easily...

Antal
På fjernlager

Ref: LDMAUI11G3MIXW

  • 1460 W Peak-power and 125 dB max. SPL
  • Powerful bass reproduction with 2 x 8" subwoofer
  • Balanced mids thanks to 6 x 3.5" full-range speakers
  • Precise and silky highs with 2 x 1" high-frequency drivers
  • Digital 6-channel mixer with on-board effects and footswitch input
  • Free App with Easy and Expert mode for remote adjustments via smartphone and tablet (optional)
  • SysLink® for connecting two MAUI G3 MIX to double the mixer channels
  • Cardioid column for controlled low-mid and midrange sound dispersion
  • BEM optimised HF waveguide and midrange phase plugs for homogeneous dispersion
  • Optimised bass-reflex design improves bass response and reduces air flow noise
  • Can be combined with an additional MAUI® 11 G3 subwoofer for increased low end or for cardioid subwoofer setups
  • Dynx® DSP (Gen. 2) for distortion-free sound even at maximum volume
  • Wireless streaming via Bluetooth®
  • Automatic setup detection for quick and easy operation
  • Fast and simple assembly without stands or cables
  • Rugged birch plywood subwoofer housing with durable polyurea-coating
  • Lightweight, powder-coated aluminium column housing

Product typePA Complete Systems
TypePowered
ColorWhite (RAL 9003)
Max. SPL (Peak)125 dB
Frequency response (-10dB)39 Hz - 20000 Hz
Dispersion (H x V)120° x 30 °
Total Height2052 mm
Weight31,5 kg
Features6 channel mixer
FeaturesApp Control (Easy + Expert Mode)
FeaturesBluetooth Audio Streaming
FeaturesCardioid column
FeaturesFootswitch Input
FeaturesOn-board effects + dynamics
FeaturesSysLink® (cascading of 2 systems)

Subwoofer

Woofer dimensions2 x 8 "
Woofer dimensions (mm)2 x 203 mm
Woofer magnetFerrite
Woofer brandCustom-made
Woofer voice coil2 "
Woofer voice coil (mm)50.8 mm
Cabinet constructionBass Reflex
Housing material15 mm birch plywood
Cabinet surfacePolyurea
Dimensions Subwoofer (W x H x D)305 x 607 x 403 mm
Subwoofer weight21,3 kg

Mid/Hi System

Midrange dimensions6 x 3.5 "
Midrange dimensions (mm)6 x 89 mm
Midrange magnetFerrite
Midrange brandCustom-made
Midrange voice coil0.75 "
Midrange voice coil19 mm
Tweeter dimensions2 x 1 "
Tweeter dimensions (mm)2 x 25.4 mm
Tweeter magnetNeodymium
Tweeter brandCustom-made
Tweeter voice coil1 "
Tweeter voice coil (mm)25.4 mm
Wave GuideCD Waveguide
Loudspeaker inputs1
Speaker input connectionsCustom-made multipin
Cabinet construction mid/highPassive Cardioid
Mid/Hi system cabinet materialAluminium
Mid/Hi system cabinet surfacePowder-coated
Mid/Hi system width103 mm
Mid/Hi system height1460 mm
Mid/Hi system depth135 mm
Mid/Hi system weight10.2 kg

Amplifier module (integrated in subwoofer)

AmplifierClass D
System output (RMS)730 W
System output (Peak)1460 W
Protection circuitsDC protection
Protection circuitsMultiband limiter
Protection circuitsShort circuit
Protection circuitsThermal protection
CoolingConvection
ControlsBluetooth HOLD TO LINK button
ControlsChannel Level
ControlsInput type
ControlsMain level
ControlsPage button
ControlsPower On/Off
ControlsRemote
ControlsRotary/push encoder
IndicatorsBluetooth
IndicatorsChannel Level
IndicatorsDisplay
IndicatorsInput type
IndicatorsLimit
Indicatorsmute
IndicatorsPower
IndicatorsProtect (protection circuit engaged)
IndicatorsRemote
IndicatorsSignal
Mains connectorPowerCON
Operating voltage100 V AC - 120 V AC, 50 - 60 Hz
Operating voltage220 V AC - 240 V AC, 50-60 Hz
FuseT 3.15AL / 250 V
Power consumption300 W
Ambient temperature (operating)0 - 40 °C
Relative Humidity< 80% (non-condensing)
Line Inputs4
Line InputsFootswitch
Line Input ConnectorsCombo XLR / TRS
Line Outputs1 System OUT
Line Outputs2 Monitor OUT
Line Output ConnectorsXLR male
Number of speaker outputs1
Loudspeaker Output ConnectorsCustom-made multipin
Other Connections1 RJ45 SysLink® Port
Bluetooth StandardA2DP
Bluetooth version4.2
Bluetooth Audio DecoderSBC

DSP characteristics

Bit depth AD/DA converter24 bit
Sampling frequency48 kHz
LD Systems
LDMAUI11G3MIXW
