LD Systems Active 2 x 8" 2-way bass-reflex PA Loudspeaker

7.169,00 kr.
Inkl. moms
STINGER 28 A G3

This highly professional 2-way active system is designed for absolute, long-term reliability. With its rugged bass reflex housing and finely tuned, user-friendly presets, it is suitable for use as a full-range speaker, satellite or monitor. The STINGER® 28 A G3 is powered by a highly efficient Class-D amplifier with a powerful 500-watt continuous output. Its two specially developed 8" woofers and a BMS tweeter driver achieve a powerful bass response and fresh, natural trebles. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflection from floors and ceilings and prevents sidelobe levels, thus achieving controlled and homogeneous dispersion. Situated directly in front of the two 8_ woofers, phase plugs ensure that midrange efficiency is increased and harmonic distortion above the crossover frequency is reduced.

LD Systems_ proprietary DynX® DSP technology means that the STINGER® 28 A G3 delivers perfect performance with maximum clarity and power under all conditions. The signal processing of the crossover function and the multi-band limiter achieve an optimal runtime and high freedom from distortion. Designed as an all-around workhorse, the housing of the speaker is made of robust birch plywood. An extremely resilient coating of polyurea offers exceptional robustness and durability. The features include a steel front grille, a dual-tilt stand attachment, flight points and ergonomic handles. The STINGER® 28 A G3 is a good value and attractive solution for professional sound systems, with extensive accessories that support usage on the stage and in fixed installations.

Antal
På fjernlager

Ref: LDEB282AG3

  • Active 2 x 8" 2-way bass-reflex PA speaker
  • 131 dB max. SPL and 500-watt RMS performance with a highly-efficient digital amplifier
  • Perfect all-rounder for full-range, satellite and monitor applications
  • Practical presets for fast and user-specific frequency tuning
  • Homogeneous dispersion pattern thanks to a BEM-optimised tweeter wave guide
  • Two 8" custom woofers and BMS tweeter driver
  • Distortion-free sound at even maximum volumes, thanks to DynX® DSP technology
  • 2 line/mic input channels with individual gain controllers plus mono mix output
  • Birch plywood housing with ultra-robust polyurea coating and M10 rigging points
  • Shock-resistant front grille for optimum speaker protection

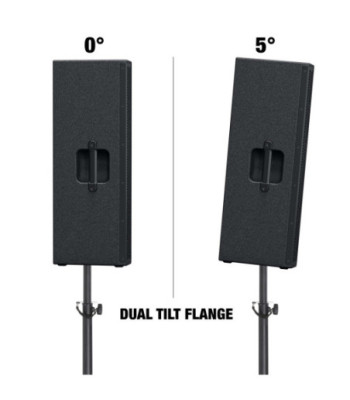

  • 36 mm dual tilt stand attachment with 0° and 5° tilt angle
  • Extensive and smart accessories for installation and transport

Product typePA loudspeaker
TypePowered
Low/mid Woofer dimensions2 x 8 "
Woofer dimensions (mm)2 x 203.2 mm
Woofer magnetFerrite
Woofer brandCustom-made
Woofer voice coil2 "
Woofer voice coil (mm)50.8 mm
HornBEM optimized CD Horn
HF driver dimensions1 "
HF driver dimention (mm)25.4 mm
HF driver magnetFerrite
HF driver brandBMS
HF driver voice coil1 "
HF driver voice coil25.4 mm
AmplifierClass D
Dispersion (H x V)90 x 50 °
System Power (RMS)500 W
Peak power1000 W
Frequency response58 - 20000
Max. SPL (Peak)131 dB
Protection circuitsMultiband limiter
Protection circuitsover voltage
Protection circuitsover-current
Protection circuitsthermal overload
Input sensitivity-5 dBu
Controls2 x gain
Controls2 x Mic/Line
ControlsMode
IndicatorsLimit
IndicatorsMode
IndicatorsOn
IndicatorsProtect (protection circuit engaged)
IndicatorsSignal
Line inputs2
Line input connectors6.3 mm jack
Line input connectorsXLR
Line outputs1
Line output connectorsXLR
Power supply100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching)
Operating Temperature0 - 40 °C
Relative Humidity< 80% (non-condensing)
Cabinet material12 mm Plywood
Cabinet surfacePolyurea
Cabinet constructionBass Reflex
Width270 mm
Height756 mm
Depth290 mm
Weight20,5 kg
LD Systems
LDEB282AG3
