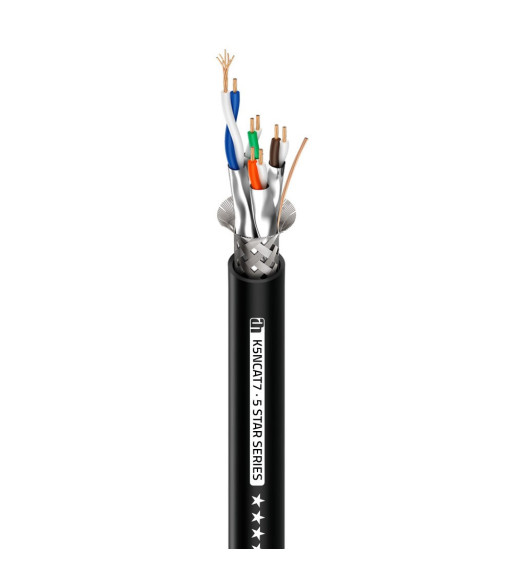

Network Cable Cat.7a (S/FTP) with PUR jacket - Made in EU - 100 meter

4.079,00 kr.

Inkl. moms

5 STAR NETWORK CAT7A

Our extra flexible Cat.7a cable from the 5 STAR SERIES is perfect for Ethernet, digital audio, broadcast or DMX 512 systems. This cable allows high performance with a narrow diameter. The special made PUR jacket is particularly durable and suitable for extreme conditions. With its bending cycles of up to one million times it is well suited for tough everyday use.

The individual wire pairs can be assembled on any standard RJ-45 as well as soldered on any XLR. They are made of high quality oxygen-free-copper (OFC) and have a cross-section of 0.14 mm².

For all of you who are looking for the best possible Cat.7 cable, you have most likely just found it here.

Antal

På fjernlager

Ref: K5NCAT7

Beskrivelse
Produktoplysninger

Cables from our 5 STAR SERIES are made in EU
Packaging unit: 100 m on drum
High-end Cat.7a cable with individually shielded twisted pairs (S/FTP)
Thanks to its PUR jacket, the line is particularly restistant to mechanical stress and can withstand several million bending cycles
Especially excellent suitable for ethernet, digital audio or broadcast

General

Cable length	100 m
Cable jacket	PUR (Polyurethane)
Cable diameter	6.3 mm
Cable colour	Black

Line

CAT standard	Cat.7a
Conductor material	Oxygen-free copper (OFC)
Conductor diameter	4 x 2 x 0,14 mm²
AWG	26
Conductor impedance/km	100 Ohm
Shielding structure	S/FTP

Dimensions & weight

Weight

136 g

Mærker Adam Hall Cables

Reference K5NCAT7

Specifikke referencer
