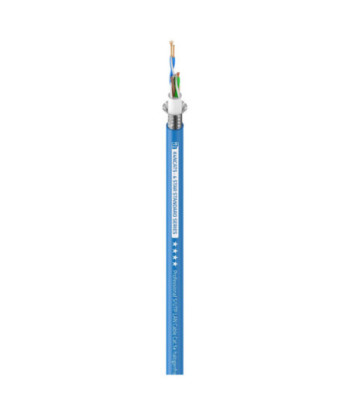

Network Cable - Cat.5e (S/UTP) halogenfree - 100 m - 100 meter

2.199,00 kr.
Inkl. moms
4 STAR NETWORK CAT5E

The professional Cat.5e Ethernet LAN cable K4NCAT5 from our 4 Star "Standard" series, can be used for transmissions of up to 70 m without impairing the bandwidth or due to crosstalk. Cat.5e supports Ethernet, Fast Ethernet and Gigabit Ethernet speeds. The K4NCAT5 is designed for 350 MHz, which means it supports a higher bandwidth than Cat.5.

Antal
På fjernlager

Ref: K4NCAT5

  • Professional Network Cable from our 4 STAR "Standard" SERIES
  • Packing unit: 100 m in one piece

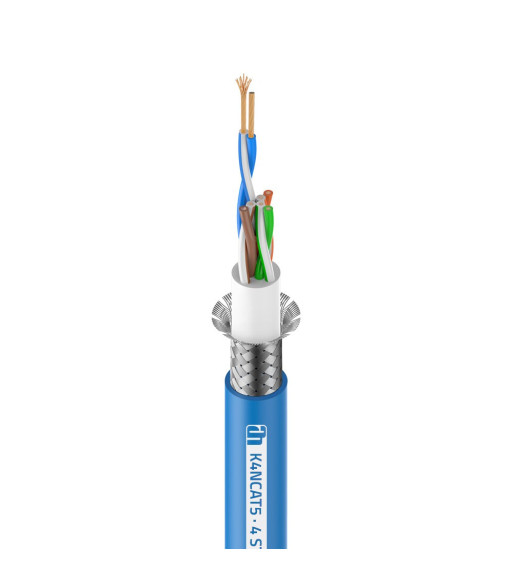

  • Total braided shield with four twisted wire pairs (S/UTP)
  • Robust and flame-retardant TPU jacket (halogen-free)
  • EtherSound compatible up to 70 m

Product typeBulk Cable
TypeNetwork Cable
Colorblue
Overall diameter6.4 mm
Material characteristicsHalogen-free
AWG26
Center conductor cross section0.15 mm²
Number of internal conductors4 x 2
Center conductor construction19 x 0.1 mm
ShieldTin-plated copper braided shield
Shielding Structure128 x 0,1 mm
Shielding factor90%
Capacitance60 pF/m
Capacity core/shielding110 pF/m
Conductor resistance< 85 ohm/km
insulating resistance> 10 Gigaohm / km
Surge Impedance100 Ohm
Temperature range- 40 - 85 °C
Weight0,05 kg
Adam Hall Cables
K4NCAT5
