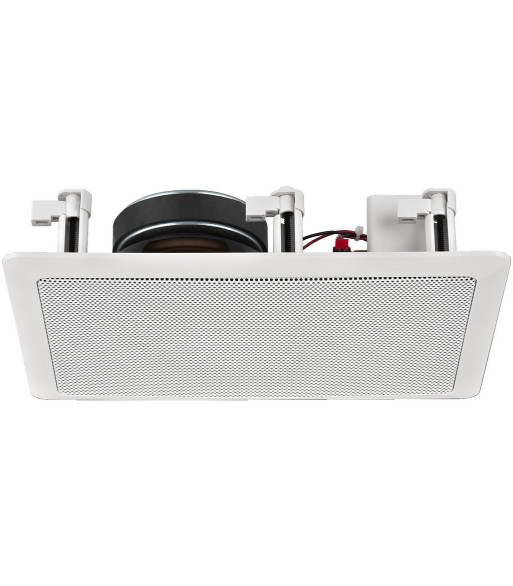

MONACOR HiFi indbygningshøjttaler 80Wmax 8 ohm - SPE-22/WS

1.059,00 kr.
Inkl. moms
Hi-Fi væg- og loftshøjttalere, 8 _
  • 2-vejs med dome tweeter (justerbar i SPE-17/WS, SPE-22/WS og SPE-32/WS)
  • Plastikkabinet med frontgitter i metal
  • Udført i ABS-plast; selvslukkende i overensstemmelse med UL 94V-0
  • Fremragende lydegenskaber
  • Til vægge og lofter med en tykkelse fra 8 til 35 mm



Antal
På fjernlager

Ref: SPE-22/WS

Impedance (Z) 8 _
Line technique -
Frequency range 50-20,000 Hz
Resonant frequency (fs) 51 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating 40 W
Peak music power output 80 W
Sensitivity 88 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal -
Radiation angle, vertical -
Suspension compl. (Cms) -
Moving mass (Mms) -
Mech. Q factor (Qms) -
Electr. Q factor (Qes) -
Total Q factor (Qts) -
Equivalent volume (Vas) -
DC resistance (Re) -
Force factor (BxL) -
Voice coil induct. (Le) -
Voice coil diameter -
Voice coil former -
Linear excursion (XMAX) -
Eff. cone area (Sd) -
Magnet weight -
Magnet diameter -

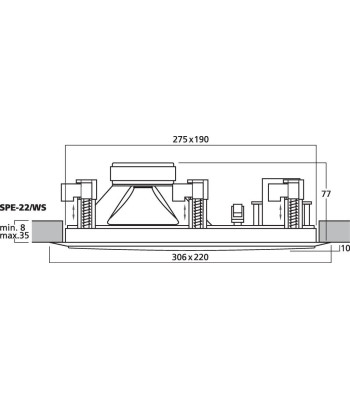

Mounting cutout 275 x 190 mm
Mounting depth 77 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions 306 x 220 x 87 mm
Outside diameter -
Width 306 mm
Height 220 mm
Depth 87 mm
Protective class -
Admiss. ambient temp. 0-40 °C
Weight 2 kg
Sales unit 1
Type of speaker 165
SPE-22/WS
