. CC Pro Shop 6 3/4´´ højttaler - SPH-175HQ MONACOR .
6 3/4´´ højttaler - SPH-175HQ MONACOR
search
  • 6 3/4´´ højttaler - SPH-175HQ MONACOR
  • 6 3/4´´ højttaler - SPH-175HQ MONACOR

MONACOR 6 3/4´´ højttaler - SPH-175HQ

669,00 kr.
Inkl. moms

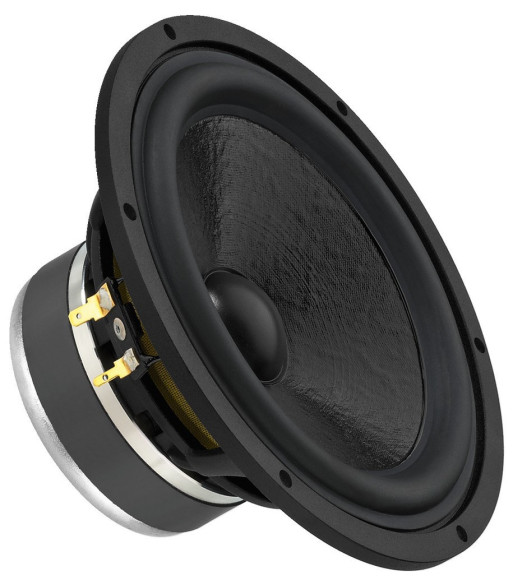

High-quality hi-fi bass-midrange speaker, 70 W, 8 _
  • 175 mm (6 1/2") bass-midrange speaker
  • Further development of the classic speaker SPH-176
  • Diecast basket
  • Rear-ventilated centering spider for minimum mechanical loss
  • Scooped, air-dried, low-resonance paper cone
  • Low-loss rubber surround
  • Wide and linear radiation range
  • Ideal parameters for bass-reflex systems
Klang+Ton 06/2014
"Used in the speaker building concept MonaLisa: usually rather unobtrusive with a harmonised tuning, this speaker can still show an impressive performance, even at very high volume levels and when listening over longer periods of time. It provides a powerful bass and midrange reproduction and features an elegance which can only be realised with high-quality materials."
HOBBY HiFi 03/2014
"An exceptionally high-quality radiation without any cone resonance."
Antal
På fjernlager

Ref: SPH-175HQ

Impedance (Z) 8 _
Line technique -

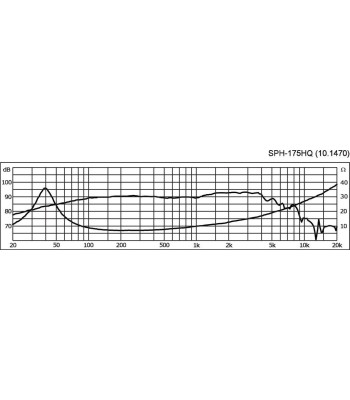

Frequency range f3-4,000 Hz
Resonant frequency (fs) 39 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating 70 W
Peak music power output 120 W
Sensitivity 89 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal
Radiation angle, vertical
Suspension compl. (Cms) 1.2 mm/N
Moving mass (Mms) 13.9 g
Mech. Q factor (Qms) 2.57
Electr. Q factor (Qes) 0.5
Total Q factor (Qts) 0.42
Equivalent volume (Vas) 32.95 l
DC resistance (Re) 6.5 _
Force factor (BxL) 6.4 Tm
Voice coil induct. (Le) 0.71 mH
Voice coil diameter Ø 25 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 5.5 mm
Eff. cone area (Sd) 140 cm2
Magnet weight 450 g
Magnet diameter Ø 90 mm
Mounting cutout Ø 152 mm
Mounting depth 73 mm
Mounting hole diameter Ø 165 mm
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions Ø 175 mm x 79 mm
Outside diameter Ø 175 mm
Width Ø 175 mm
Height -
Depth 79 mm
Protective class
Admiss. ambient temp. 0-40 °C
Weight 1.31 kg
Sales unit 1
Type of speaker
SPH-175HQ
