MONACOR Transportabelt lydanlæg - PAS-254D

11.249,00 kr.
Inkl. moms

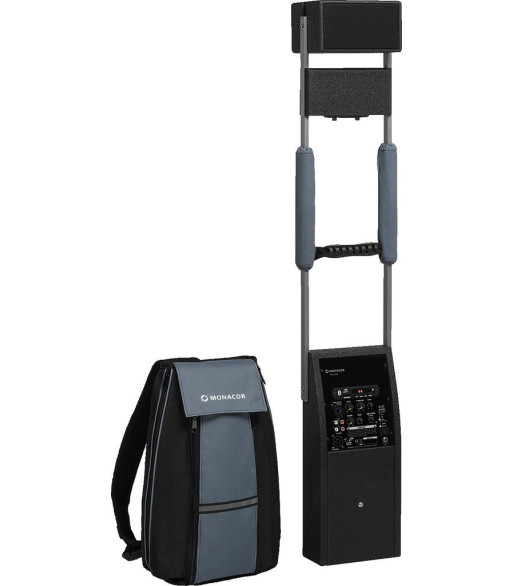

Portable amplifier system,
for processions and other mobile applications.

  • Very comfortable to wear and great mobility due to backpack method
  • 1 speaker with 4 speaker chassis
  • Class D power amplifier
  • Integrated 2-channel multifrequency wireless receiver (TXA-1822MR)
  • Bluetooth receiver for wireless connection of mobile audio devices
  • Adjustable USB/SD card player with connection for external storage media
  • Built-in rechargeable lead gel battery 12 V/7.2 Ah (operating time: up to 7 hours)
  • Compartment for spare rechargeable battery to extend operating time
  • Integrated automatic battery charging
  • Charging socket for supplied charger

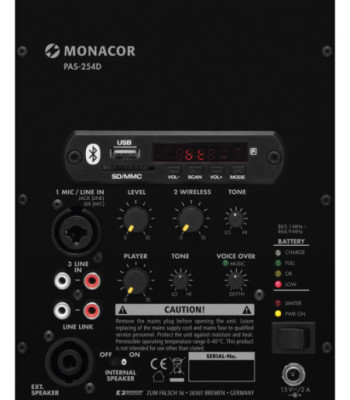

  • 1 input via comb. jack mic (XLR)/line (6.3 mm), gain control, tone control, mic input with 12 V phantom power
  • 1 stereo line input via RCA jacks, gain control, tone control
  • MIX OUT output (RCA)
  • Output for a speaker (min. impedance: 4 _), either additionally or alternatively to existing speakers
  • Adjustable voice over function
  • Limiter function
  • Nylon backpack with storage pockets


Matching microphone transmitters or pocket transmitters are available at option, e.g. TXA-800HT and TXA-800HSE.
Licence-free in the EU.

Antal
På fjernlager

Ref: PAS-254D

Rated power (PRMS) 70 W
Peak output power 80 W
Frequency range 80-20,000 Hz
Carrier frequency 863.1-864.9 MHz
Operating range ? 100 m
Inputs 2 mV (mic),

14 mV (line, jack),

80 mV (line, RCA)
Link 300 mV
THD -
Max. SPL -
Equalizer, bass -
Equalizer, midrange -
Equalizer, treble -
Power supply rech. batt. 12 V/7.2 Ah
Admiss. ambient temp. 0-40 °C
Dimensions Total length: 120 cm
Weight 7.7 kg
Connections 1 x XLR (mic),

1 x 6.3 mm jack (line),

1 x RCA L/R (line in),

1 x RCA L/R (line out),

1 x USB,

1 x SPEAKER
PAS-254D
