. MONACOR 100V forstærker 1x60W - PA-806DAP .
MONACOR 100V forstærker 1x60W - PA-806DAP
search
  • MONACOR 100V forstærker 1x60W - PA-806DAP
  • MONACOR 100V forstærker 1x60W - PA-806DAP
  • MONACOR 100V forstærker 1x60W - PA-806DAP

MONACOR 100V forstærker 1x60W - PA-806DAP

2.909,00 kr.
Inkl. moms

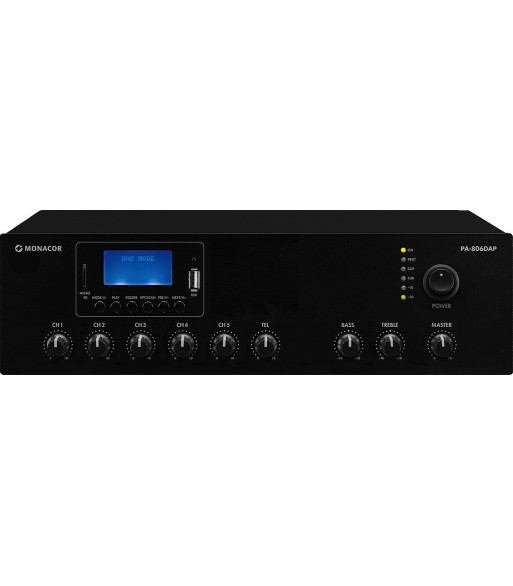

Mono class D PA mixing amplifier,
with integrated MP3 player, FM/DAB+ tuner and Bluetooth.
  • 1 x 60 W
  • Class D concept with high efficiency to cut energy costs
  • Bluetooth version 4.2
  • MP3 player with USB/SD interface, FM/DAB+ radio, LED display, infrared remote control
  • Reception of interference-free 'digital radio' (DAB+)
  • 1 balanced XLR microphone input with 48 V phantom power and priority selection for announcements
  • 2 unbalanced inputs, switchable mic/line
  • 2 unbalanced line inputs
  • 1 TEL input
  • 1 Music-On-Hold output (MOH)
  • Speaker outputs via screw terminals
  • Mute contact via screw terminals
  • 2 line outputs
  • Input level control and output level control
  • 2-way tone control for the output
  • Temperature-controlled fan
  • LEDs for indicating operation, clipping, protect and signal level

Antal
Sidste elementer på lager

Ref: PA-806DAP

Peak output power-
Power rating60 W
Power rating at 2 _-
Power rating at 4 _-
Power rating at 8 _-
Power rating at 16 _-
Power rating at 100 V-
Power rating with 4 _ bridged operation-
Power rating with 8 _ bridged operation-
Output impedance-
Channels1
Zones1
Inputs4.5 mV/600 _ (channel 1),

4.5 mV/120 mV (channels 2-3),

60 mV (channels 4-5)

90 mV (tel.)

Attenuation factor-
Frequency range60-15,000 Hz
Crossover network-
Crossover frequency-
Integrated limiter-
Equalizer bassyes
Equalizer midrange-
Equalizer trebleyes
S/N ratio72 dB (mic, channels 1-3)

85 dB (line, channels 2-5)

Crosstalk attenuation-
THD< 0.5%
Phantom power48 V
Mains voltage_ 230 V
Mains frequency50 Hz
Power consumption, operation160 VA
Power consumption, standby-
Standby current-
Operating voltage (possible alternative)DC 24 V
Power supply (possible alternative)4.2 A
Admiss. ambient temp.0-40 °C
Width320 mm
Height95 mm
Depth245 mm
Rack spaces, RS-
Weight4.5 kg

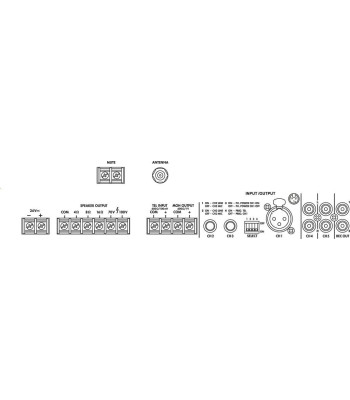

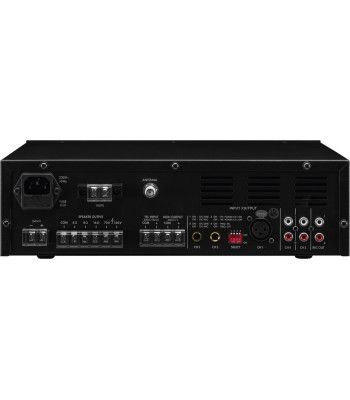

Connections1 x XLR (channel 1),

2 x 6.3 mm jack (channels 2-3),

2 x RCA L/R (channels 4-5),

2 x RCA (record out),

1 x F jack (FM/DAB+),

screw terminals (tel. input, MOH, DC 24 V, speakers, mute)

Packing dimensions (W x H x L)-
Gross weight5.17 kg
Net weight4.48 kg
PA-806DAP
1 Enhed
