. MONACOR 100V matrixforstærker 4x120W - PA-M412 .
MONACOR 100V matrixforstærker 4x120W - PA-M412
search
  • MONACOR 100V matrixforstærker 4x120W - PA-M412
  • MONACOR 100V matrixforstærker 4x120W - PA-M412
  • MONACOR 100V matrixforstærker 4x120W - PA-M412

MONACOR 100V matrixforstærker 4x120W - PA-M412

11.719,00 kr.
Inkl. moms

4-zone PA matrix mixing amplifier

  • 120 W per zone
  • 4 zones, can be controlled individually with 2-way tone control
  • 4 adjustable mic/line inputs with 3-way equalizer and phantom power, to be activated as required
  • 4 adjustable line inputs
  • Talkover (channel 1)
  • Adjustable monitor function
  • 1 connection for zone paging microphone PA-M4RC
  • 4 connections for wall module PA-M1WP
  • 482 mm (19") rack installation

Antal
På fjernlager

Ref: PA-M412

Peak output power 4 x 170 W
Power rating 4 x 120 W
Power rating at 2 _ -
Power rating at 4 _ -
Power rating at 8 _ -
Power rating at 16 _ -
Power rating at 100 V -
Power rating with 4 _ bridged operation -
Power rating with 8 _ bridged operation -
Output impedance -
Channels 8
Zones 4
Inputs 2.5 mV/20 k_ (mic),

2 V/20 k_ (line)
Attenuation factor -
Frequency range 20-20,000 Hz
Crossover network -
Crossover frequency -
Integrated limiter -
Equalizer bass ±12 dB/80 Hz (channels 1-4)

±15 dB/80 Hz (zones 1-4)
Equalizer midrange ±12 dB/2.5 kHz (channels 1-4)
Equalizer treble ±12 dB/12.5 kHz (channels 1-4)

±15 dB/12 kHz (zones 1-4)
S/N ratio > 70 dB
Crosstalk attenuation -
THD < 0.1%
Mains voltage _ 230 V
Mains frequency 50 Hz
Power consumption, operation 860 VA
Power consumption, standby -
Standby current -
Operating voltage (possible alternative) -
Power supply (possible alternative) -
Admiss. ambient temp. 0-40 °C
Width 420 mm
Height 88 mm
Depth 320 mm
Rack spaces, RS 2
Weight 7.5 kg

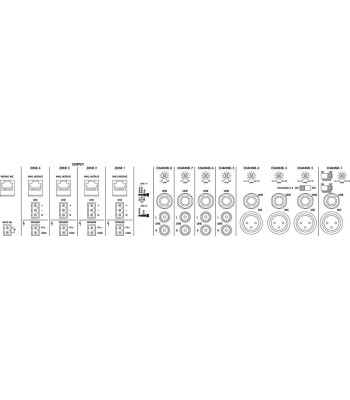

Connections 4 x XLR, bal. (mic 1-4),

4 x 6.3 mm jack (line 1-4),

4 x 6.3 mm jack (line 5-8),

4 x RCA L/R (line 5-8),

1 x RJ45 (push-to-talk microphone),

4 x RJ45 (remote in),

screw terminal (speakers)
PA-M412
