. MONACOR PA subwoofer - SUB-10 .
MONACOR PA subwoofer - SUB-10
search
  • MONACOR PA subwoofer - SUB-10

MONACOR PA subwoofer - SUB-10

3.189,00 kr.
Inkl. moms

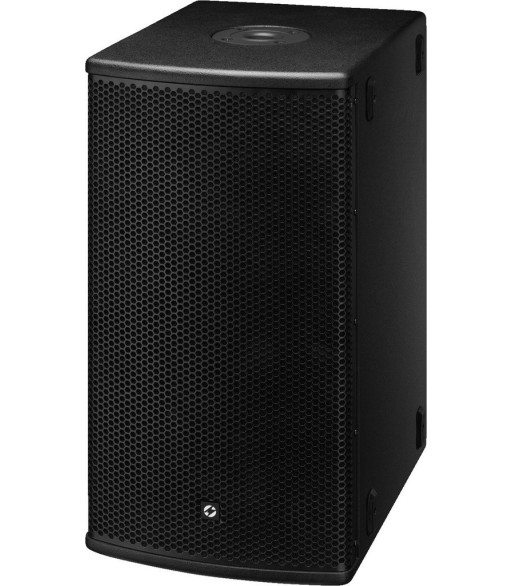

This 25 cm (10") passive subwoofer
has been developed to deliver a powerful bass reproduction from compact cabinets and features a power rating of 500 W max. The band-pass cabinet with its 10" bass speaker of long excursion generates a dry and deep bass. It can be used as subwoofer support for PA systems in restaurants and bars or shops to ensure a rich and powerful sound. Nevertheless, it can also be used as an additional subwoofer for smaller PA speakers and simply be connected in parallel due to the integrated crossover network (low-pass filter at approx. 200 Hz).
Passive subwoofer, 500 W/8 _

  • Band-pass subwoofer with double ventilation
  • 1 x 25 cm (10") top-class woofer
  • Slimline and compact design for upright and horizontal setup
  • High-quality lacquered cabinet made of plywood, front grille with inner lining
  • Integrated crossover network (low-pass) with crossover frequency at 200 Hz
  • 4 x M8 lateral threaded insert as installation aid
  • Speakers connected to the subwoofer in parallel must have a nominal impedance of 8 _ min.
  • Stand sleeve at the top

Antal
På fjernlager

Ref: SUB-10

Active/passive passive
Transmission method cable
Total output power -
Power rating (RMS) -
Total power rating 500 W
Power rating (RMS) 250 W
Impedance 8 _
Frequency range 40-200 Hz
THD -
S/N ratio -
Input signal -
System band-pass subwoofer
Full range speaker -
Bass speaker 1 x 25 cm (10")
Midrange speaker -
Tweeter -
Number of speakers 1
Speaker size 25 cm (10")
Sensitivity 92 dB/W/m
Max. rated SPL 116 dB
Radiation angle, horizontal -
Radiation angle, vertical -
Features -
Housing material multiplex
Colour black
Mounting device threaded inserts
Protected against ball rebound -
Protection class -
Admiss. ambient temp. 0-40 °C
Power supply -
Dimensions 300 x 610 x 410 mm
Width 300 mm
Height 610 mm
Depth 410 mm
Weight 19.84 kg
Inputs 1 x NEUTRIK SPEAKON,

speaker terminals
Outputs -
Replacement voice coil -
Other features -
Accessories -
SUB-10
