IMG STAGELINE Trådløst transmissionssæt - FLY-16SET
search
  • IMG STAGELINE Trådløst transmissionssæt - FLY-16SET

IMG STAGELINE Trådløst transmissionssæt - FLY-16SET

1.339,00 kr.
Inkl. moms

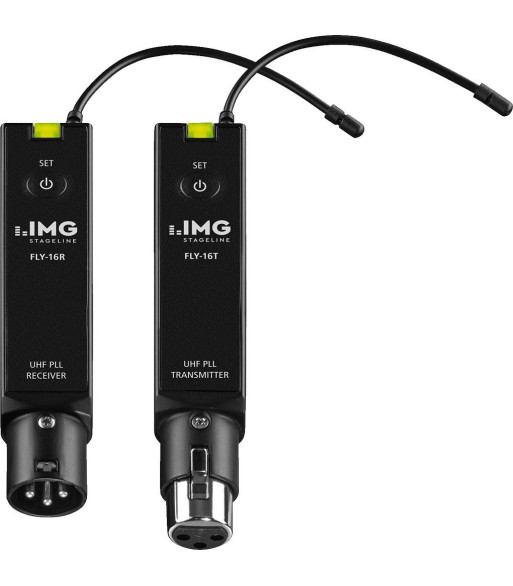

16-channel wireless PA audio transmission set,
with UHF PLL technology.

  • Consisting of 16-channel wireless PA audio transmitter FLY-16T and 16-channel wireless PA audio receiver FLY-16R
  • For analogue wireless transmission of line audio signals in PA systems
  • Frequency range: 823-832 MHz
  • 16 pre-programmed channels, selectable
  • Up to 8 intermodulation-free channels
  • Audio transmission range: 30-17,000 Hz
  • Compact size
  • For further specifications, please refer to the individual items


There are restrictions or requirements within the EU!
Please read the notes regarding wireless systems in the section _IMPORTANT INFORMATION_!
tools4music 01/2019
_An elegant solution for an irritating problem. Both time advantage and benefits for practical application are huge, especially when controlling the delay lines or for multi-room applications._
delamar.de
_Simple transmission path for line signals. The FLY-16SET from IMG STAGELINE is a very compact, lightweight and easy-to-use wireless system for line signals which provides a perfect sound. The operation is licence-free in the EU. During our tests, the wireless connection has always been reliable and interference-free. The power is provided either via standard batteries AA size or via the supplied micro USB cable._
SOUNDCHECK 02/2019
_Wireless system for audio line signals which is suitable for general applications. The signal quality absolutely meets professional requirements and can also be used for the transmission of master signals._
OKEY 148
_Sometimes, it is the little things that make a musician's life a lot easier. During the test, the FLY-16 has really become one of our favourites. It is both practical and reliable [...] highly convenient systems. Even our active mobile phones did not interfere with the signal paths._

Antal
På fjernlager

Ref: FLY-16SET

General information -
Description 16-channel wireless PA audio receiver
Carrier frequency range 823-832 MHz
Audio frequency range 30-17,000 Hz
Channels 16
THD 0.3%
Dynamic range -
RF S/N ratio -
Operating time -
Admiss. ambient temp. 0-40 °C
Power supply -
Dimensions -
Total weight -
Connections -
Specifications transmitter
Transmitting power 10 mW
Operating range approx. 90 m
Power supply transmitter 1 x 1.5 V batt. AA size,

DC 5 V/150 mA via micro USB jack
Width transmitter 22 mm
Height transmitter 23 mm
Depth transmitter 116 mm
Weight transmitter 54 g
Connections transmitter 3-pole XLR jack
Specifications receiver -
Audio signal receiver -
Power supply receiver 1 x 1.5 V batt. AA size,

DC  5 V/150 mA via micro USB jack
Width receiver 22 mm
Height receiver 23 mm
Depth receiver 102 mm
Weight receiver 25 g
Connections receiver 3-pole XLR plug
IMG STAGELINE
FLY-16SET
